Fuel Rail Assembly

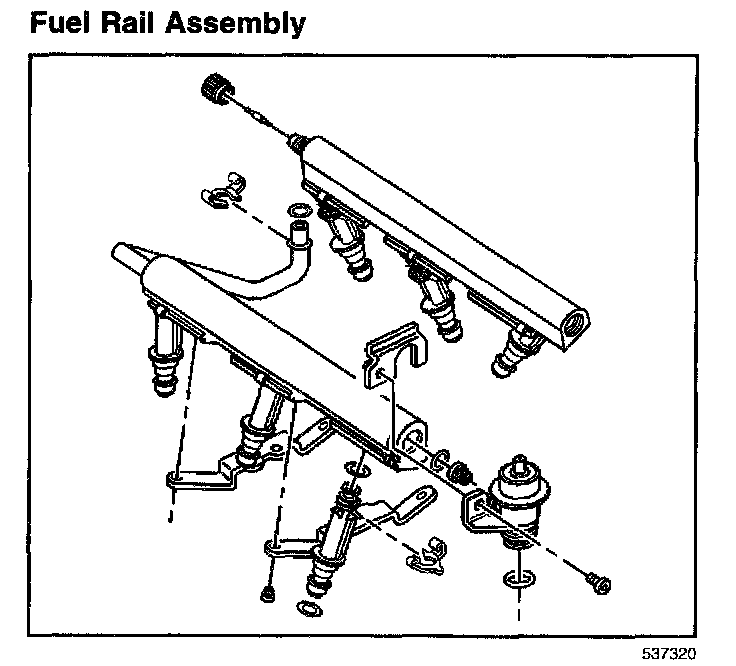

Fuel Rail Assembly:
The
fuel rail assembly attaches to the engine intake manifold. The fuel rail assembly performs the following functions:
^
Positions the injectors in the intake manifold
^
Distributes fuel evenly to the injectors
^
Integrates the fuel pressure regulator with the fuel metering system
