Torque Converter Clutch Pulse Width Modulation Solenoid

Torque Converter Clutch Pulse Width Modulation (TCC PWM) Solenoid Replacement
Removal Procedure





1. Remove the case side cover.
2. Disconnect the Torque Converter Clutch (TCC) Pulse Width Modulation (PWM) solenoid electrical connector.

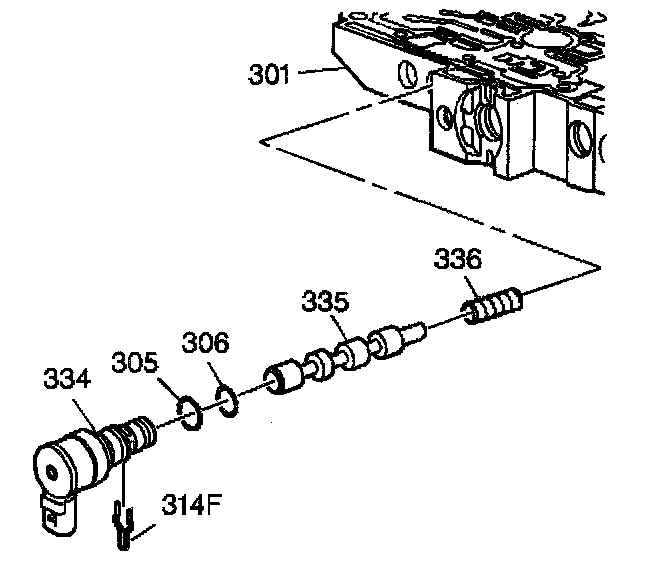

3. Remove the TCC PWM solenoid (334).

Installation Procedure





1. Install the TCC PWM solenoid (334).
2. Connect the TCC PWM electrical connector.
3. Install the case side cover.
