Lumbar Switch Replacement



Lumbar Switch Replacement

Removal Procedure





1. Remove the outer seat cushion trim panel. Refer to Trim Panel Replacement - Front Seat (Trim Panel Replacement - Front Seat) .

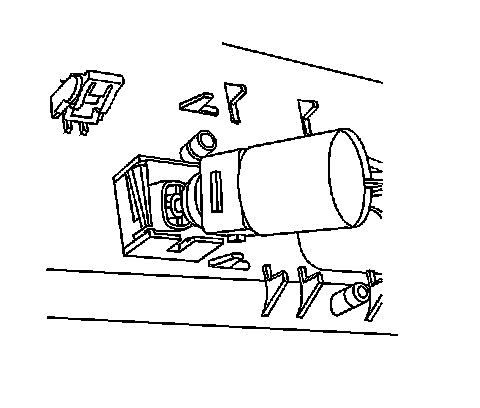

2. Use a small, flat-bladed tool to remove the lumbar control switch from the trim panel.




3. Disconnect the electrical connector (1) from the seat harness.
4. Remove the switch from the seat.



Installation Procedure





1. Position the lumbar control switch to the seat.
2. Connect the electrical connector (1) to the seat harness.




3. Press the switch into the mount on the trim panel.
4. Install the trim panel. Refer to Trim Panel Replacement - Front Seat (Trim Panel Replacement - Front Seat) .
