Window Run Channel Replacement - Front Door



Window Run Channel Replacement - Front Door

Removal Procedure





1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door (Service and Repair) .
2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door Service and Repair.

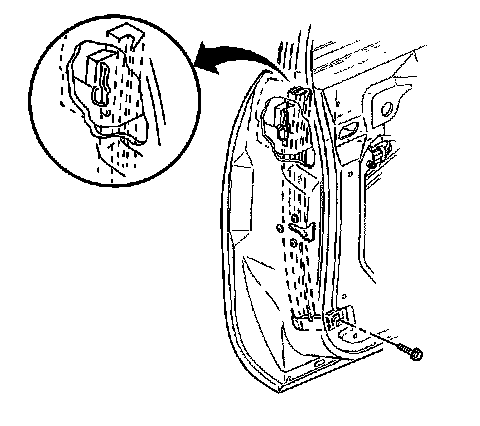

3. Remove the screw from the front door window run channel.
4. Pull down to unclip the top edge of the window run channel.
5. Remove the front door window run channel from the front door.



Installation Procedure





1. Install the front window run channel to the front door.
2. Slide the channel up to engage the clip at the top edge of the window run channel.

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the screws to the front window run channel.

Tighten the front window run channel screw to 1.5 N.m (13 lb in).

4. Install the front door water deflector. Refer to Water Deflector Replacement - Front Door Service and Repair.
5. Install the front door trim panel. Refer to Trim Panel Replacement - Side Front Door (Service and Repair) .
