Seat Replacement - Bucket

Seat Replacement - Bucket

Removal Procedure





1. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 7 or SIR Disabling and Enabling Zone 9 .
2. Position the front bucket seat to the mid-position with the back in the full up position.

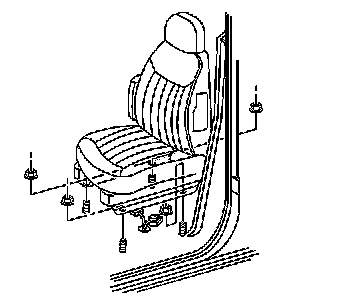

3. Remove the nuts from the front seat adjuster at the floor pan.
4. Disconnect the electrical connectors from the seat.
5. Remove the seat from the vehicle.



Installation Procedure





1. Install the front seat to the studs on the floor pan.
2. Connect the seat electrical connectors.

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the nuts to the seat floor pan studs.

Tighten the front bucket seat adjuster-to-floor pan nuts to 50 N.m (37 lb ft).
Inspect the front bucket seat for proper operation and adjustment.
4. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 7 or SIR Disabling and Enabling Zone 9 .
