Vehicle Communication Interface Module (Vcim)

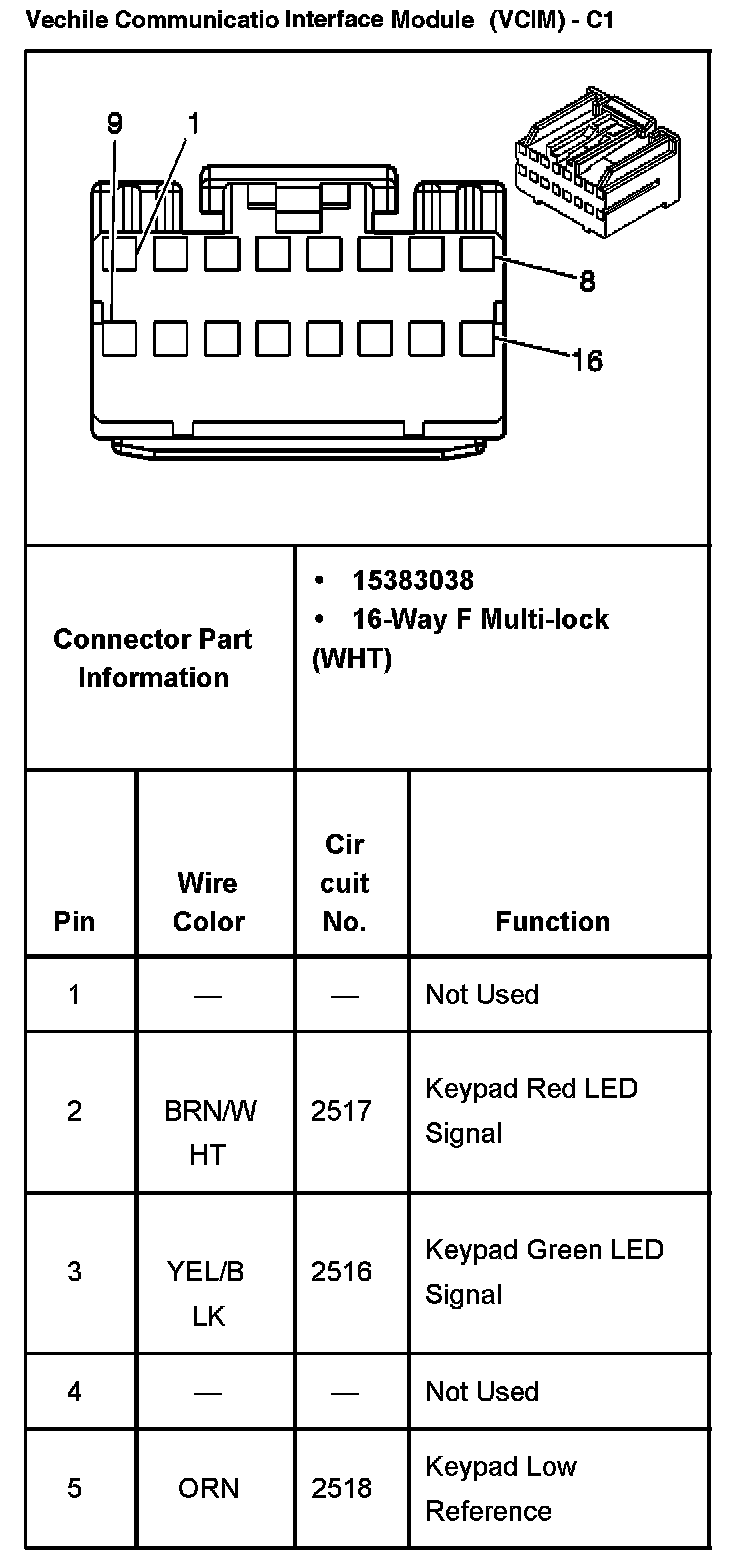

Vehicle Communication Interface Module (VCIM) - C1 Part 1:

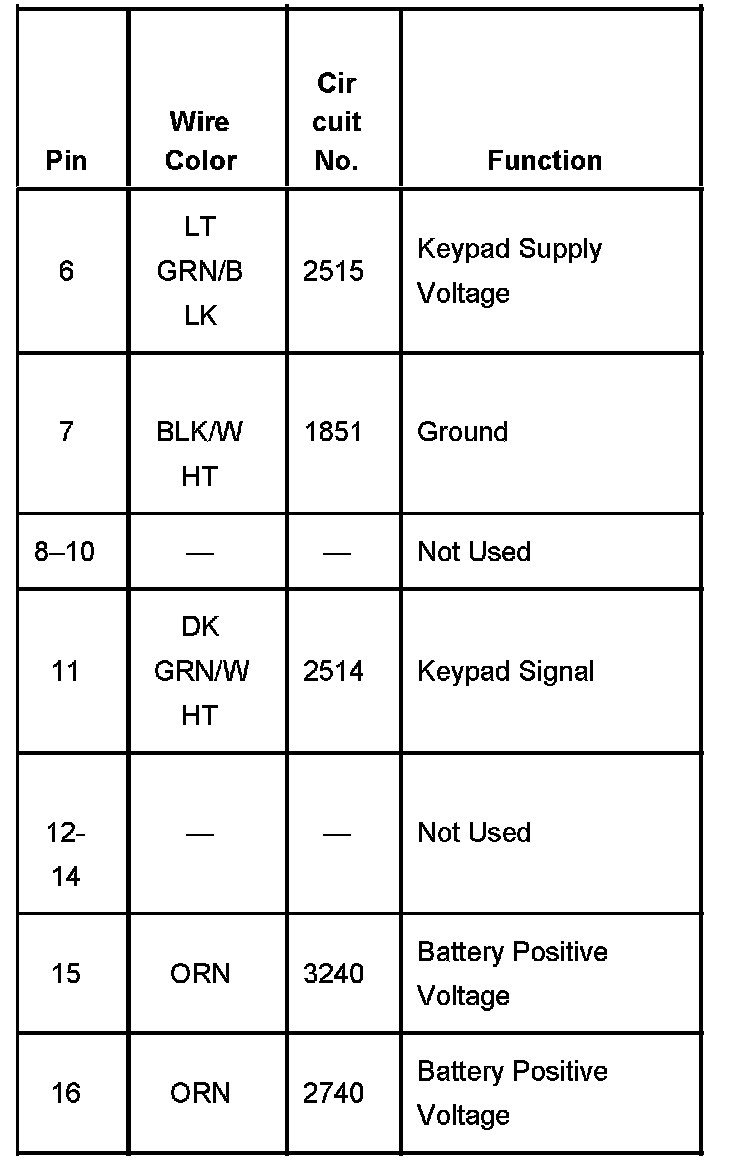

Vehicle Communication Interface Module (VCIM) - C1 Part 2:

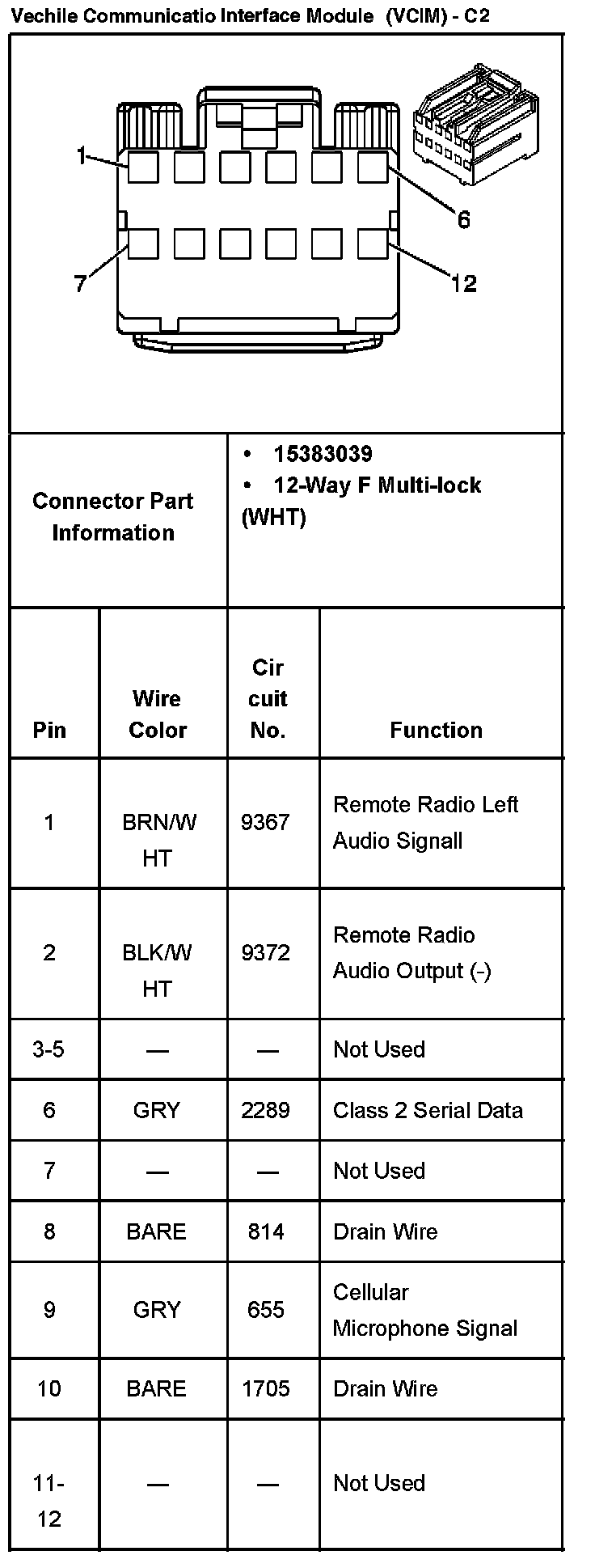

Vehicle Communication Interface Module (VCIM) - C2:
