Home >> Pontiac >> 2003 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Doors

Doors

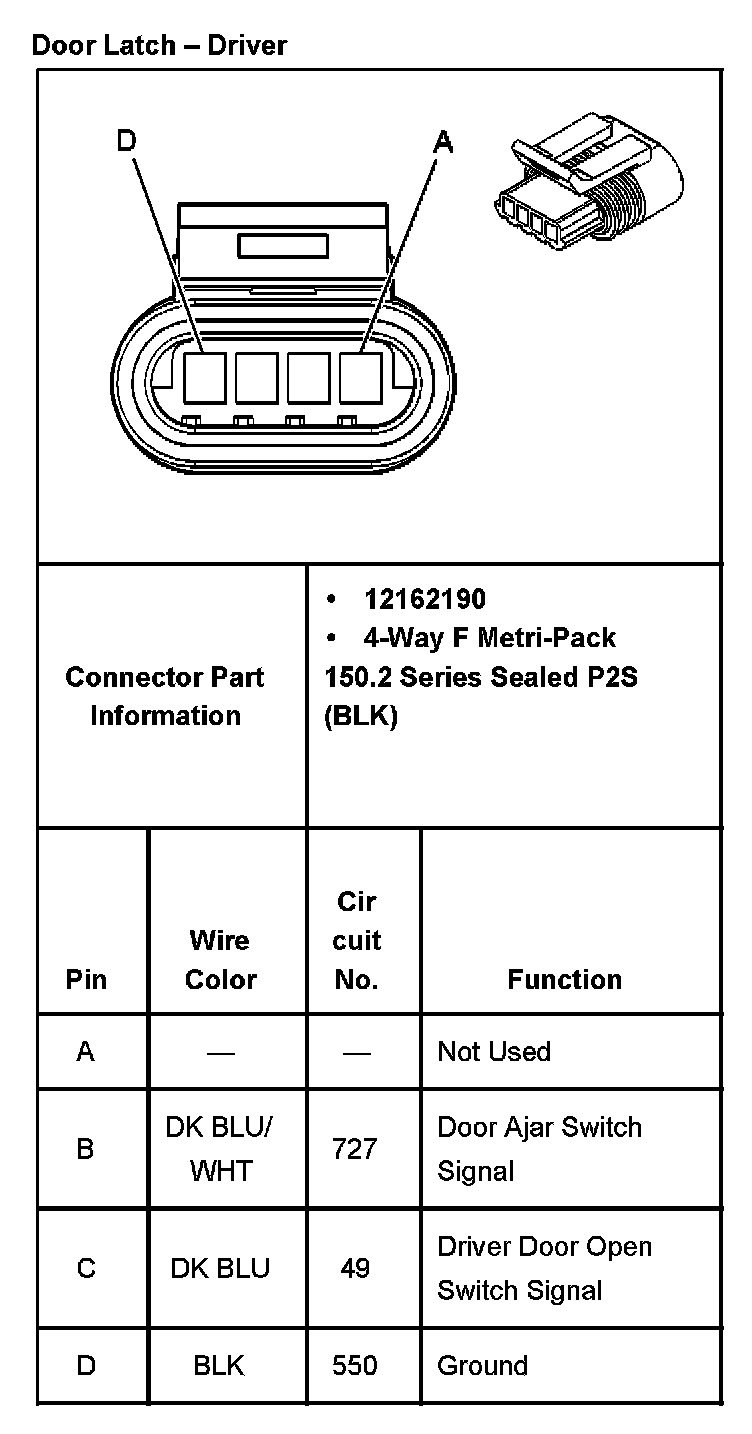

Door Latch - Driver:

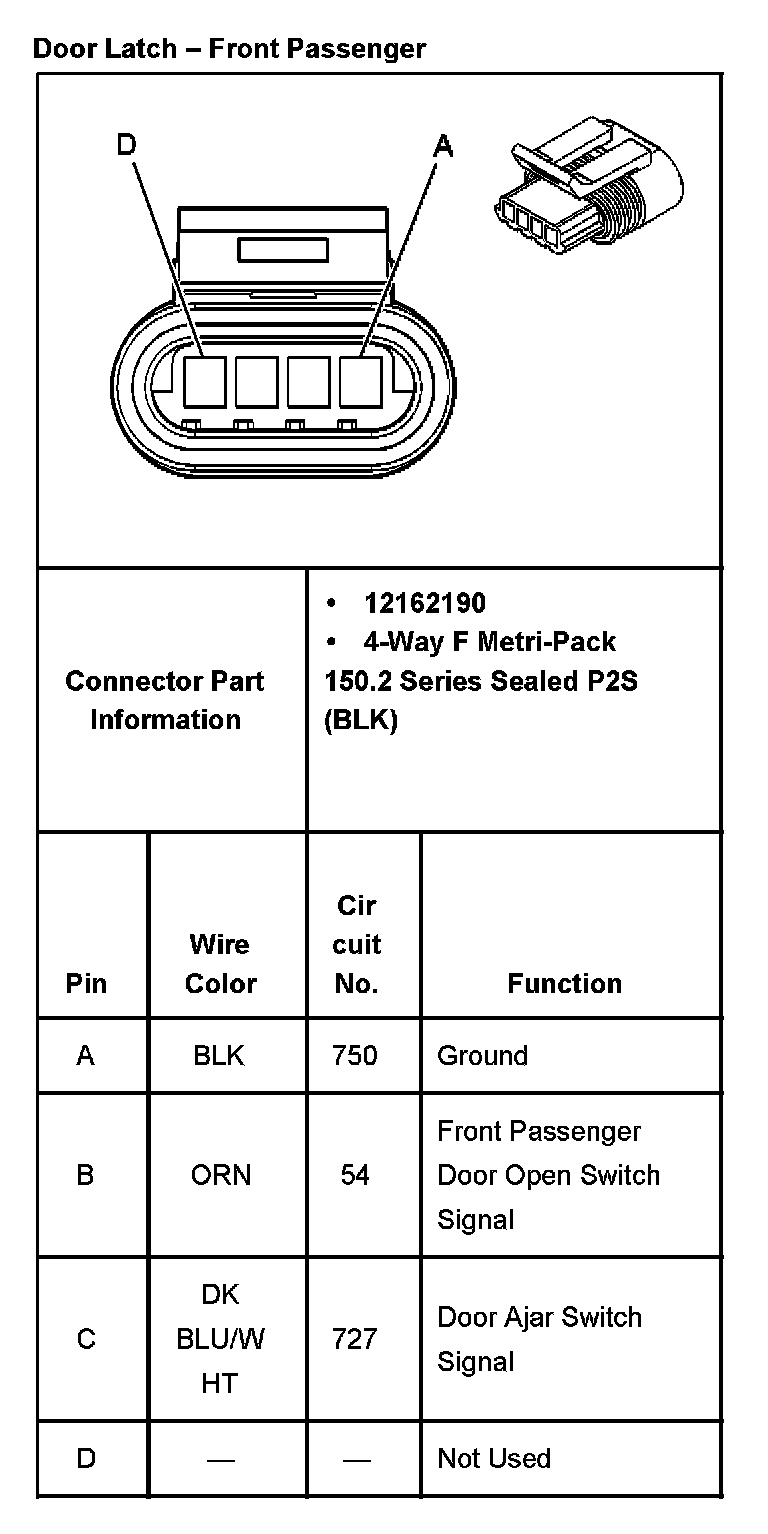

Door Latch - Front Passenger:

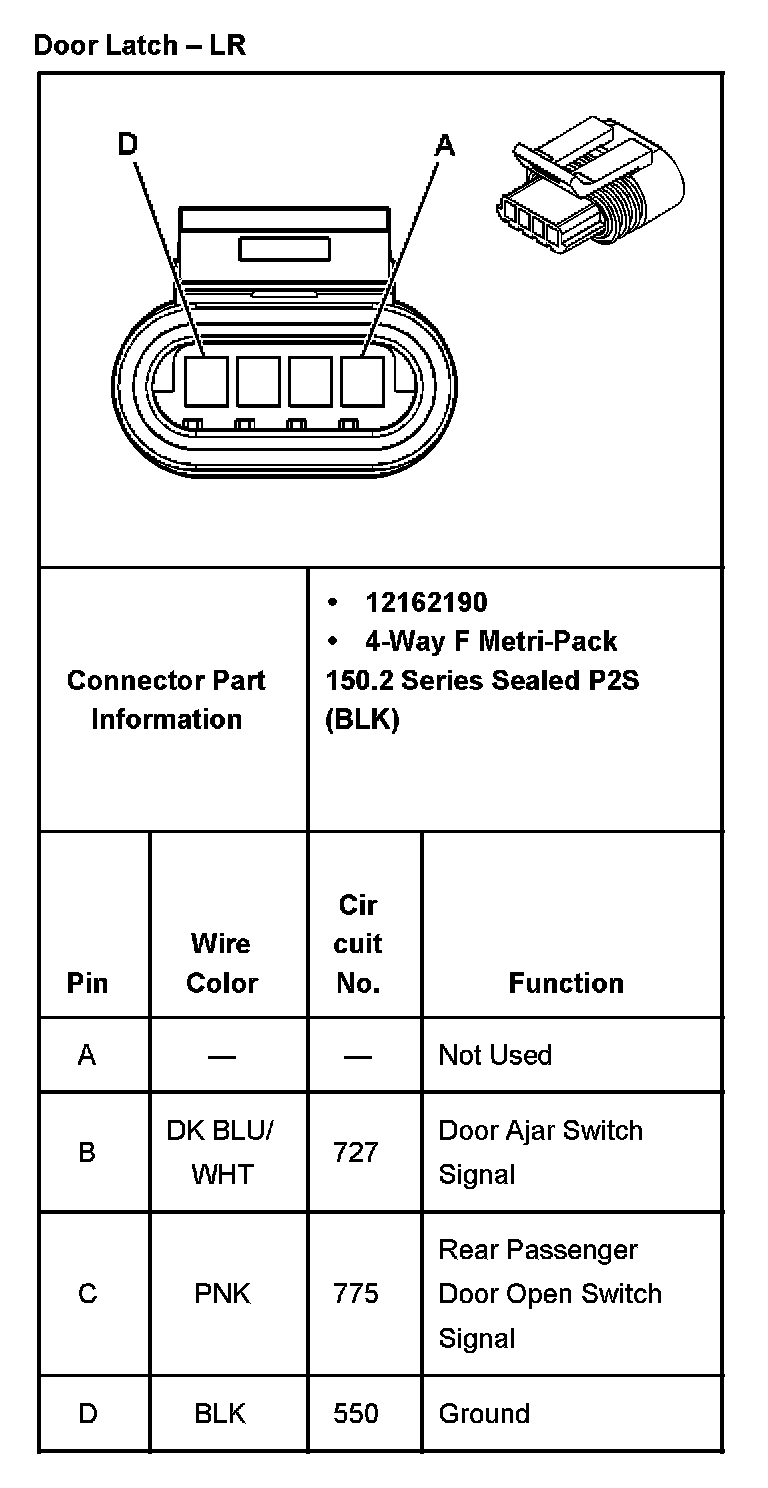

Door Latch - LR:

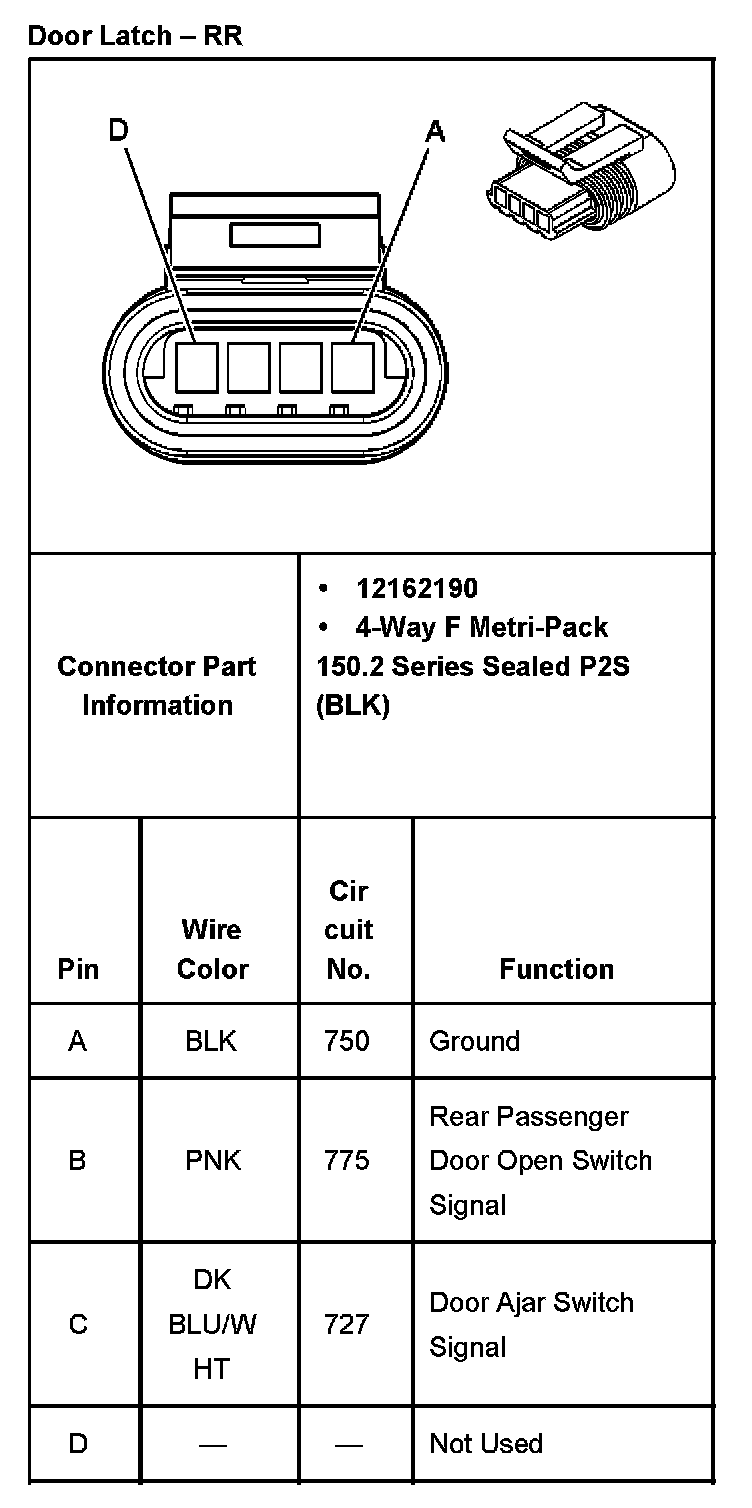

Door Latch - RR:
