Instrument Cluster / Carrier

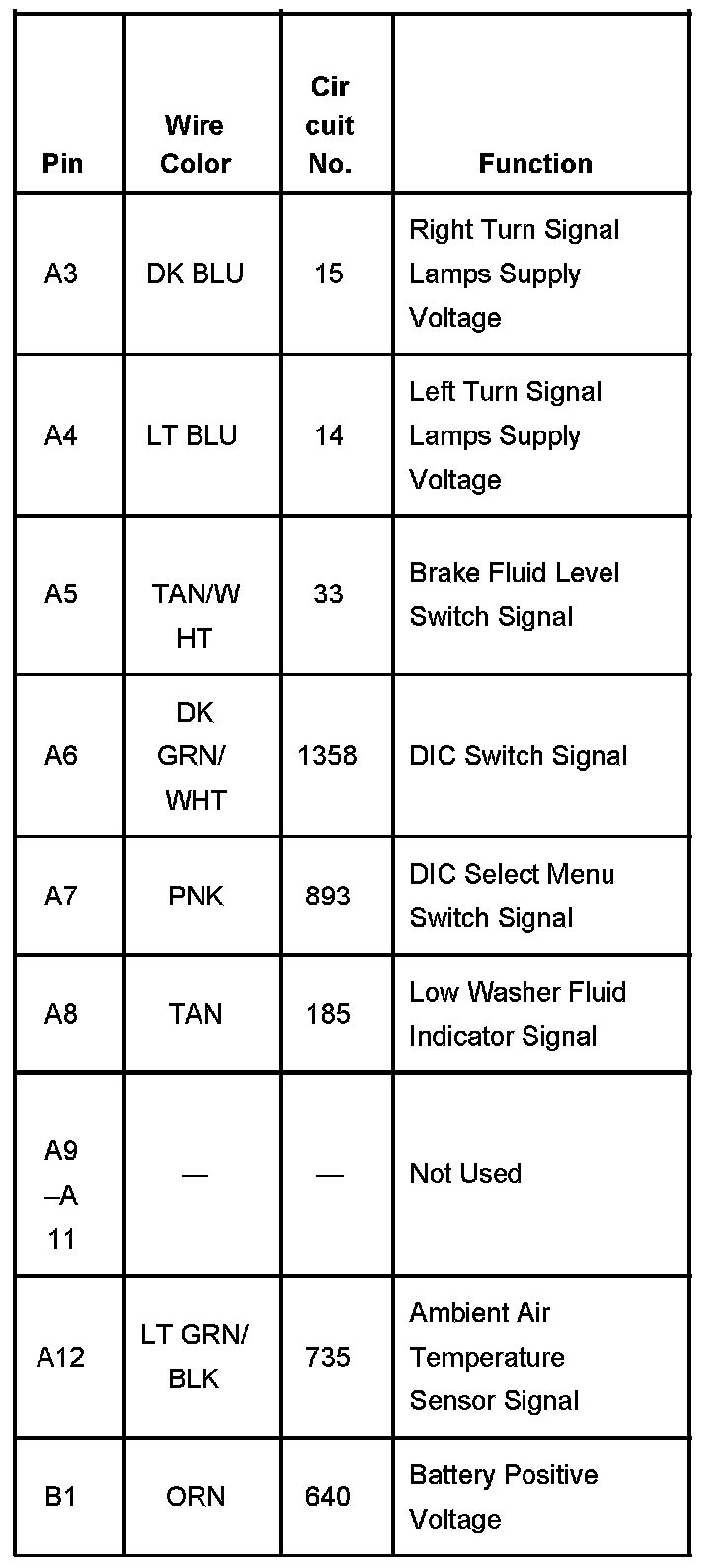

Instrument Panel Cluster (IPC)-Part 1:

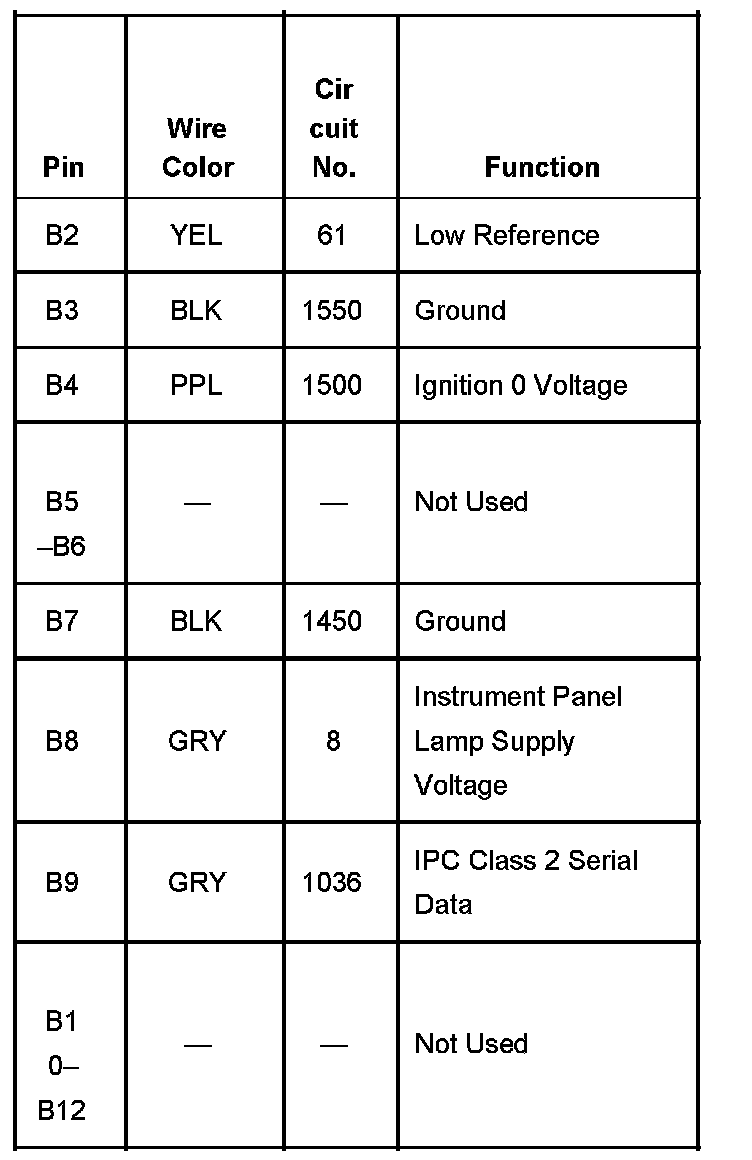

Instrument Panel Cluster (IPC)-Part 2:



Instrument Panel Cluster (IPC)-Part 3:

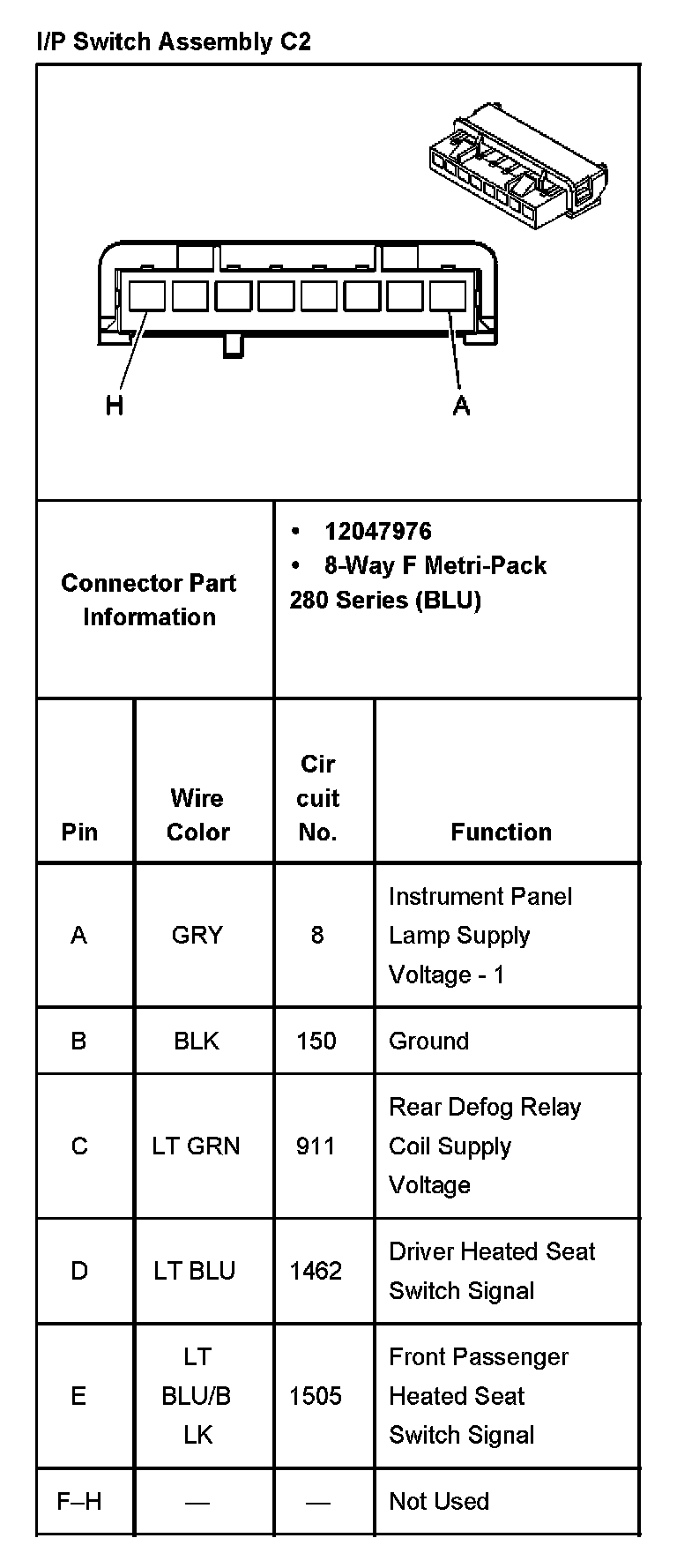

I/P Switch Assembly C2:

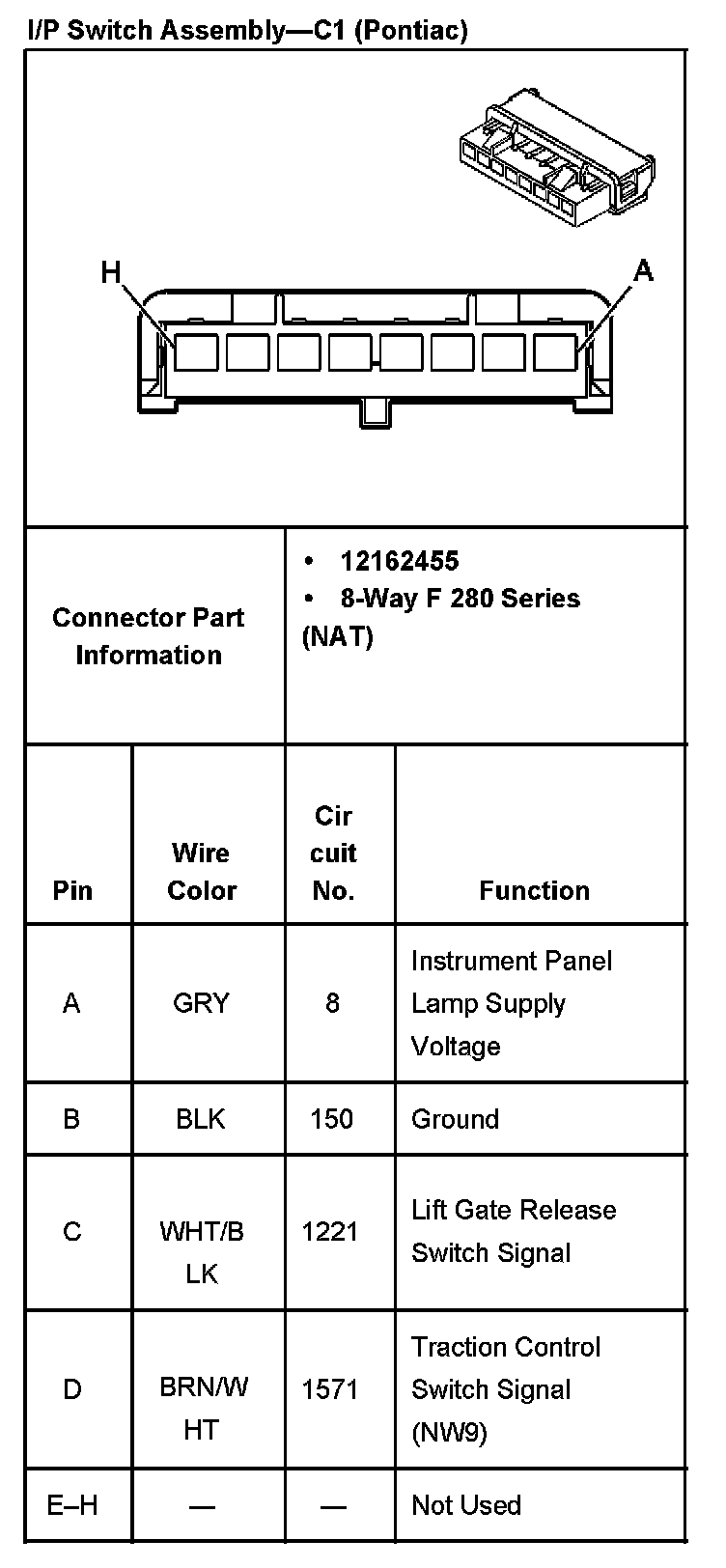

I/P Switch Assembly - C1:



I/P Switch Assembly C2:
