Power Mirror Switch

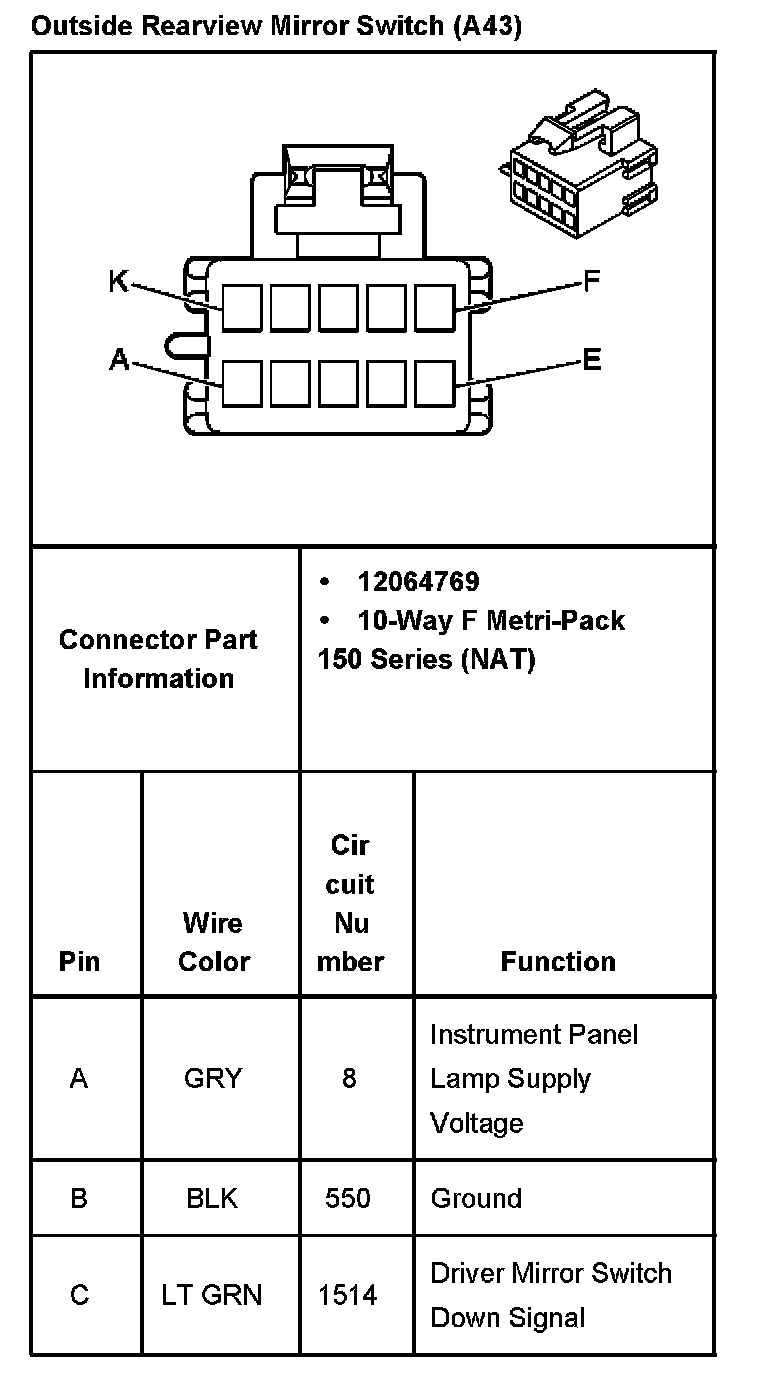

Outside Rearview Mirror Switch Wth RPO Code A43 Part 1:

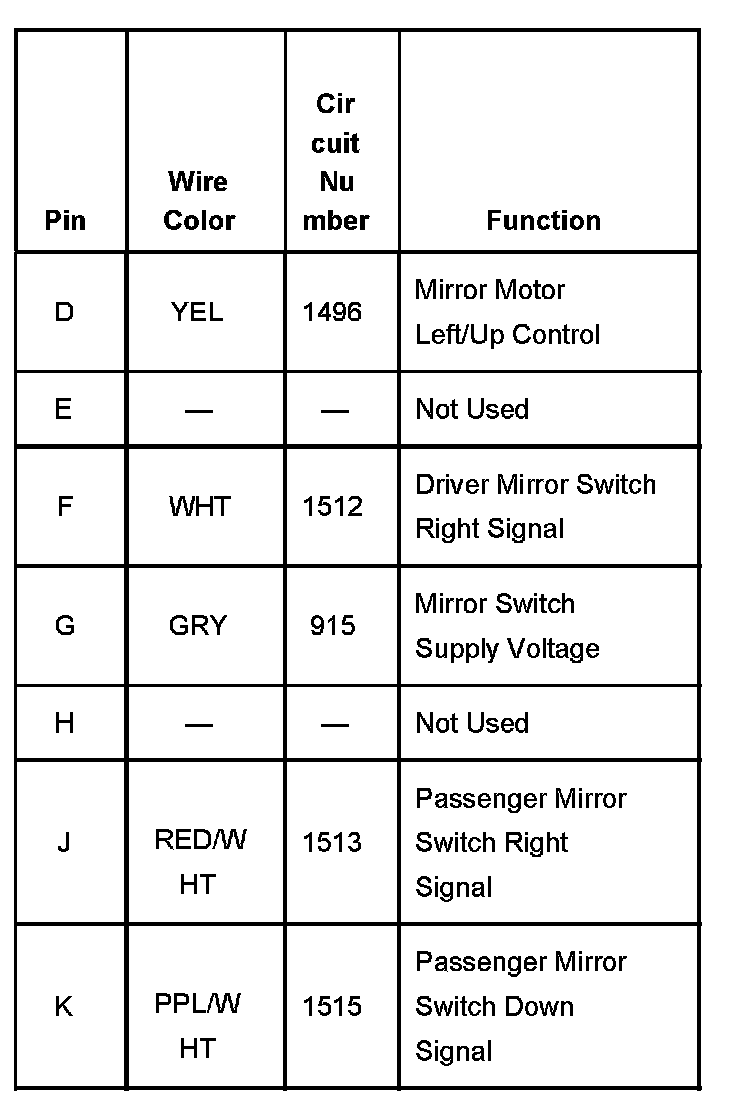

Outside Rearview Mirror Switch With RPO Code A43 Part 2:

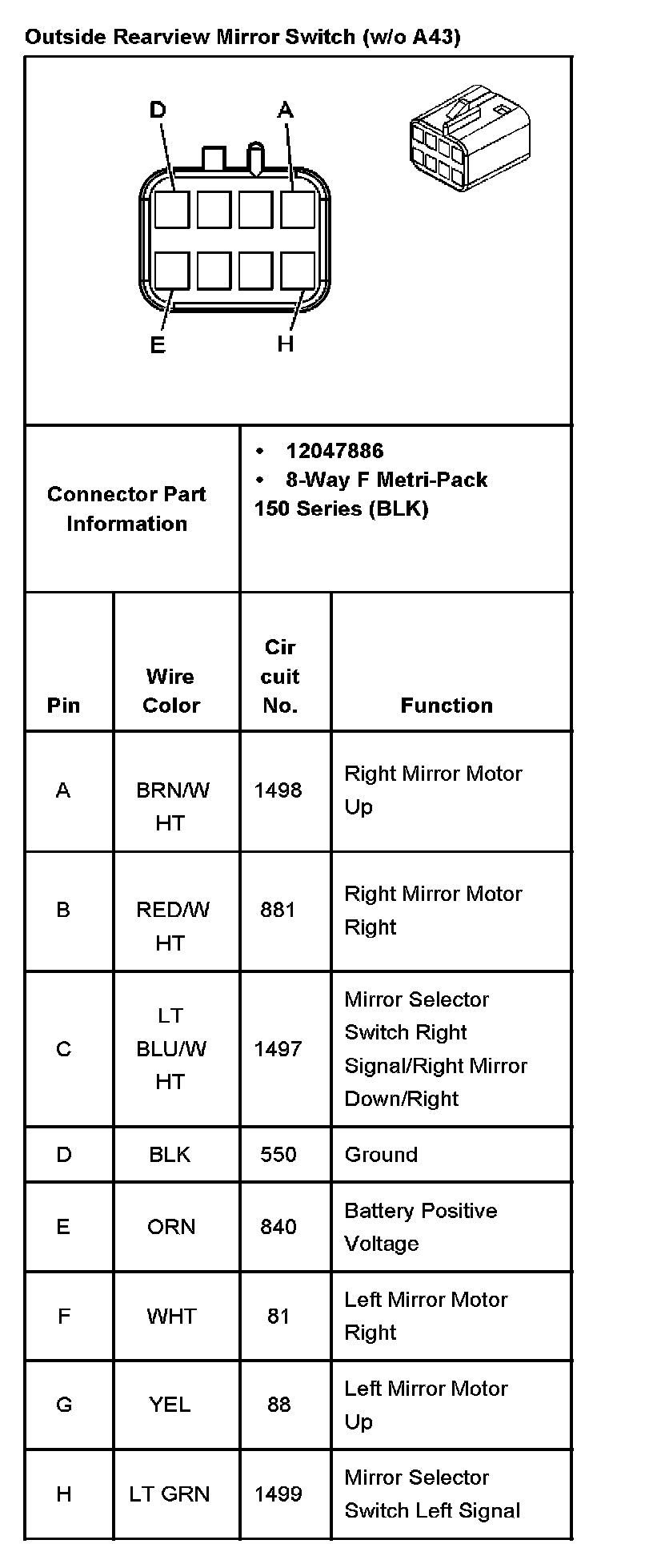

Outside Rearview Mirror Switch Without RPO Cod A43:
