Home
>>
Pontiac
>>
2003
>>
Aztek V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension Control ( Automatic - Electronic )
>>
System Diagram
>>

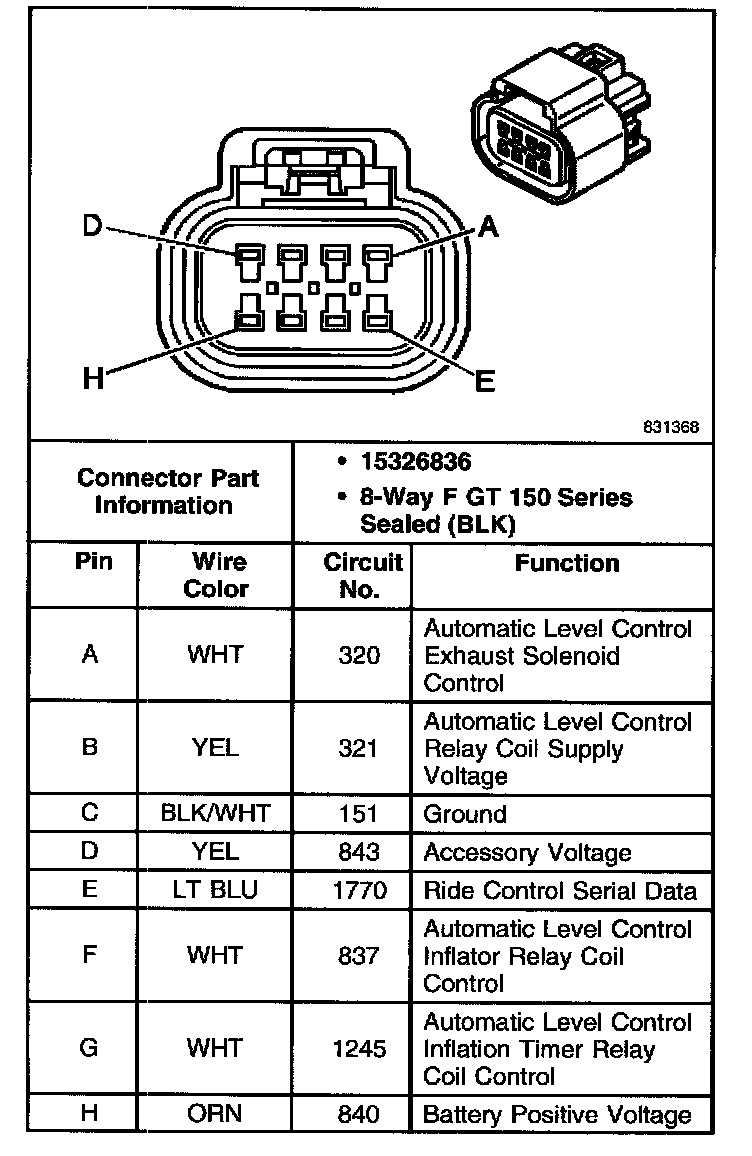

Auto Level Control (ALC) Sensor-With Inflator
Auto Level Control (ALC) Sensor-With Inflator
Auto Level Control (ALC) Sensor-With Inflator:
