Trunk / Liftgate Latch
Trunk / Liftgate Latch

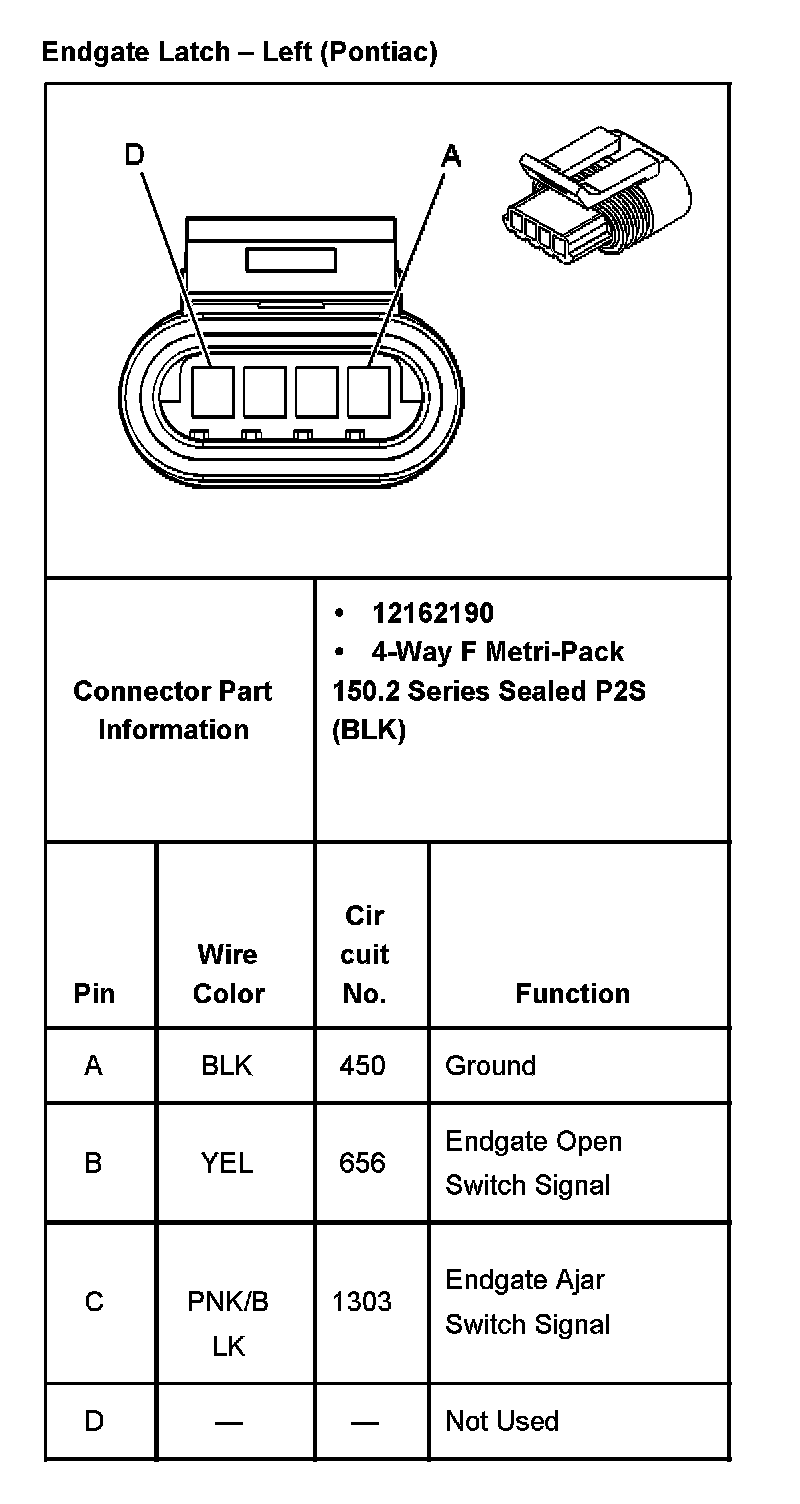

Endgate Latch - Left:
Endgate Latch - Right:

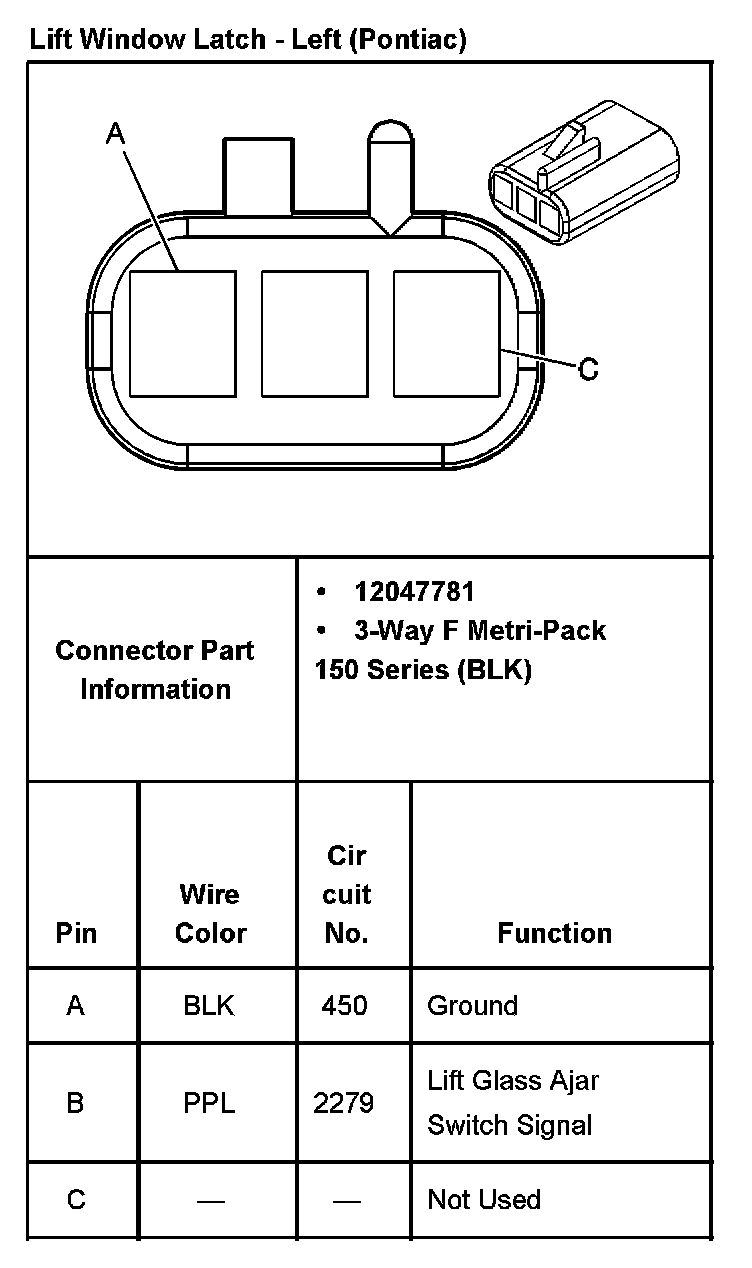

Lift Window Latch - Left:

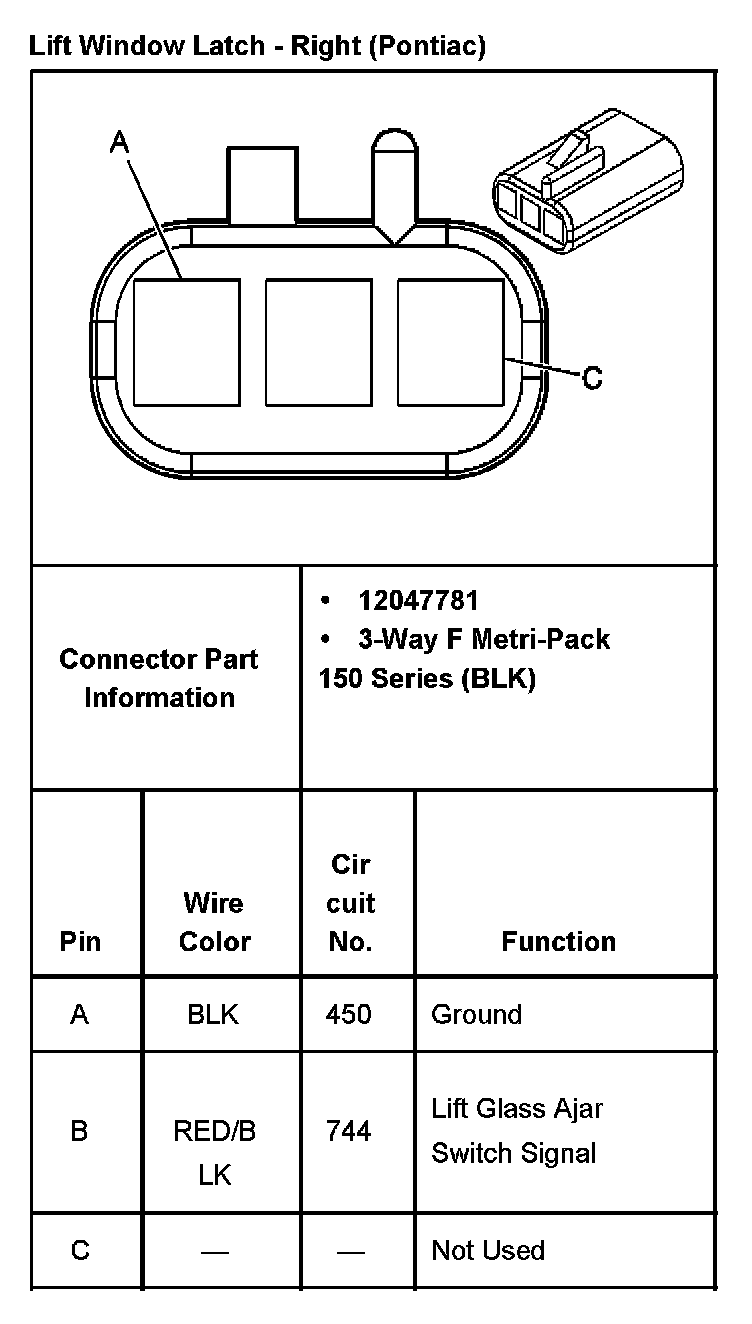

Lift Window Latch - Right:
