Trunk / Liftgate Motor

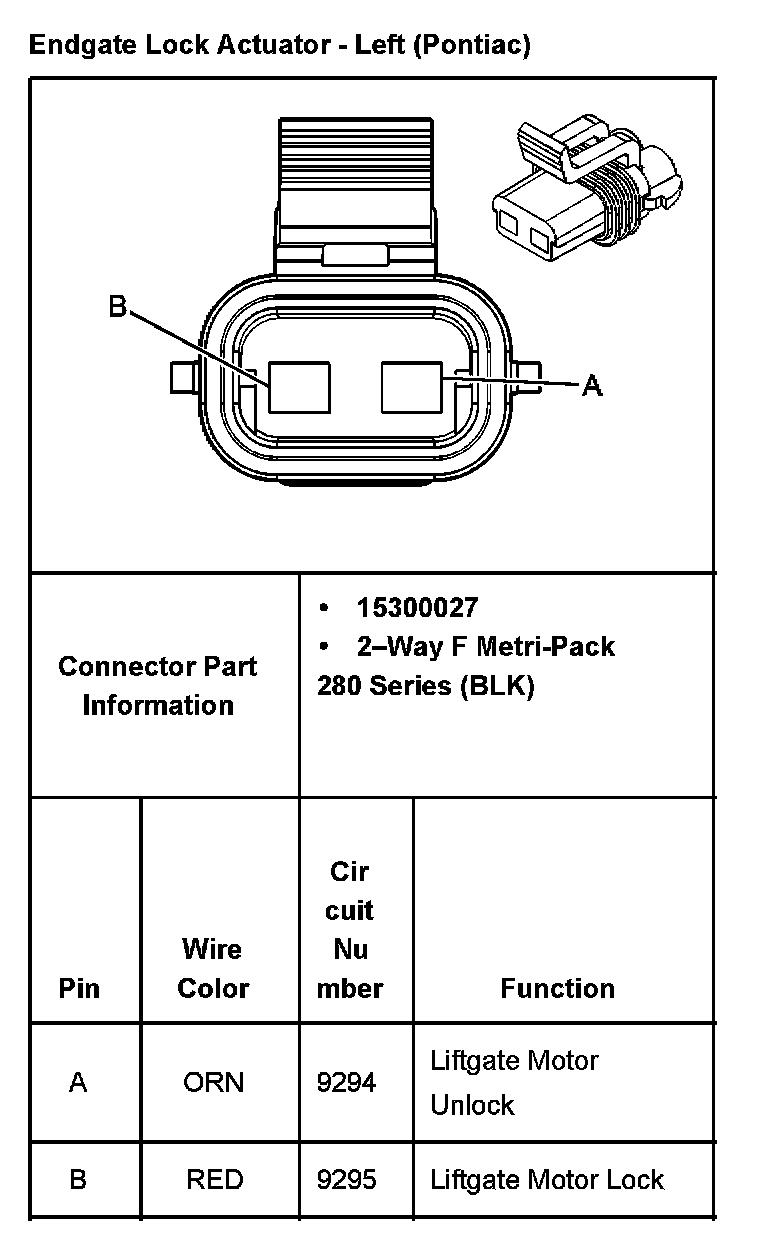

Endgate Lock Actuator - Left:

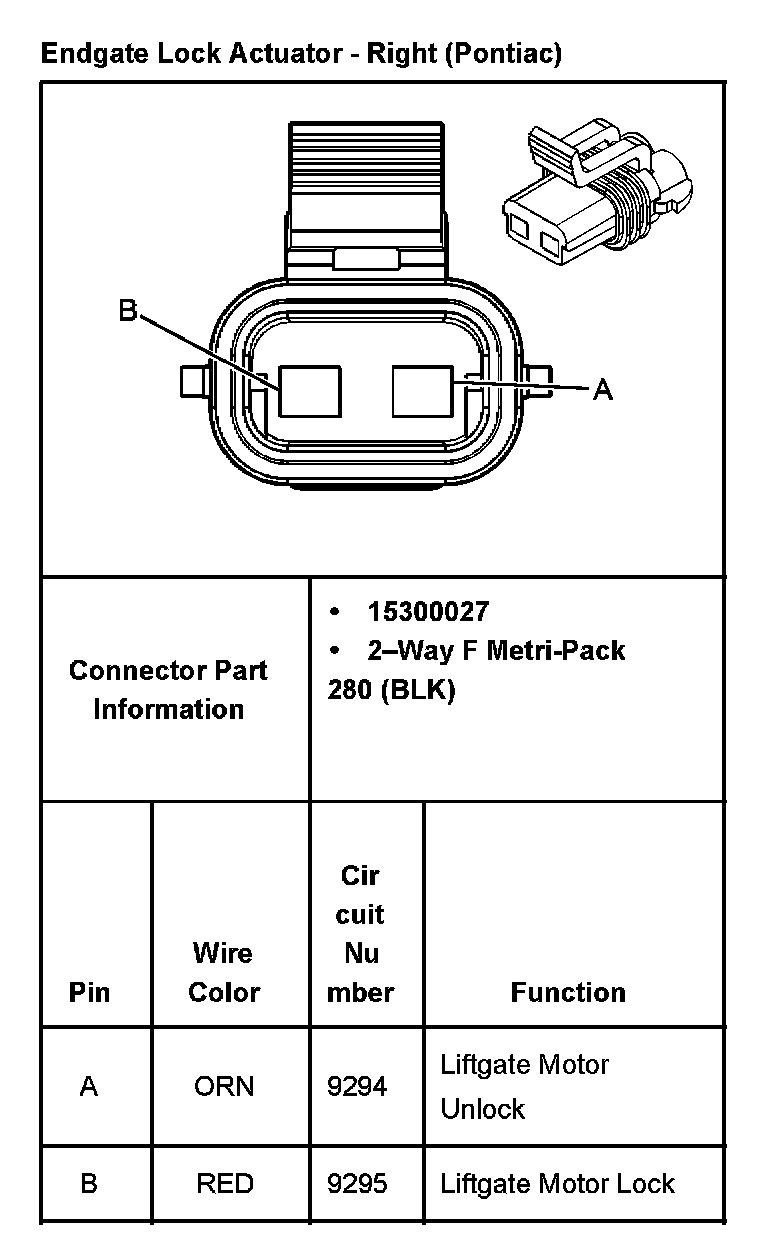

Endgate Lock Actuator - Right:

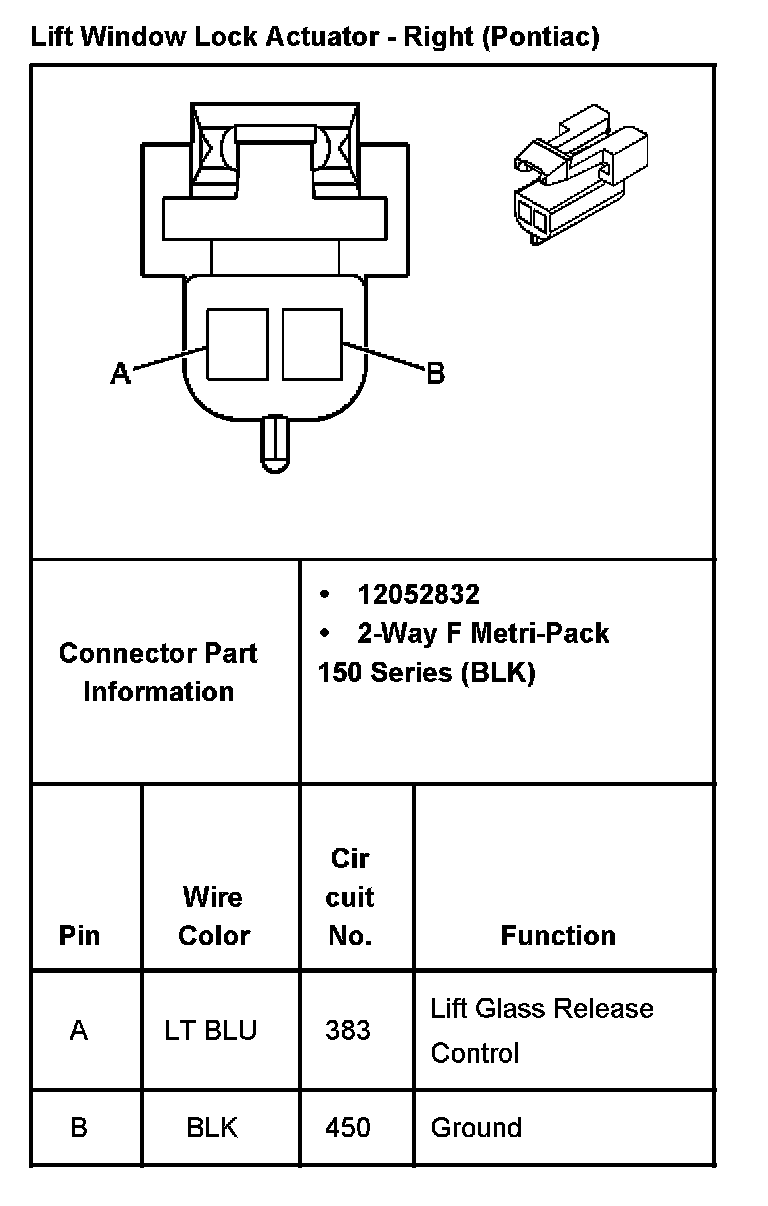

Lift Window Lock Actuator - Right:
