Home >> Pontiac >> 2003 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering >> Steering Column

Steering Column

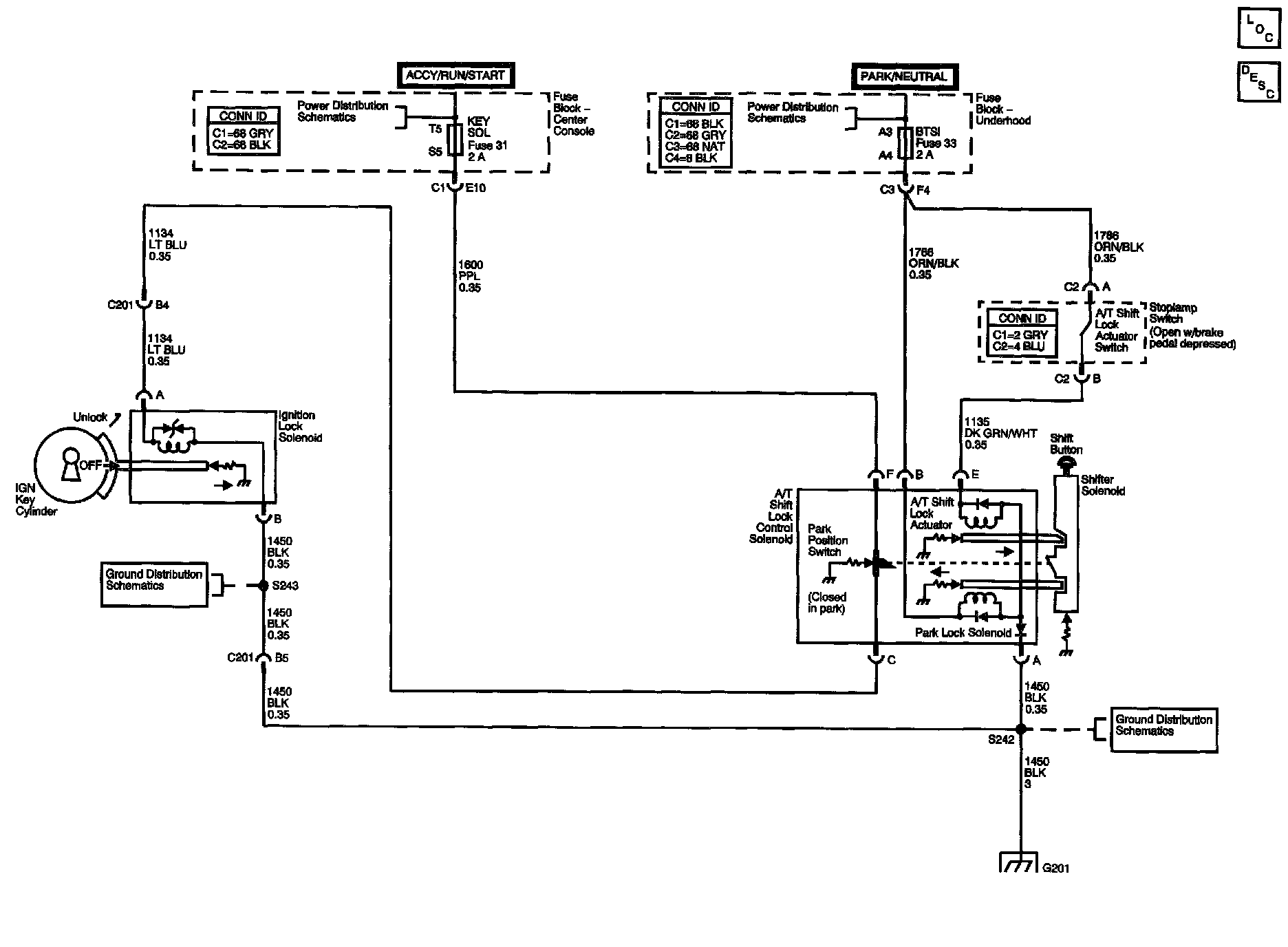

Column Ignition Lock/ Schematic:
