Home >> Pontiac >> 2003 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering >> Steering Mounted Controls Transmitter

Steering Mounted Controls Transmitter

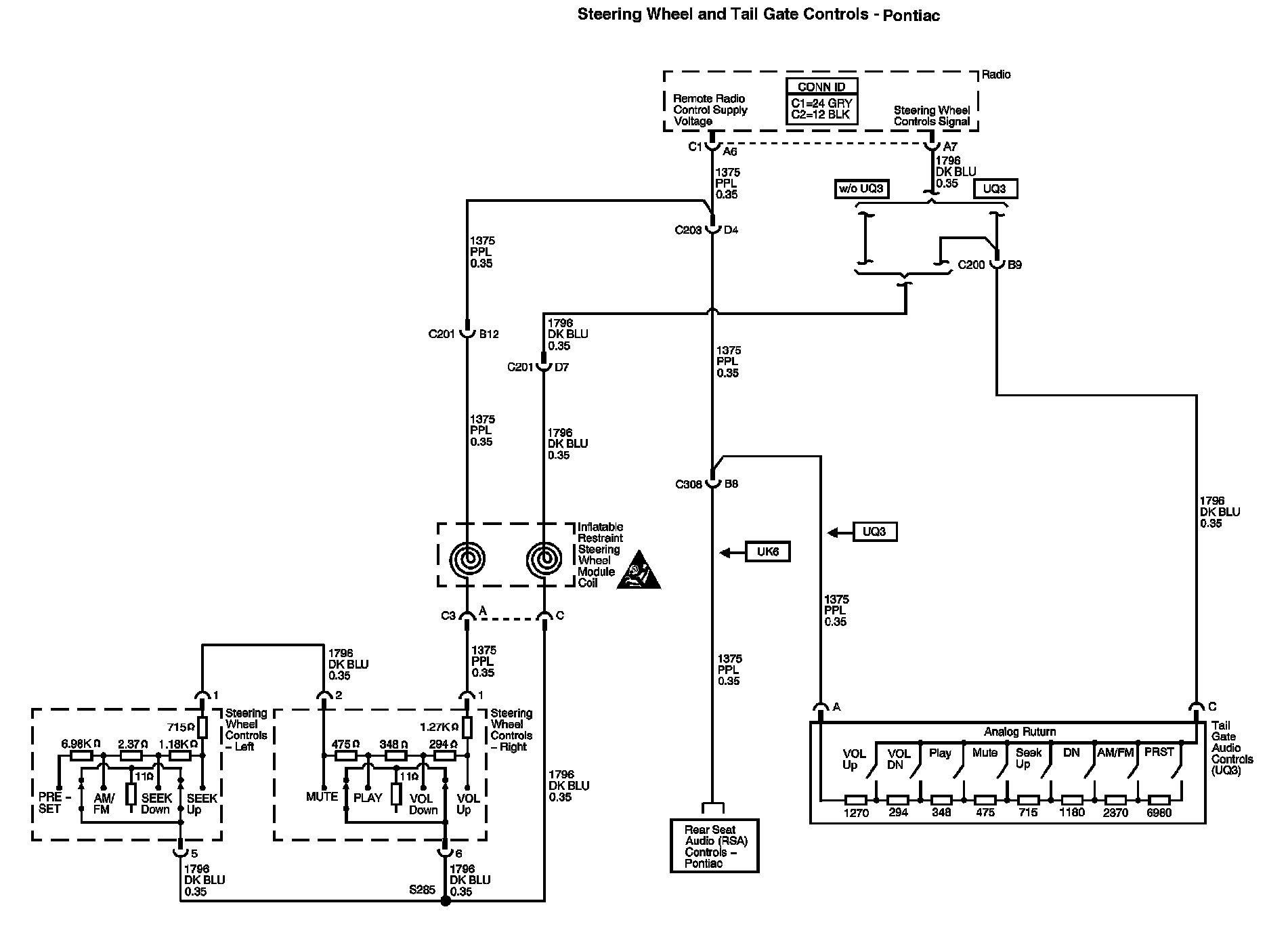

Steering Wheel Controls Diagram 1:
