Transmission Control Systems
Transmission Control Systems

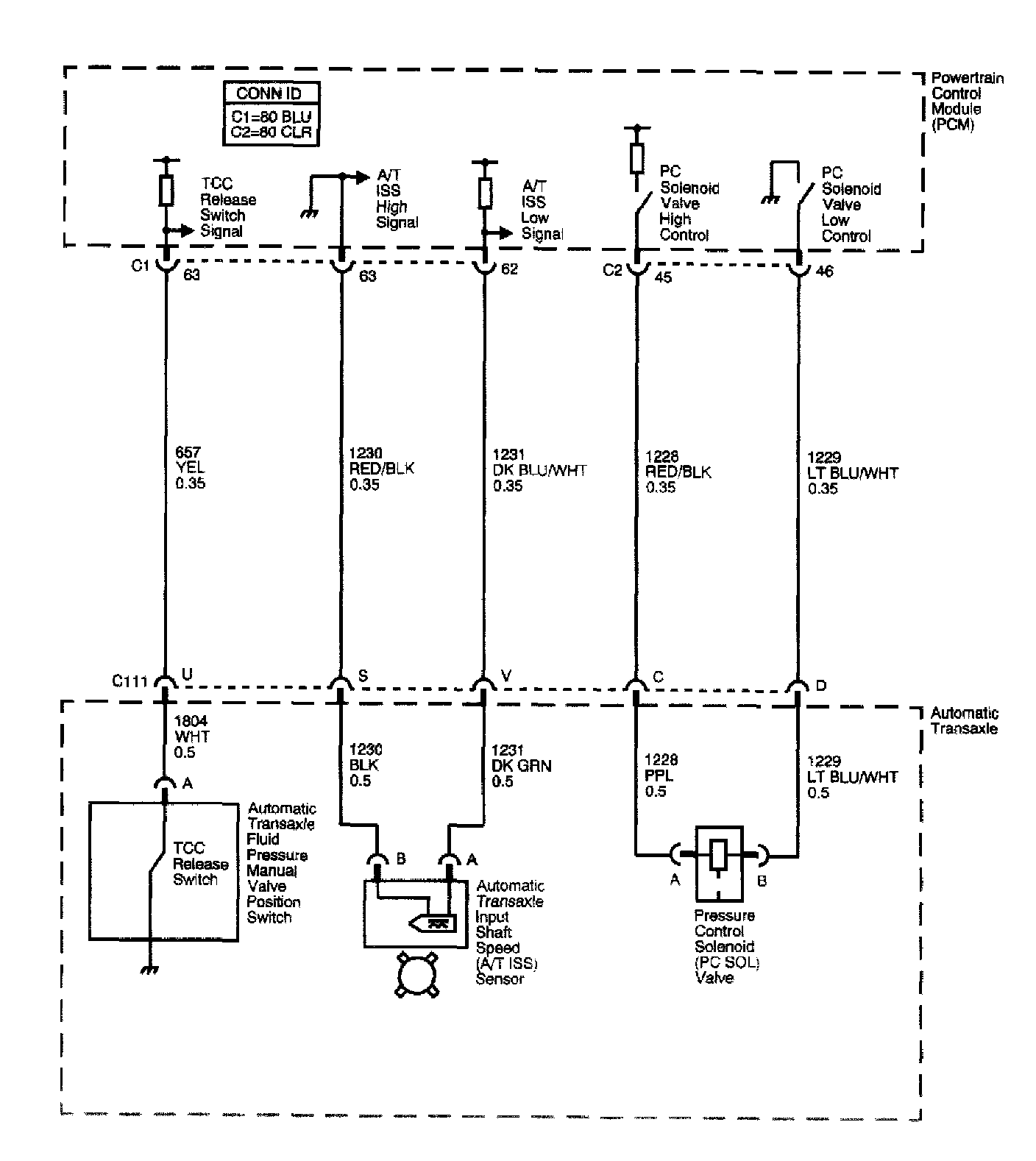

TCC Solenoid Control, SS Valve Control And TFT Sensor:
Switches, ISS And Pressure Control:

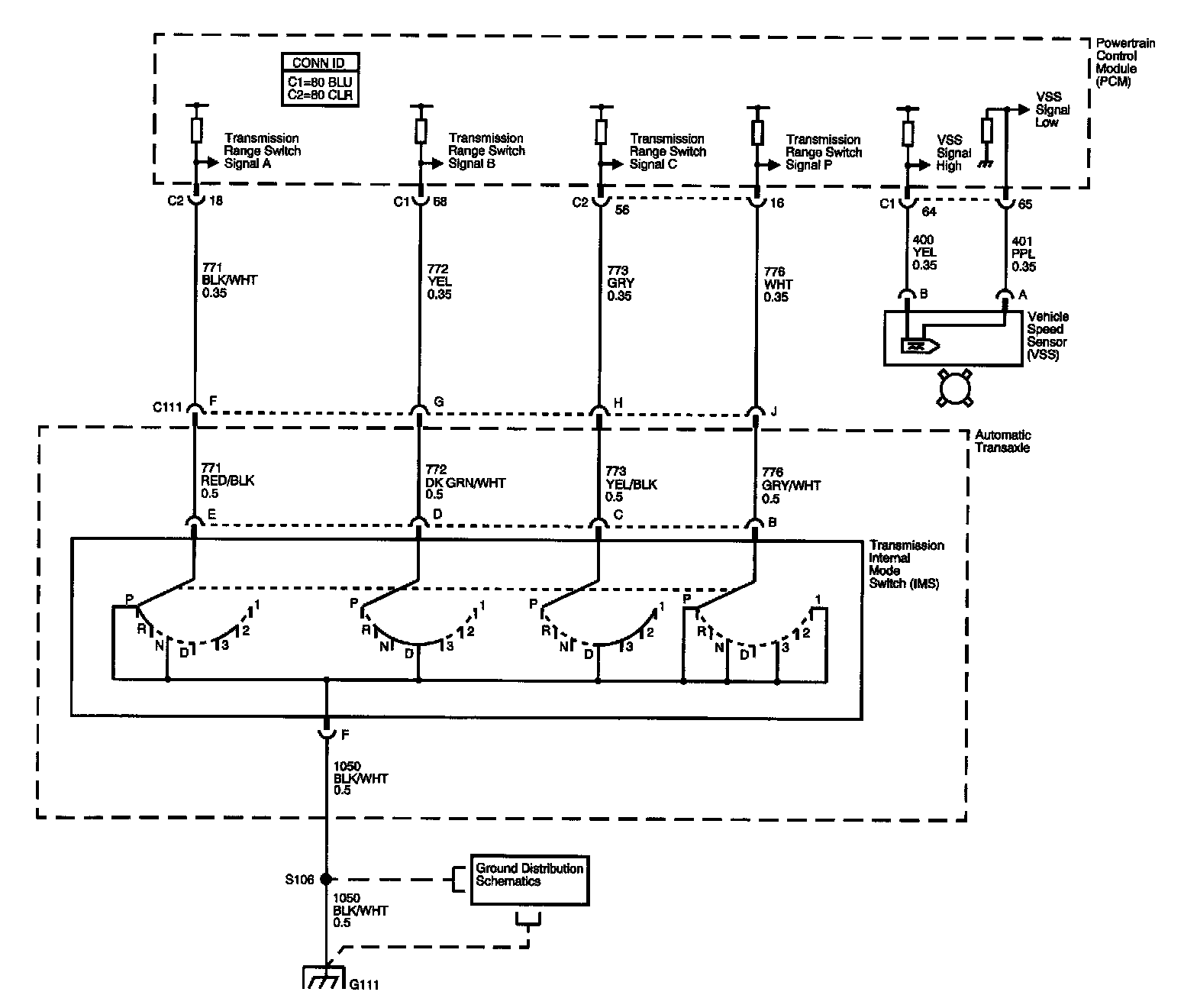

Transaxle Range Switch And VSS:
