Engine Support Fixture

Engine Support Fixture

^ Tools Required
- J28467-34 Lift Hook Wing Nut & Washer (2)
- J28467-6A Bracket Assembly (2)
- J28467-7A Bolt Hook (2)
- J28467-500 Engine Support Fixture
- J 45057 Engine Support Bar Assembly
- J 45057-2 Lower Support Bar

Installation Procedure
1. Remove the right engine mount strut.

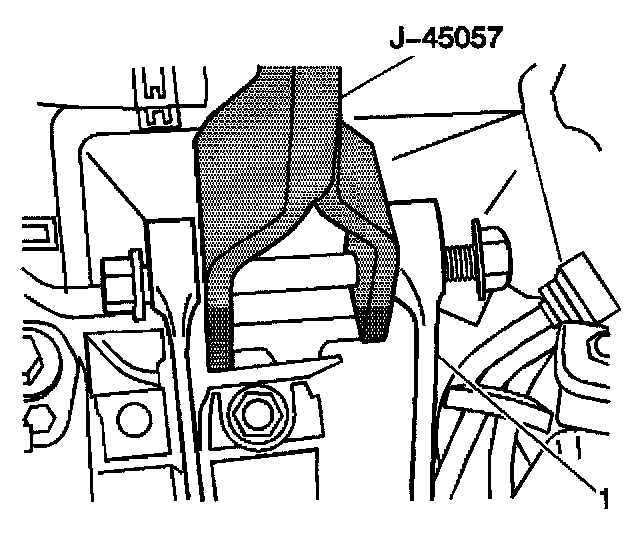

2. Install the J45057 to the right engine mount strut bracket (1).

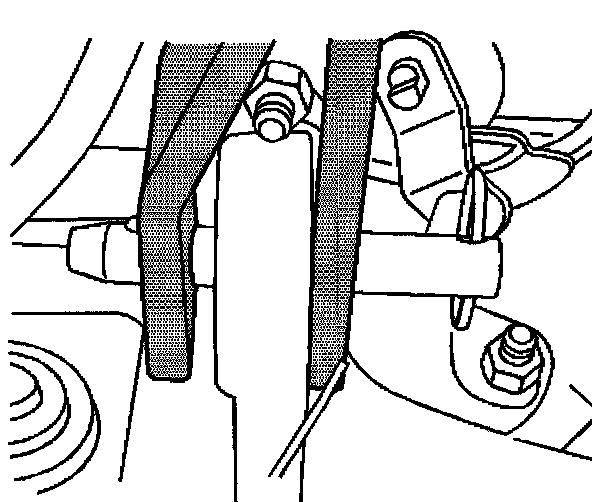

3. Install the J45057 to the left side engine lift bracket.

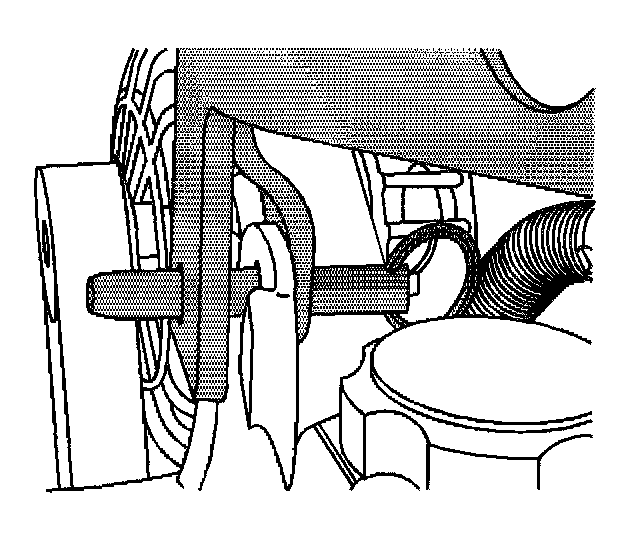

4. Install the J 45057 to the right rear engine lift bracket.
5. Remove the headlamps.
6. Disconnect the hood strut assist rods from the fenders.
7. Carefully open and secure the hood in 90 degree position.





8. Install the J28467-B.

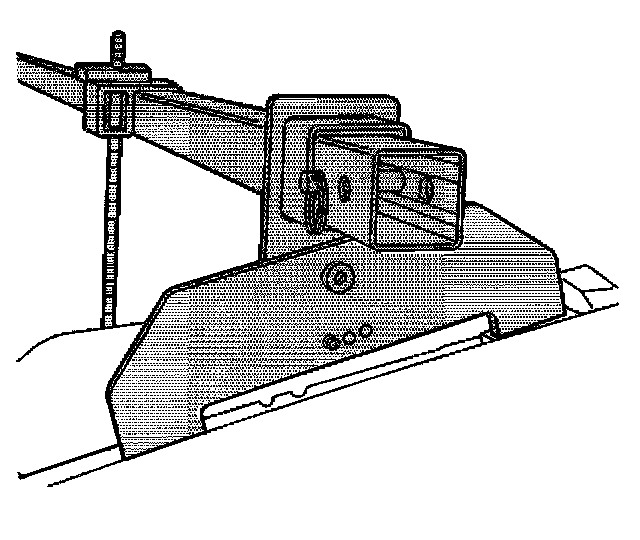

9. Install the J 28467-7A (1) and the J 28467-34 to the J 28467-500 and the rear hole on the right side of the J-45057 (2).





10. Install the J 28467-7A (1) and the J 28467-34 to the J 28467-500 and the left side of the J 45057 (2)
11. Gently tighten the J219467-34 lift hook wing nuts.
12. Raise the vehicle. Refer to Vehicle Lifting.
13. Remove the lower air baffle assembly.
14. Remove the engine mount bolt.

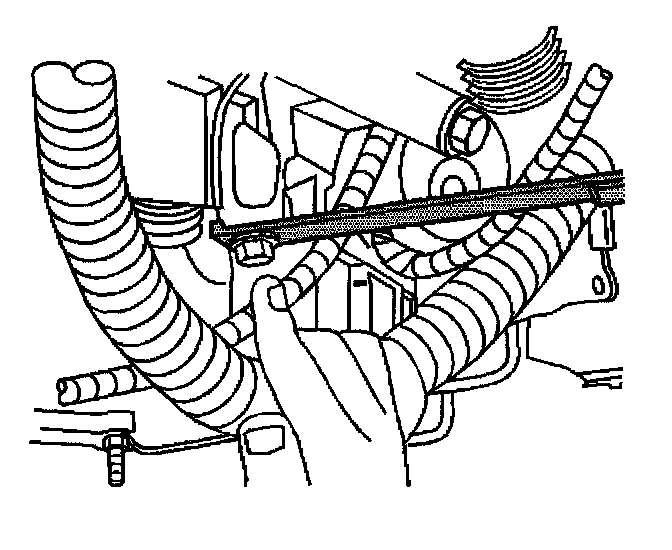

15. Install the J 45057-2 to the core support.

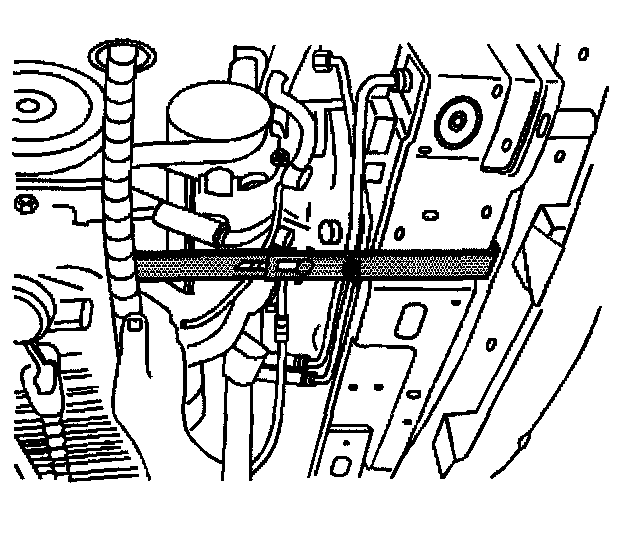

16. Install the J45057-2 to the engine using the engine mount bolt.





17. Assemble the J 45057-2 and hand tighten the fasteners.
