Deflector Replacement - Instrument Panel Air

REMOVAL PROCEDURE

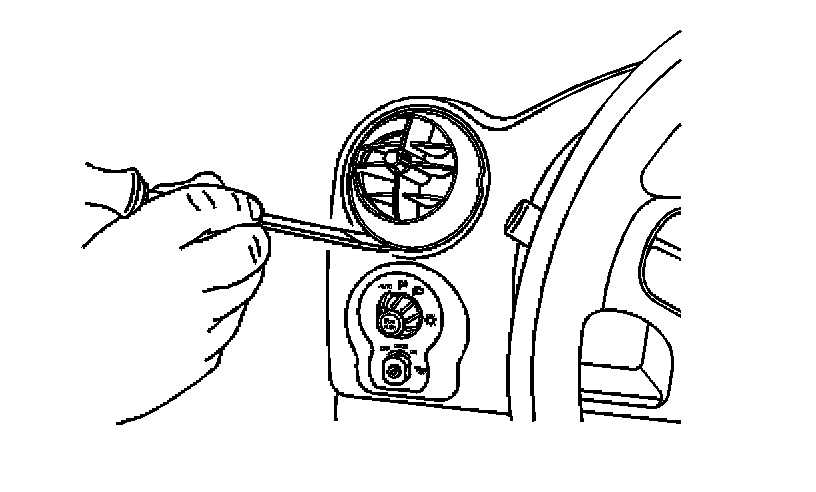

1. Use a flat-bladed tool in order to release the bottom of the deflector from the trim bezel.




2. Remove the deflector from the I/P trim bezel.

INSTALLATION PROCEDURE




1. Install the deflector to the I/P trim bezel.
2. Push the deflector until the deflector is seated.
3. Inspect the deflector for proper operation.
