Aspirator: Service and Repair

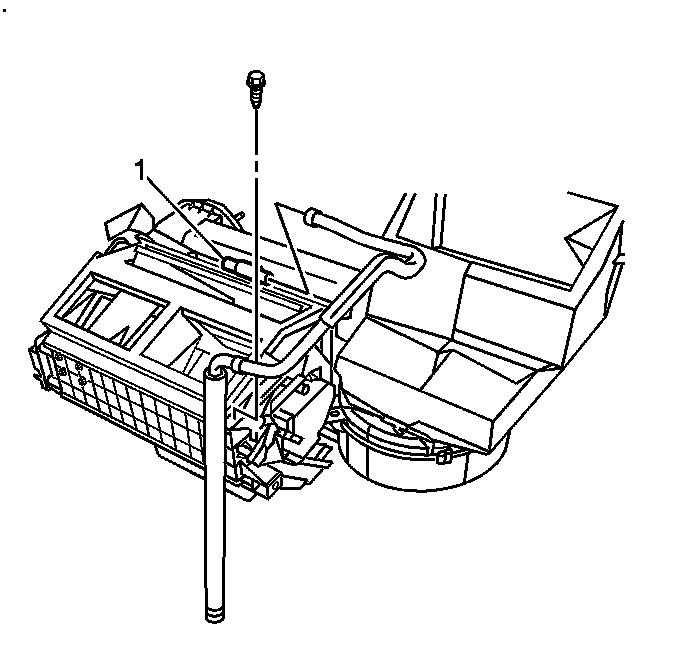

ASPIRATOR REPLACEMENTREMOVAL PROCEDURE
1. Remove the IP carrier.
2. Remove the aspirator hose mounting screw.
3. Disconnect the aspirator hose from the aspirator duct adapter (1).
4. Remove the aspirator hose from the HVAC module.

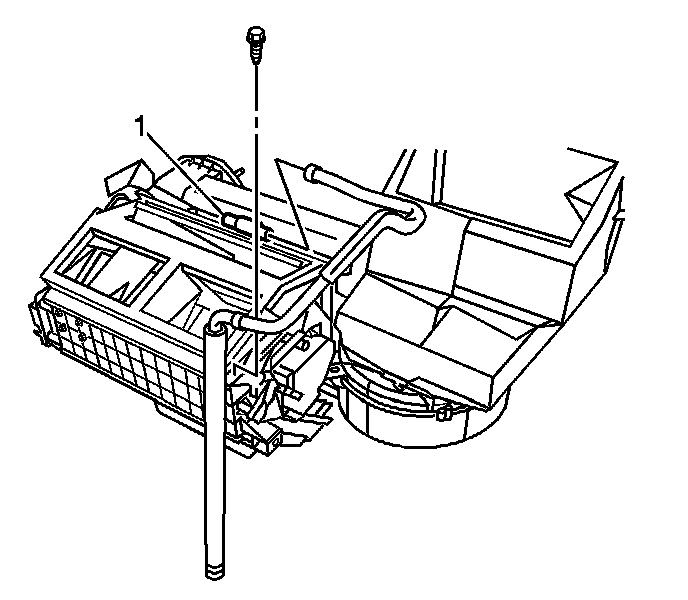

INSTALLATION PROCEDURE
1. Install the aspirator hose to the HVAC module.
2. Install the aspirator hose retaining screw.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the screw 0.9 N.m (8 lb in).
3. Connect the aspirator hose to the aspirator duct adapter (1).
4. Install the IP carrier.
