Torque Converter Cover: Service and Repair

Torque Converter Cover Replacement

Removal Procedure
1. Raise and support the vehicle.

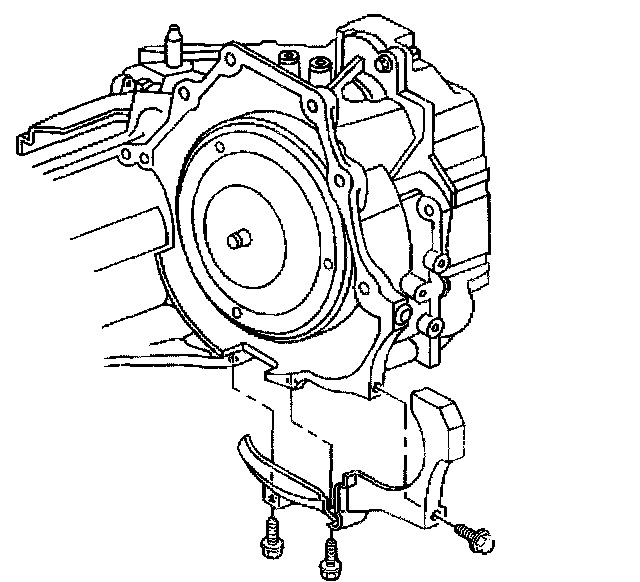

2. Remove the torque converter cover bolts.
3. Remove the torque converter cover.

Installation Procedure

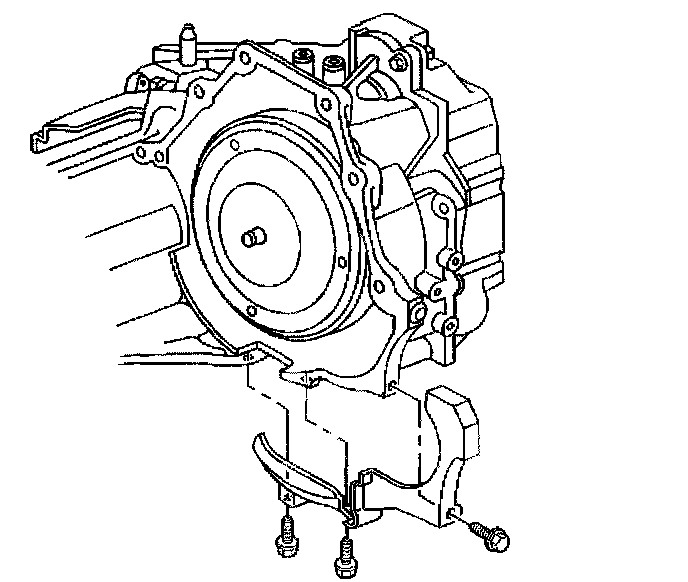

1. Install the torque converter cover.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the torque converter cover bolts
Tighten the bolts to 10 Nm (89 inch lbs.).
3. Lower the vehicle.
