Windshield Washer Reservoir: Service and Repair

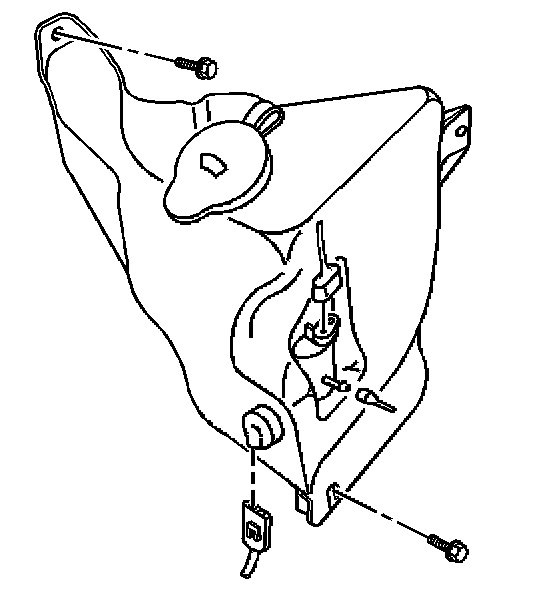

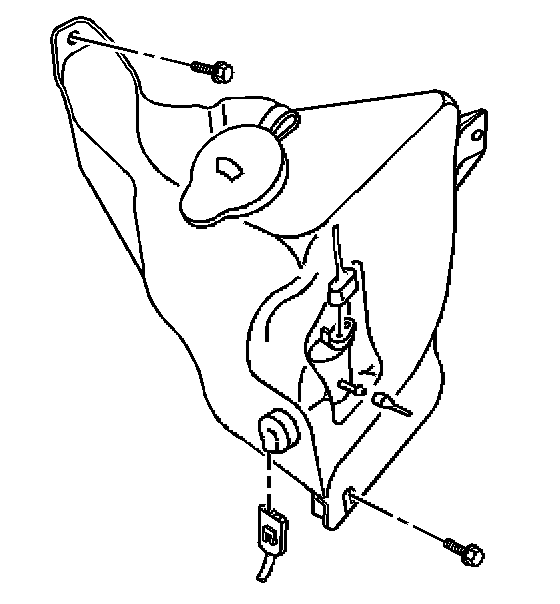

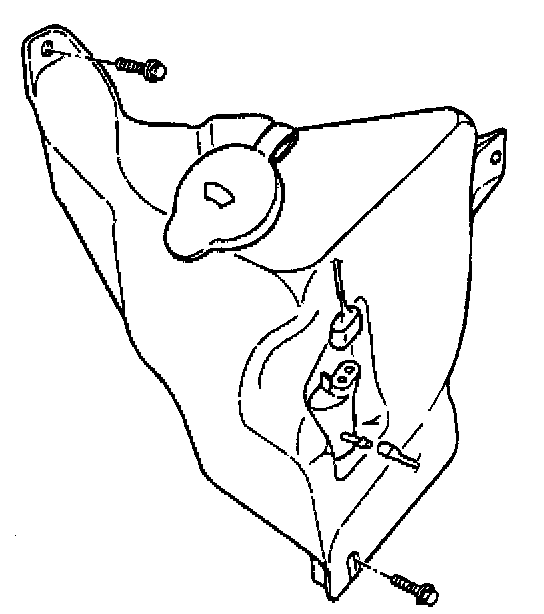

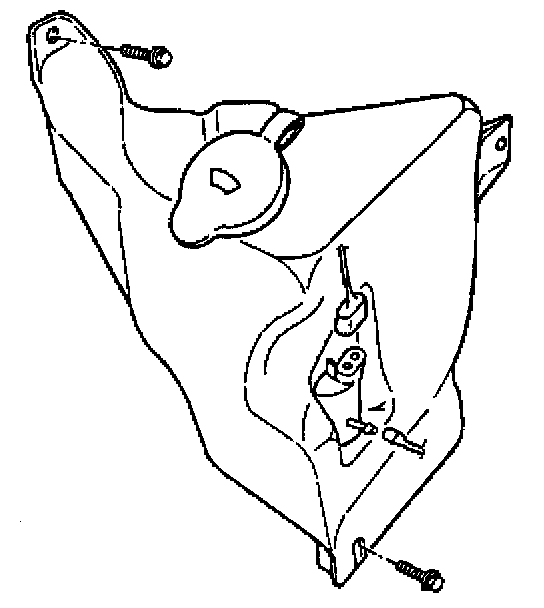

WASHER SOLVENT CONTAINER REPLACEMENT

REMOVAL PROCEDURE
1. Remove the battery.
2. Drain the washer solvent from the washer solvent container.




3. Disconnect the washer solvent container level sensor electrical connector.




4. Disconnect the rear washer pump electrical connector if equipped.
5. Disconnect the washer hose from the rear washer pump if equipped.




6. Disconnect the front washer pump electrical connector.
7. Disconnect the front washer hose from the front washer pump.




8. Remove the washer solvent container screws.
9. Remove the washer solvent container from the vehicle.

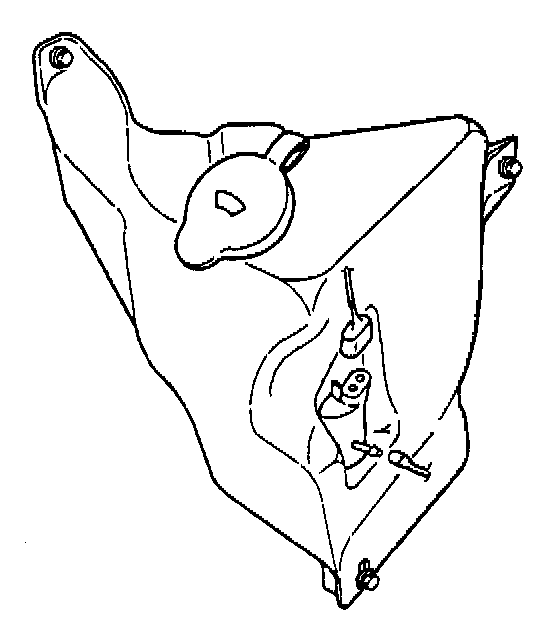

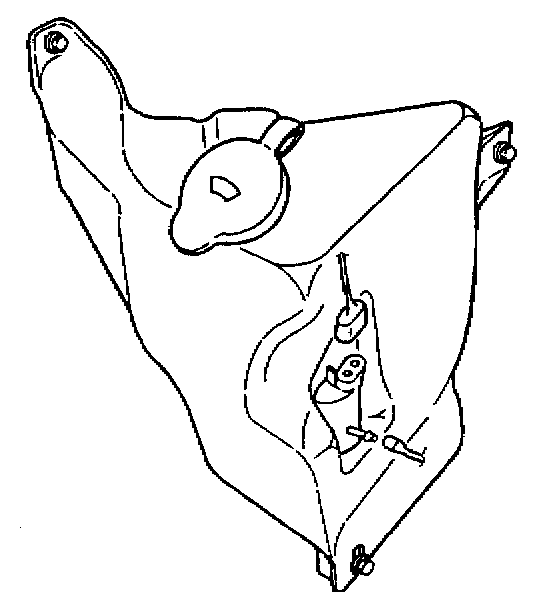

INSTALLATION PROCEDURE




1. Position the washer solvent container to the right side engine compartment.
2. Install the washer solvent container screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 10 N.m (89 lb in).




3. Connect the washer solvent container level sensor electrical connector.




4. Connect the rear washer pump electrical connector if equipped.
5. Connect the washer hose to the rear washer pump if equipped.




6. Connect the front washer pump electrical connector.
7. Connect the front washer hose to the front washer pump.
8. Fill the washer solvent container with washer solvent.
9. Install the battery.
