Wiper Motor Cover Replacement
WIPER MOTOR COVER REPLACEMENTREMOVAL PROCEDURE

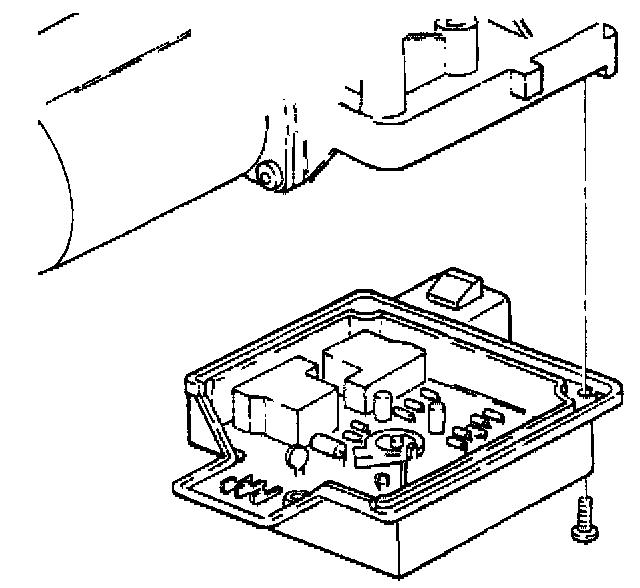

1. Remove the wiper system drive module.
2. Remove the wiper motor cover screws.
3. Remove the wiper motor cover from the wiper motor.
INSTALLATION PROCEDURE
1. Position the wiper motor cover to the wiper motor.
2. Install the wiper motor cover screws.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the screws to 3 N.m (27 lb in).
3. Install the wiper system drive module.
