Grille: Service and Repair

Grille Replacement

Removal Procedure

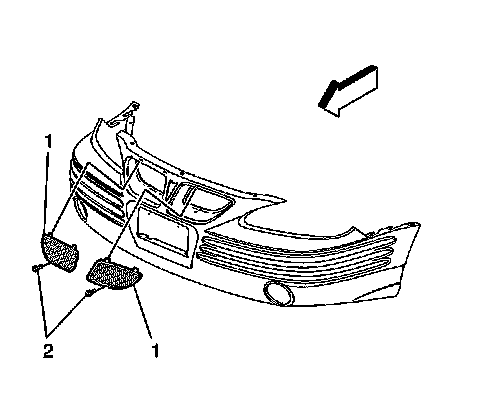

1. Remove the grille retaining screw (2).
2. Remove the grille assembly (1) from the front fascia.

Installation Procedure

1. Install the grille assembly (1) to the front fascia.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the grille retaining screw (2).

Tighten the grille retaining screw to 2 N.m (18 lb in).
