Power Door Lock Relay: Service and Repair
LOCK RELAY REPLACEMENT - POWER DOORREMOVAL PROCEDURE 1.
Remove the left instrument panel (I/P) outer trim cover.
2.

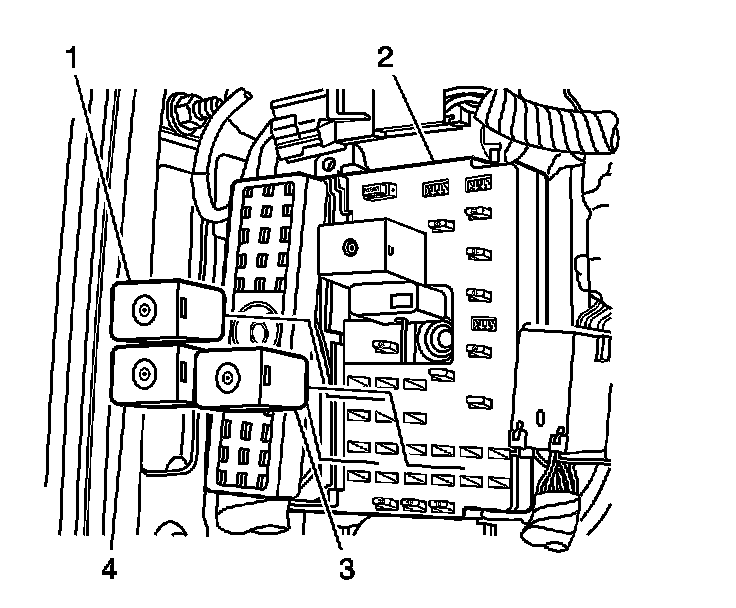

Pull the relay (1, 3, and or 4) out of the I/P wire harness junction block (2).
INSTALLATION PROCEDURE 1.

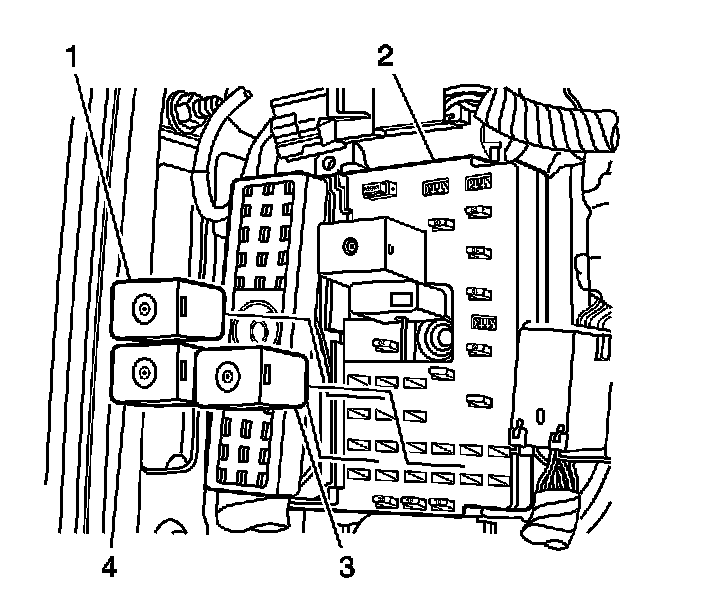

Install the relay (1, 3, and or 4) into the I/P wire harness junction block (2).
2.
Install the left I/P outer trim cover.
