Power Accessory Switch Panel Replacement

POWER ACCESSORY SWITCH PANEL REPLACEMENT

REMOVAL PROCEDURE

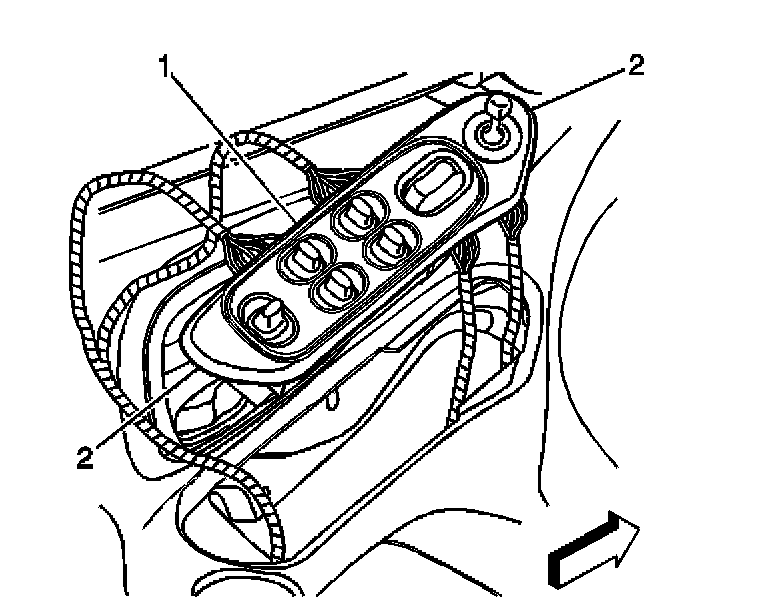

1. Push in and lift up the retaining clips (2) for the accessory switch plate (1).
2. Remove the accessory switch plate (1) from the door trim panel.
3. Disconnect the electrical connectors from power accessory switches.
4. Remove the power accessory switches from the accessory switch plate, if required.

INSTALLATION PROCEDURE
1. Install the power accessory switches to the accessory switch plate, if required.




2. Connect the electrical connectors to the power accessory switches.
3. Install the accessory switch plate (1) to the door trim panel.
4. Press the accessory switch plate into the door trim panel until retaining clips (2) are secured.
