Power Door Lock Switch Replacement

POWER DOOR LOCK SWITCH REPLACEMENT

REMOVAL PROCEDURE

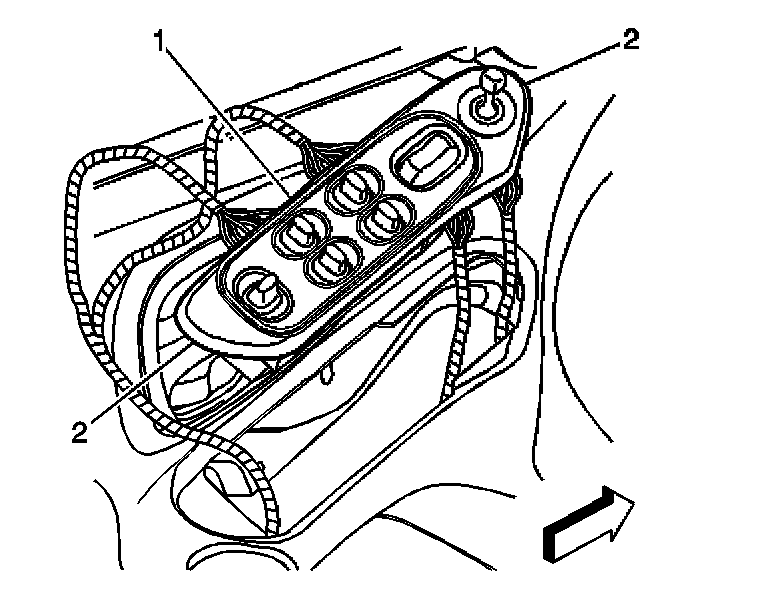

1. Push in and release the retaining clips (2) for the accessory switch plate (1).




2. Remove the accessory switch plate (1) from the door trim panel.
3. Disconnect the electrical connectors from the power door lock switch.

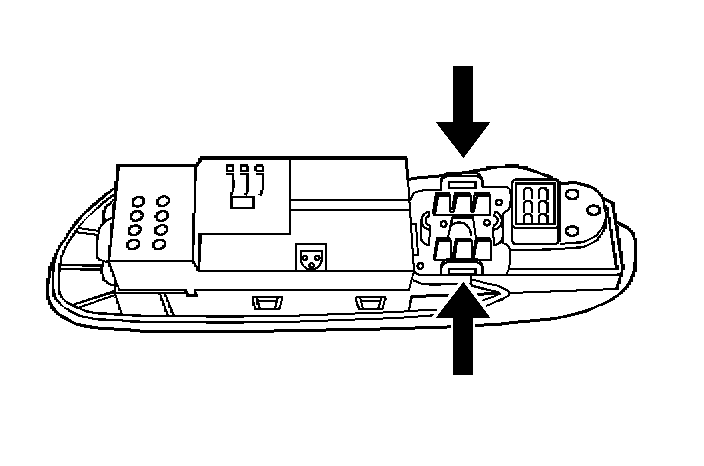

4. Release the retaining tabs for the power door lock switch.

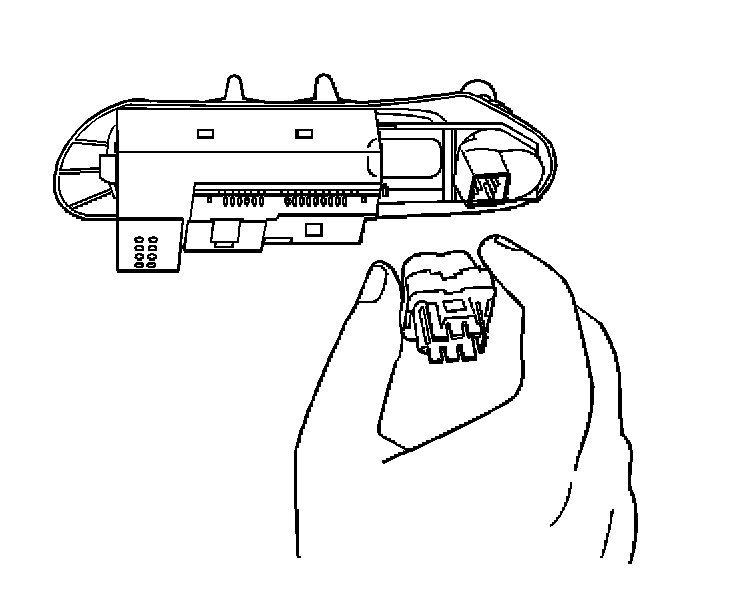

5. Remove the power door lock switch from the accessory switch plate.

INSTALLATION PROCEDURE




1. Install the power door lock switch to the accessory switch plate.
2. Press the power window switch into the accessory switch plate until the retaining tabs are engaged.
3. Connect the electrical connector to the power door lock switch.

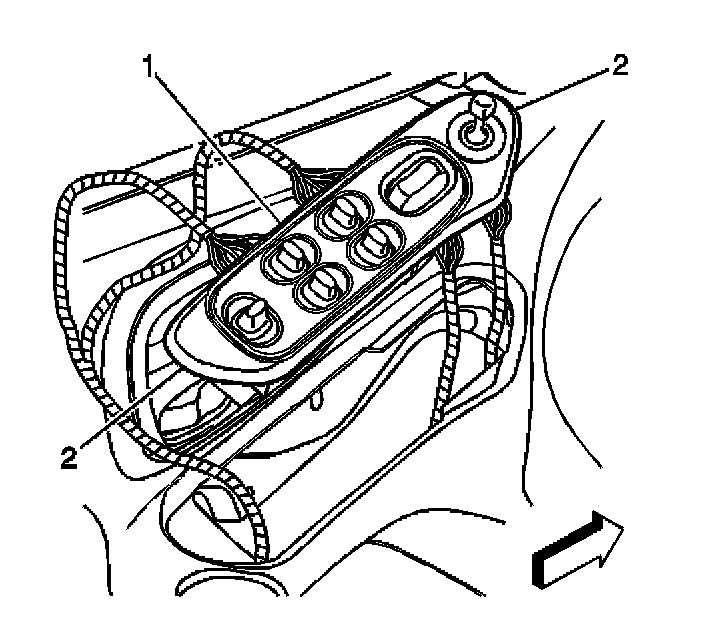

4. Install the accessory switch plate (1) to the door trim panel.
5. Press the accessory switch plate (1) into the door trim panel until the retaining clips (2) are fully engaged.
