Trunk / Liftgate Lock Cylinder: Service and Repair

Lock Cylinder Replacement - Rear Compartment Lid (Pontiac)

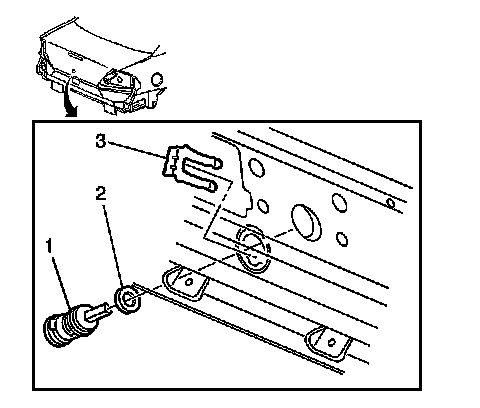

Removal Procedure

1. Remove the rear compartment lid lock assembly latch.




2. From inside the rear compartment lid, remove the lock cylinder retainer.
3. Remove the lock cylinder.

Installation Procedure

1. Position the lock cylinder in the rear compartment lid.




2. Install the lock cylinder retainer.
3. Install the rear compartment lid lock assembly latch. Ensure that the latch is fully seated. This action will engage the locking tabs.
