Seat Back Replacement - Front

SEAT BACK REPLACEMENT - FRONT

REMOVAL PROCEDURE
1. Remove the front bucket seat.
2. Position the seat back to the most forward position.

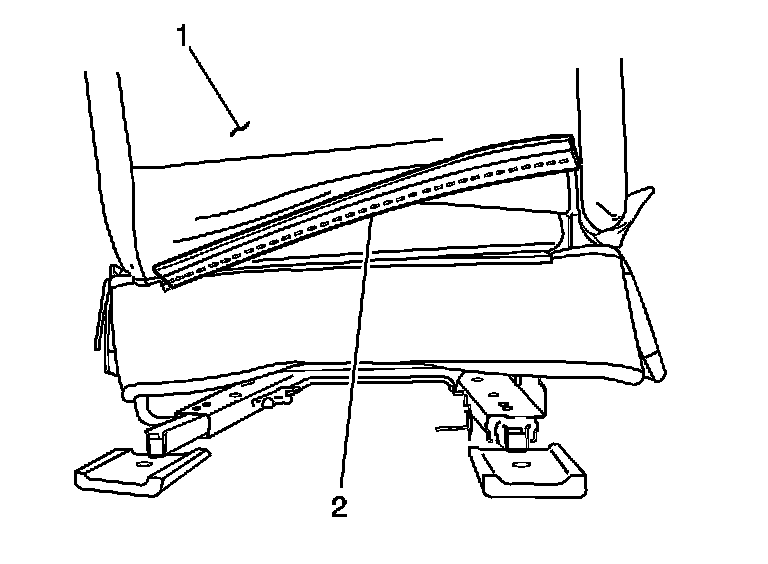

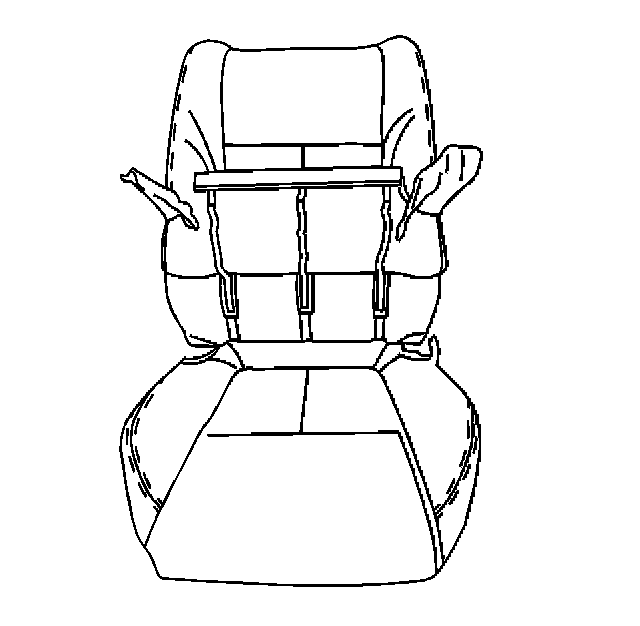

3. Unfasten the J-hook retainer (2) at the bottom of the seat back cover (1).




4. Remove enough of the cover in order to gain access to the seat back bolts.

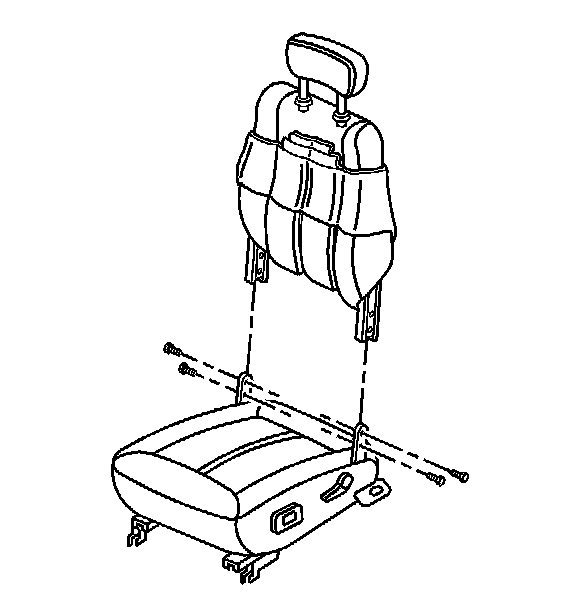

5. Remove the seat back bolts from the seat back recliner. Remove the seat back from the seat back recliner.

INSTALLATION PROCEDURE




1. Position the seat back to the seat back recliner.

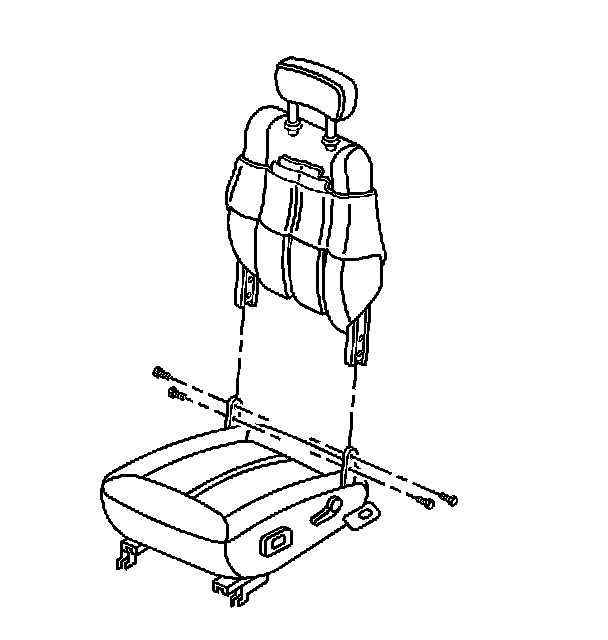

2. Install the seat back recliner bolts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the bolts to 24 N.m (18 lb ft).




3. Reposition the seat back cover to a desired appearance.

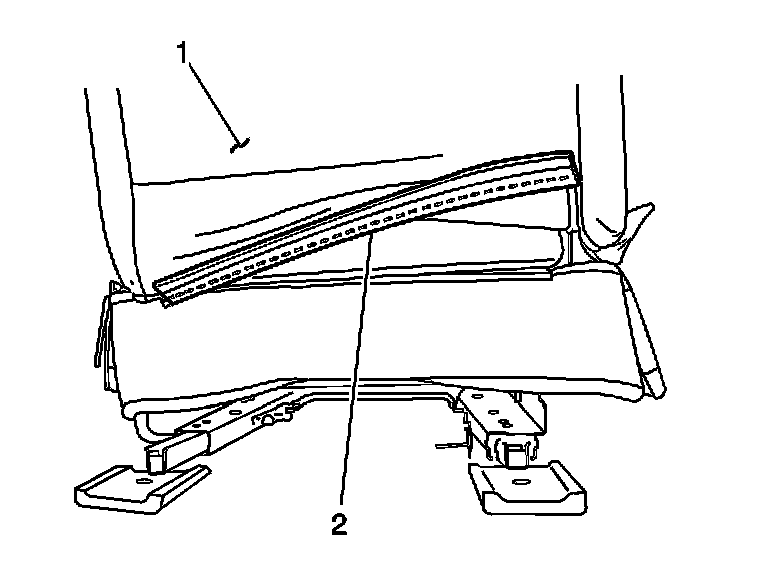

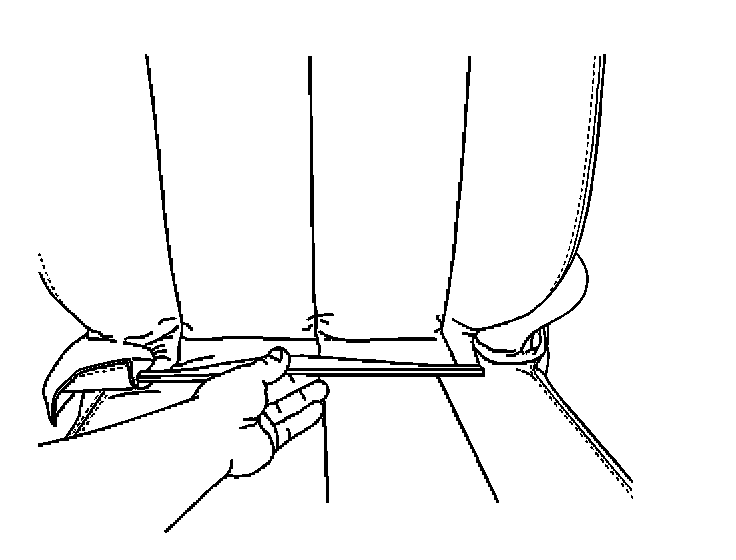

4. Fasten the J-hook retainer (2) at the bottom of the seat back cover (1).
5. Install the bucket seat.
6. Return the seat back to the original position.
