Engine Support Fixture

Engine Support Fixture

Tools Required
^ J 28467-B Universal Engine Support Fixture
^ J-28467-501
^ J 42451 Engine Lift Bracket

Installation Procedure

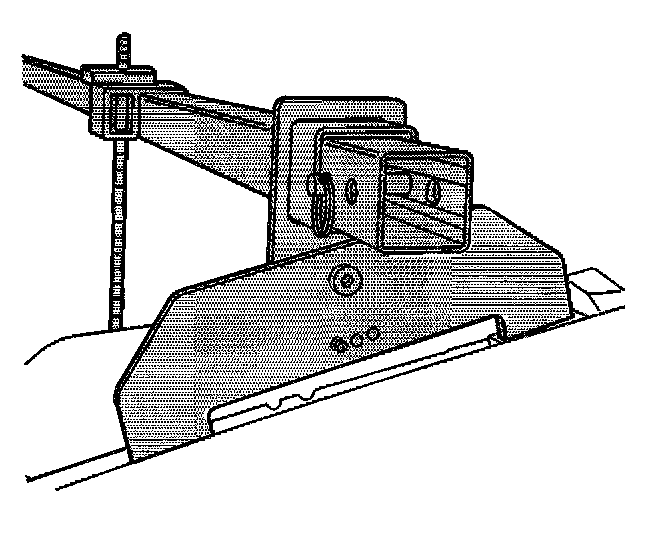

1. Install the J-28467-501 to the vehicle.

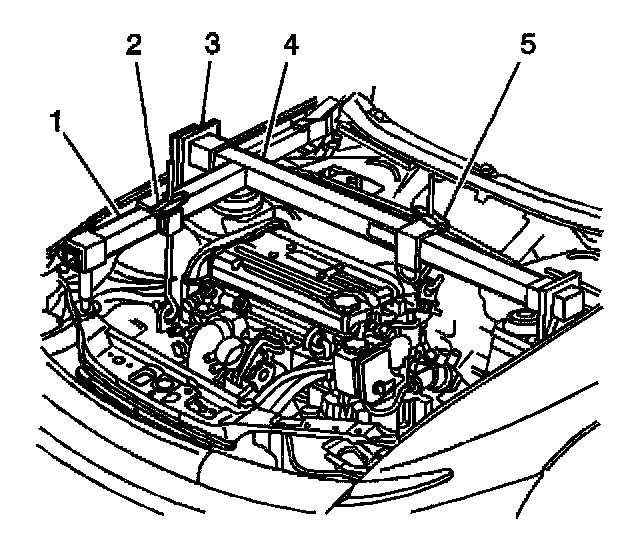

2. Install the J 28467-B and
3. Install the J 42451 or equivalent to the right rear of the cylinder head.





4. Install the J 28467-7 (2) to the engine front lift bracket.
5. Install the J 28467-8 (5) to the engine front lift bracket.
