Blower Motor: Service and Repair

BLOWER MOTOR REPLACEMENT

REMOVAL PROCEDURE




1. Remove the right side instrument panel (IP) insulator.
2. Reposition the BCM aside.

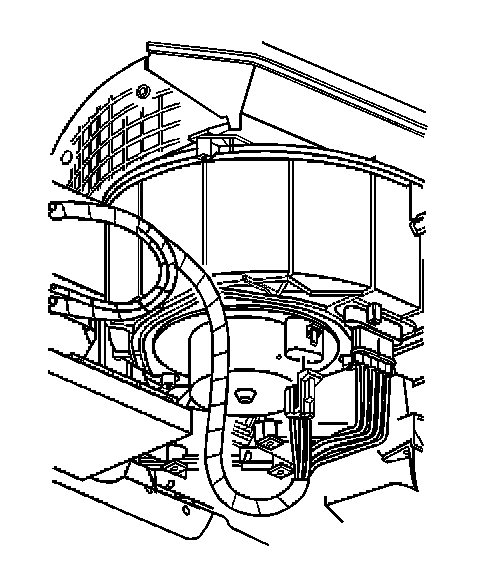

3. Disconnect the blower motor electrical connector.

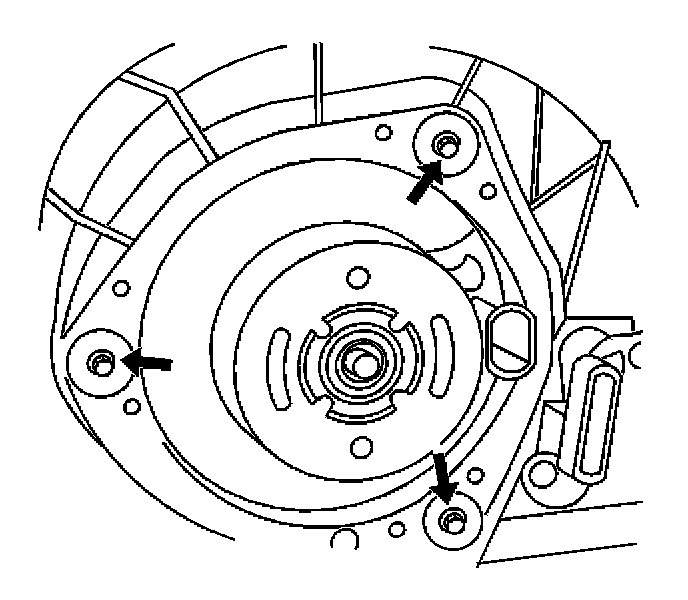

4. Remove the blower motor retaining screws.
5. Remove the blower motor and fan assembly.

INSTALLATION PROCEDURE




1. Install the blower motor and fan assembly.

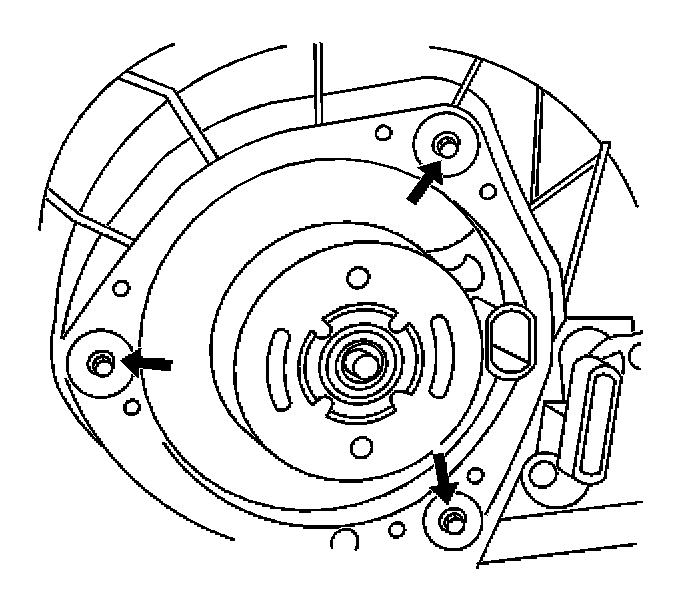

2. Install the blower motor and fan assembly screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 5 N.m (45 lb in).




3. Connect the blower motor electrical connector.
4. Install the BCM into position.
5. Install the right side IP insulator.
