Dimmer Switch: Service and Repair

INSTRUMENT PANEL (I/P) DIMMER SWITCH REPLACEMENT

REMOVAL PROCEDURE




1. Place the ignition switch in the OFF position.

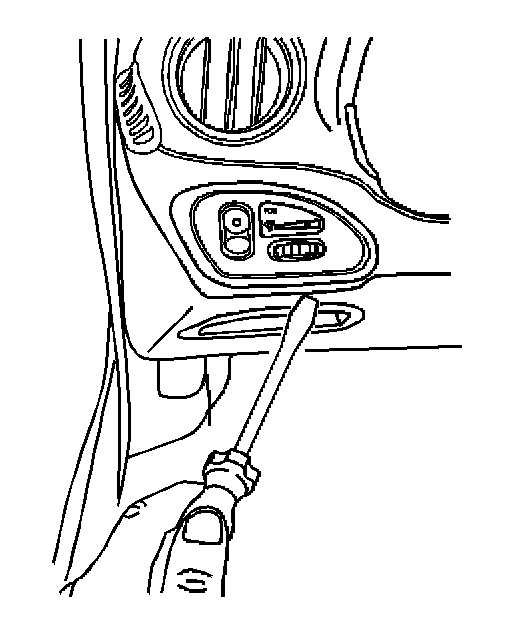

2. Remove the Instrument Panel (IP) switch trim plate using a small flat-bladed tool.

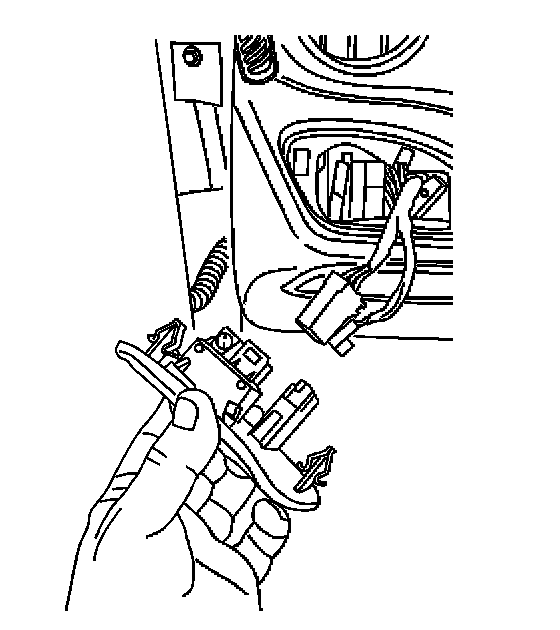

3. Disconnect the electrical connectors from the switches.

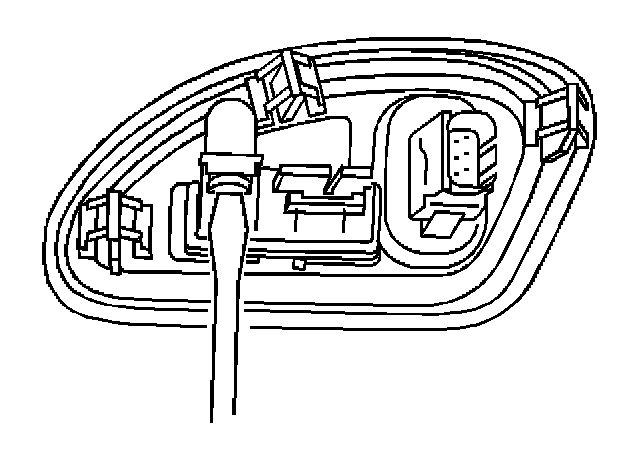

4. If required, remove the bulb from the IP lamp dimmer switch using a small flat-bladed tool, turning counterclockwise.

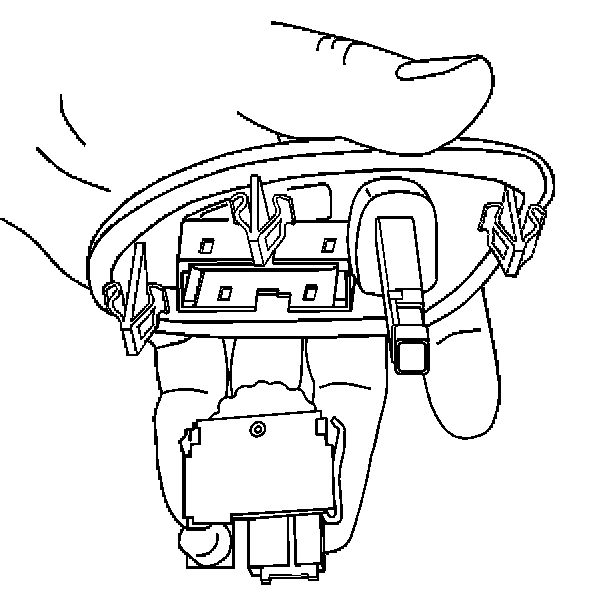

5. Disengage the retainers on the fog lamp dimmer switch.
6. Remove the dimmer switch.

INSTALLATION PROCEDURE

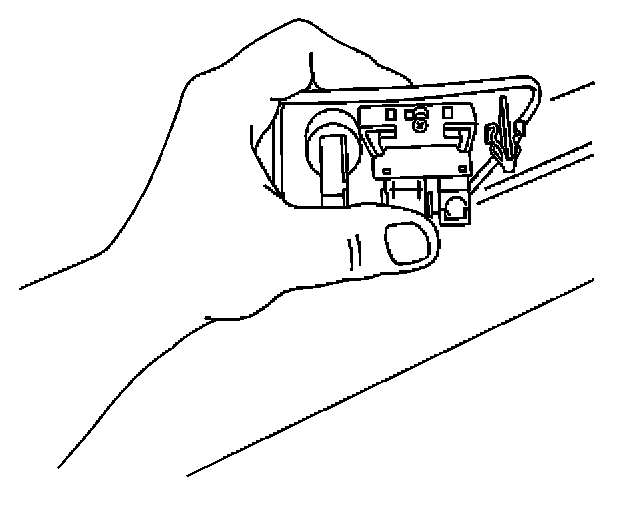

1. Install the dimmer switch to the trim plate by pressing into place until fully seated.

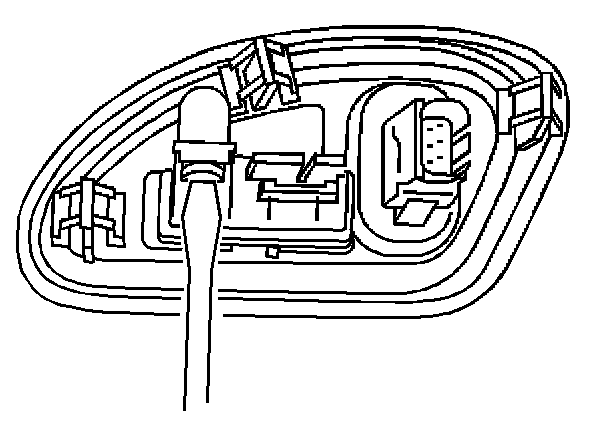

2. If required, install the bulb into the IP lamp dimmer switch using a small flat-bladed tool, turning clockwise.




3. Connect the electrical connectors to the switches.

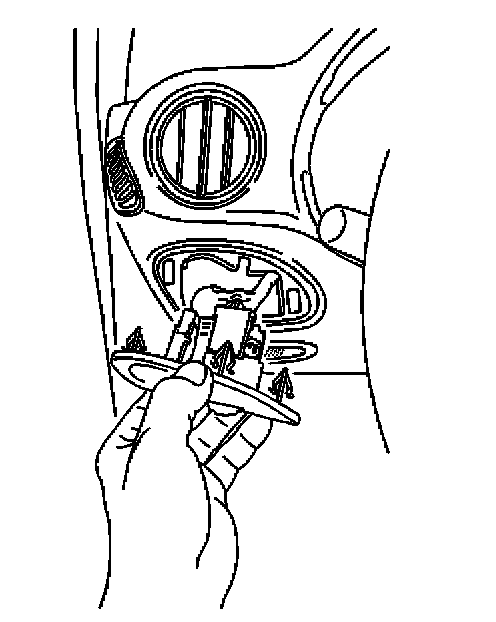

4. Install the IP switch trim plate by pressing into place until fully seated.
