Inlet

Radiator Hose Replacement - Inlet

^ Tools Required
- J 38185 Hose Clamp Pliers

Removal Procedure
1. Drain the cooling system.

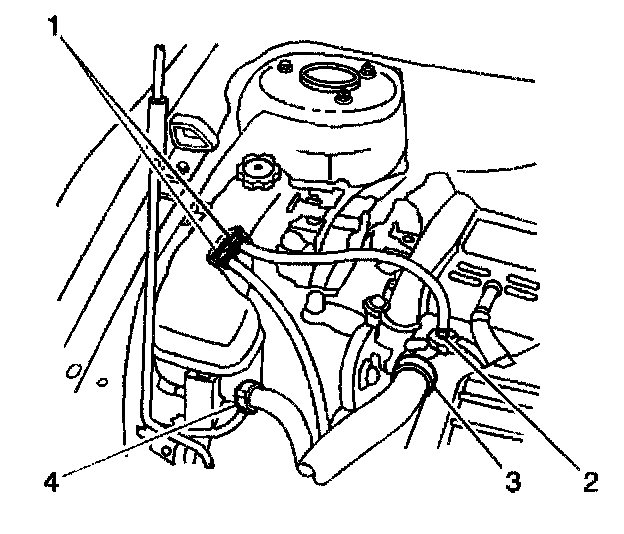

2. Use the J 38185 in order to reposition the outlet hose clamp from the cylinder head (2).
3. Remove the outlet hose from the cylinder head
Raise and suitably support the vehicle. Refer to Vehicle Lifting.

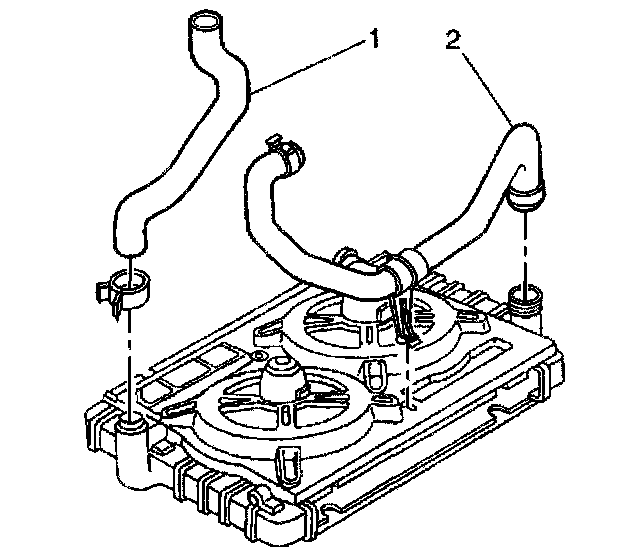

5. Use the J 38185 in order to reposition the outlet hose clamp from the radiator.
6. Remove the outlet hose (2) from the radiator.

Installation Procedure

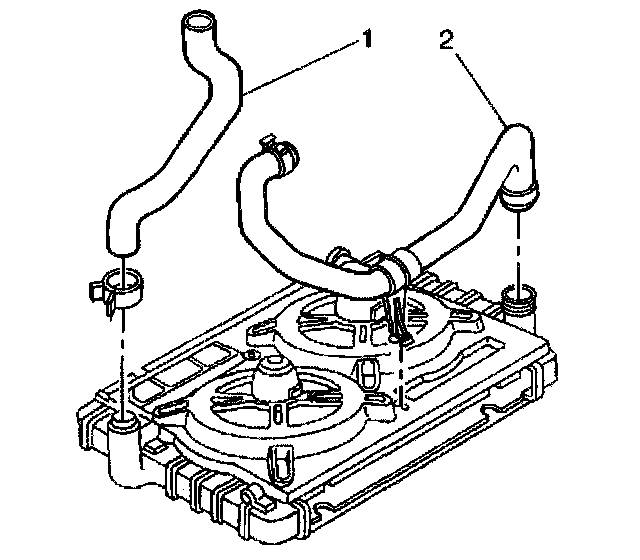

1. Install the outlet hose (2) to the radiator.





2. Use the J 38185 in order to reposition the outlet hose to the radiator.
3. Lower the vehicle.

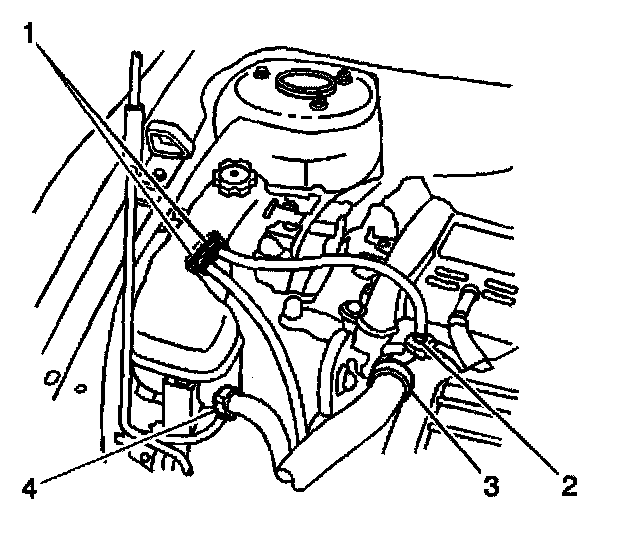

4. Install the outlet hose to the cylinder head (2).
5. Use the J 38185 in order to position the outlet hose to the cylinder head.
6. Fill the cooling system.
