Electrical Diagrams

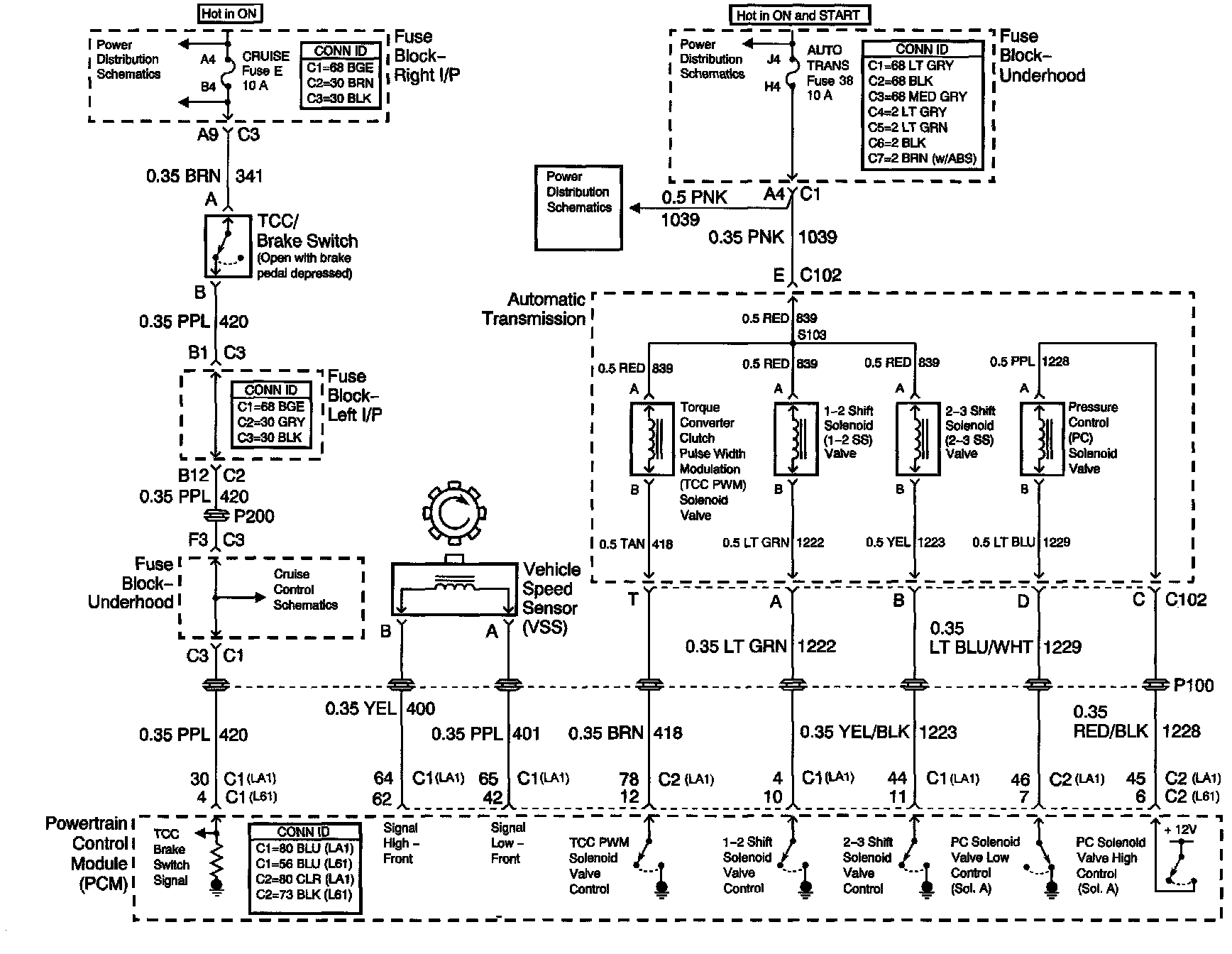

Transmission Solenoids, VSS, And TCC Brake Switch Signal:

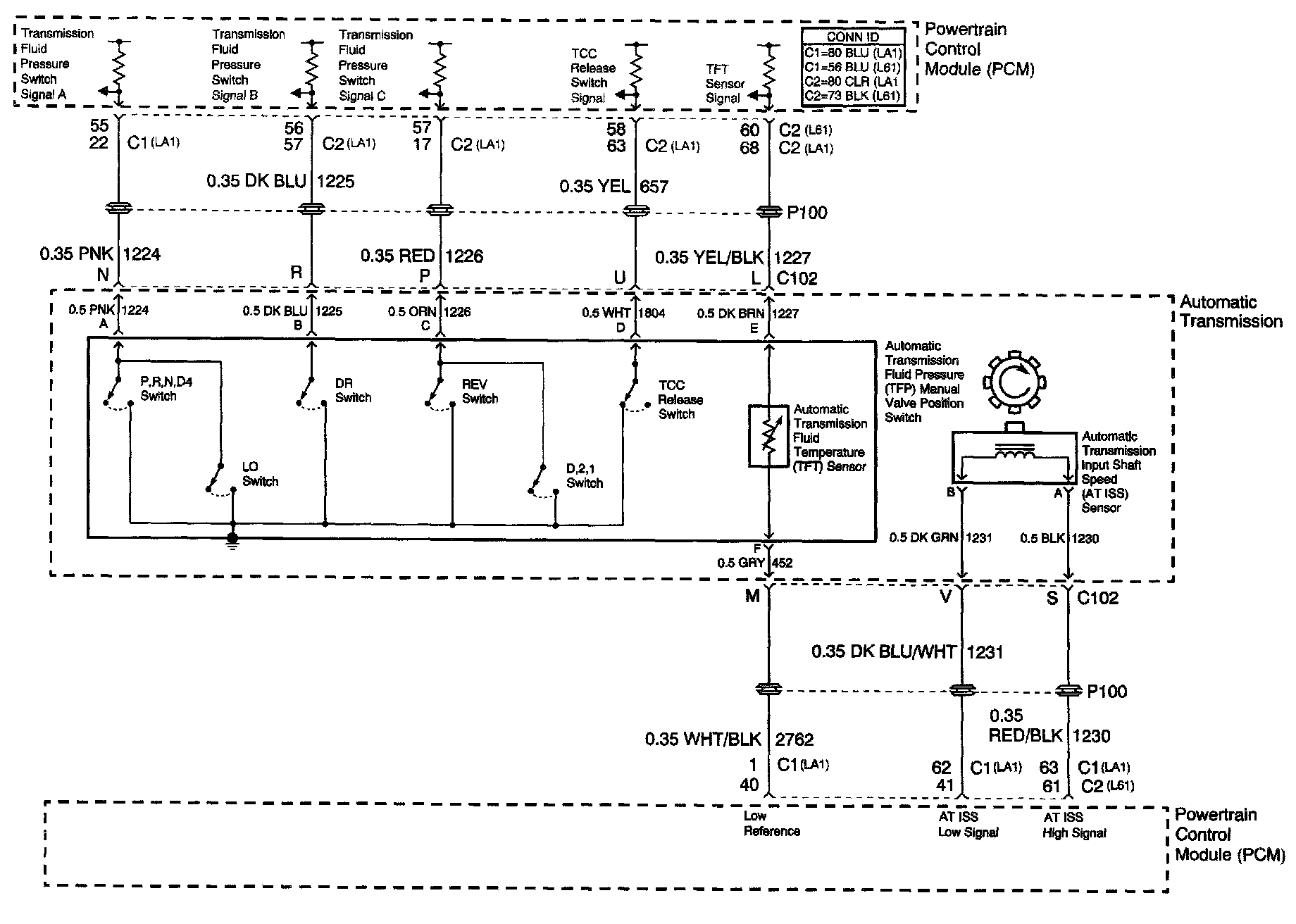

Transmission Switches, TFT, And A/T ISS Sensor:
Automatic Transmission Control Schematics (PNP Switch):
