Power Sunroof Does Not Close from Vent Position

POWER SUNROOF DOES NOT CLOSE FROM VENT POSITION

DIAGNOSTIC AIDS
The sunroof limit switch soft stop signal circuit can cause the sunroof not to respond correctly, if it were an open. If the circuits test OK, an intermittent or poor connection can also cause the sunroof not to operate normally.

TEST

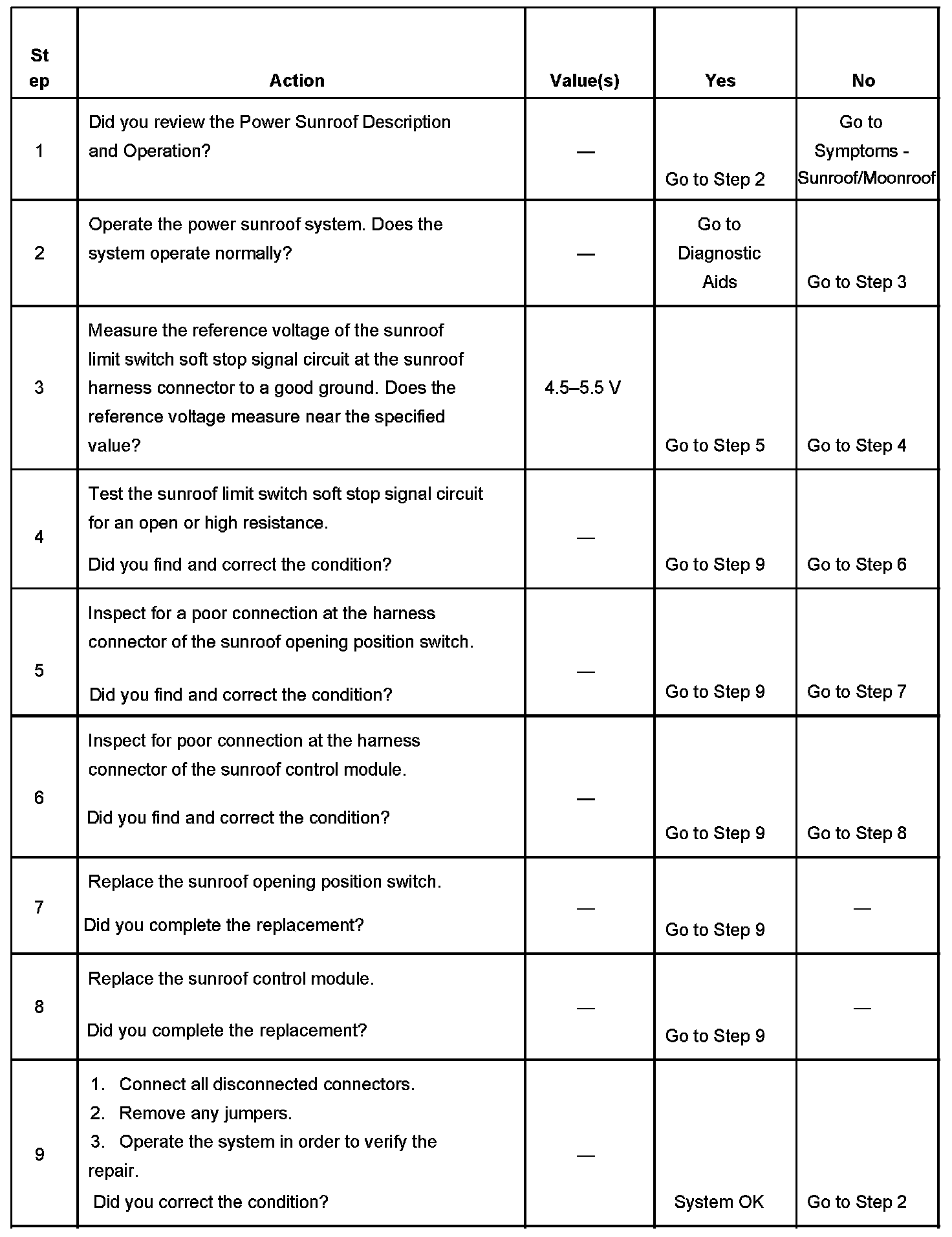

Steps 1-9:
