89. Engine Flywheel Installation

Engine Flywheel Installation

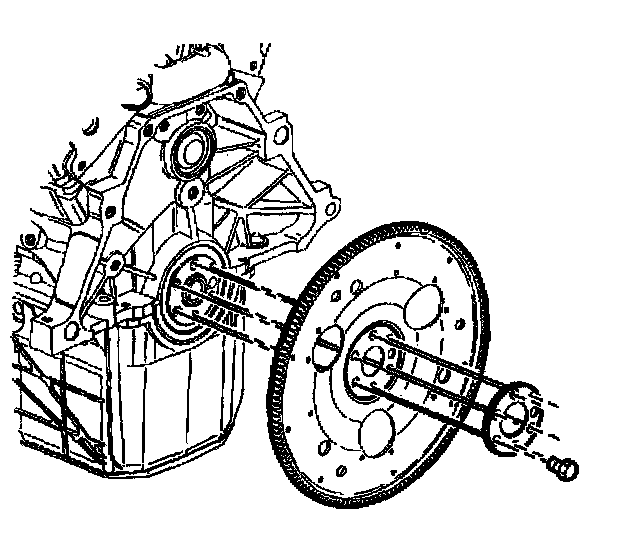

1. Install the flywheel.
2. Install the flywheel retainer.

Notice: Refer to Fastener Notice in Service Precautions.
Fastener Notice


3. Install the flywheel bolts.
- Tighten the flywheel bolts to 71 Nm (52 ft. lbs.).
