Home >> Pontiac >> 2003 >> Grand Prix V6-3.1L VIN J >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Actuators and Solenoids - A/T >> Shift Interlock Solenoid >> Diagrams

Shift Interlock Solenoid: Diagrams

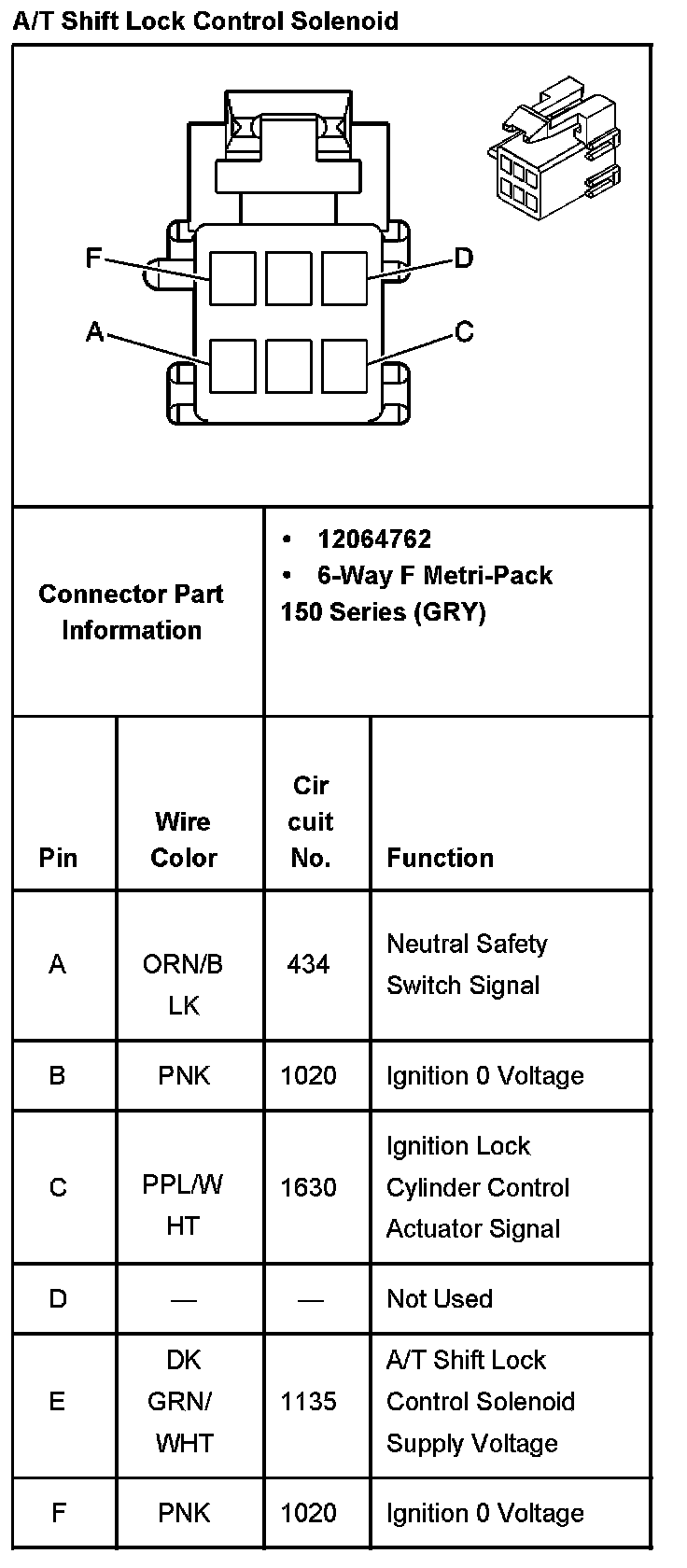

A/T Shift Lock Control Solenoid:
