Instrument Panel Cluster (IPC) - Indicator Lamp Replacement

INSTRUMENT PANEL CLUSTER (IPC) INDICATOR LAMP REPLACEMENT

REMOVAL PROCEDURE
1. Remove the instrument panel (IPC) cluster.

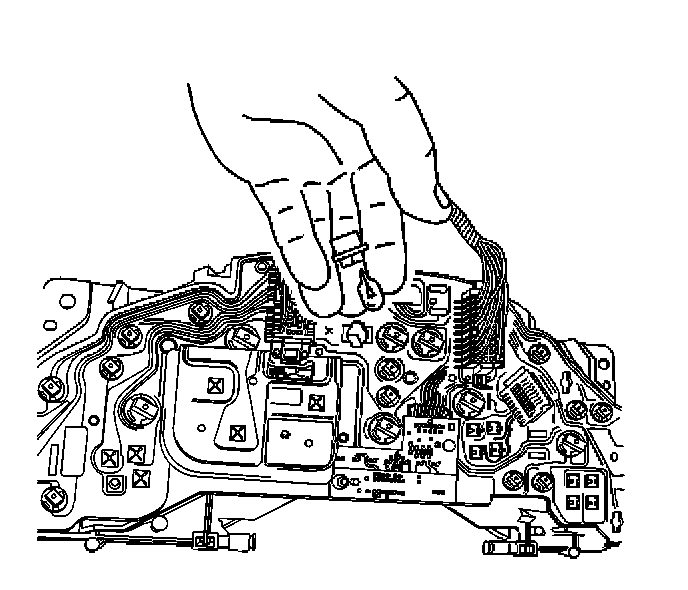

2. Rotate the inoperative lamp counterclockwise.




3. Remove the lamp from the cluster.




4. Pull the bulb from the lamp socket.

INSTALLATION PROCEDURE




1. Install the bulb to the lamp socket by pressing the bulb into place until seated correctly.




2. Position the lamp into the cluster opening.




3. Rotate the lamp clockwise.
4. Install the IPC.
