Outlet

Radiator Hose Replacement - Outlet

Tools Required
- J 38185 Hose Clamp Pliers


Removal Procedure
1. Drain the cooling system.
2. Remove the lower air deflector.
3. Use J 38185 in order to reposition the hose clamp from the radiator.

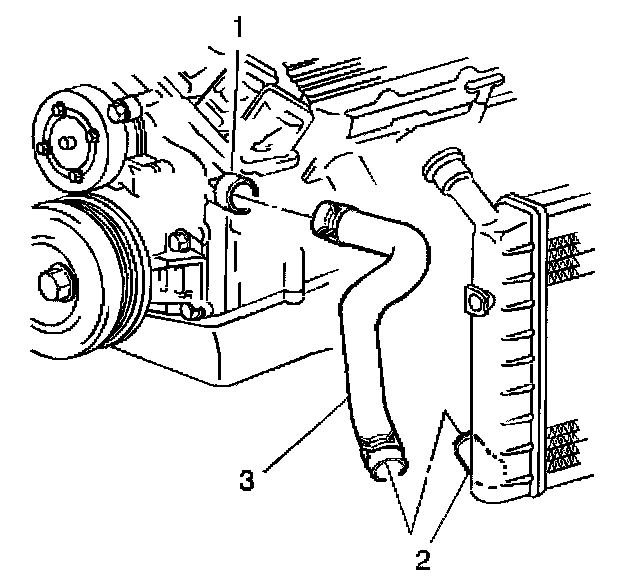

4. Remove the radiator hose (3) from the radiator outlet (2).
5. Lower the vehicle.

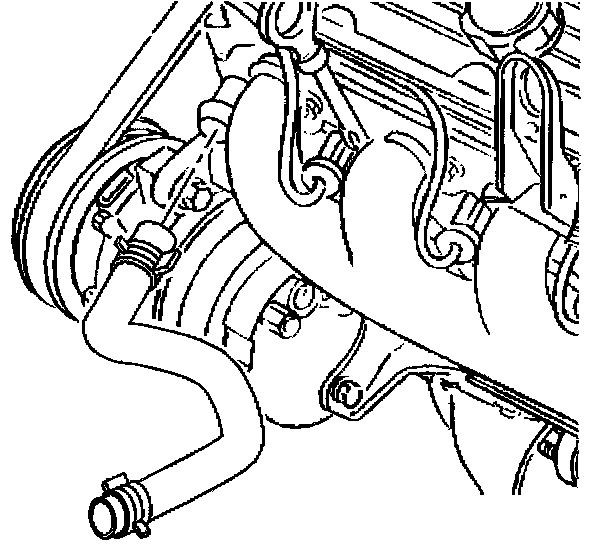

6. Use J 38185 in order to reposition the hose clamp from the water pump housing.







7. Remove the radiator outlet hose from the water pump housing.



Installation Procedure







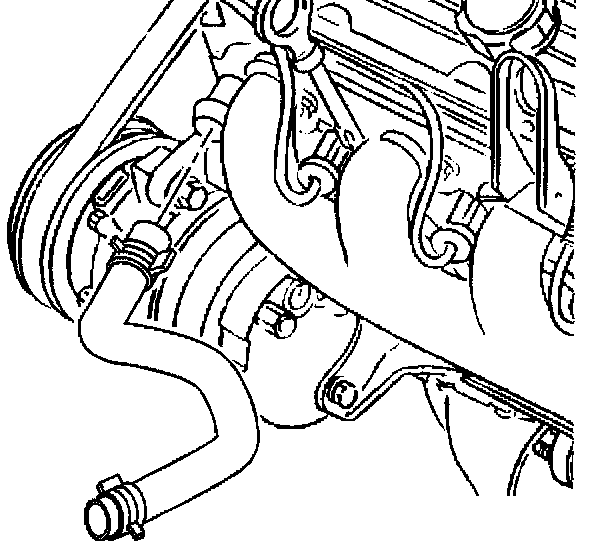

1. Align the marks on the hose. Install the radiator outlet hose to the water pump housing.
2. Use J 38185 in order to reposition the hose clamp to the water pump housing.
3. Raise and support the vehicle.

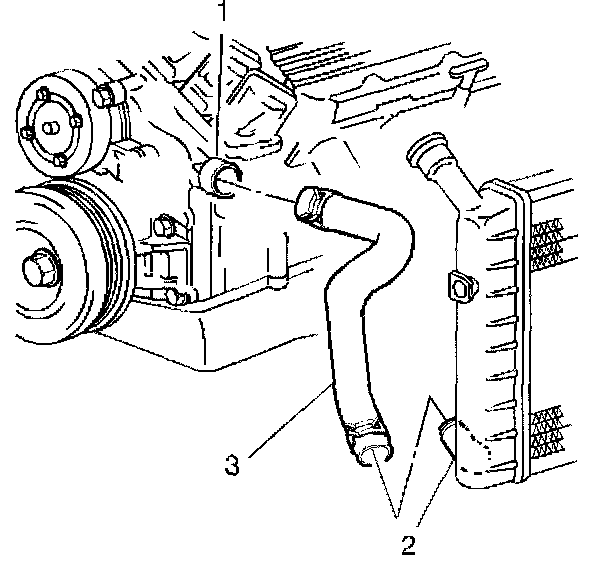

4. Install the radiator hose (3) onto the outlet port (2) of the radiator.
5. Use J 38185 in order to reposition the hose clamp to the radiator.
6. Install the lower air deflector.
7. Fill the cooling system.
