Power Trunk / Liftgate Lock Actuator

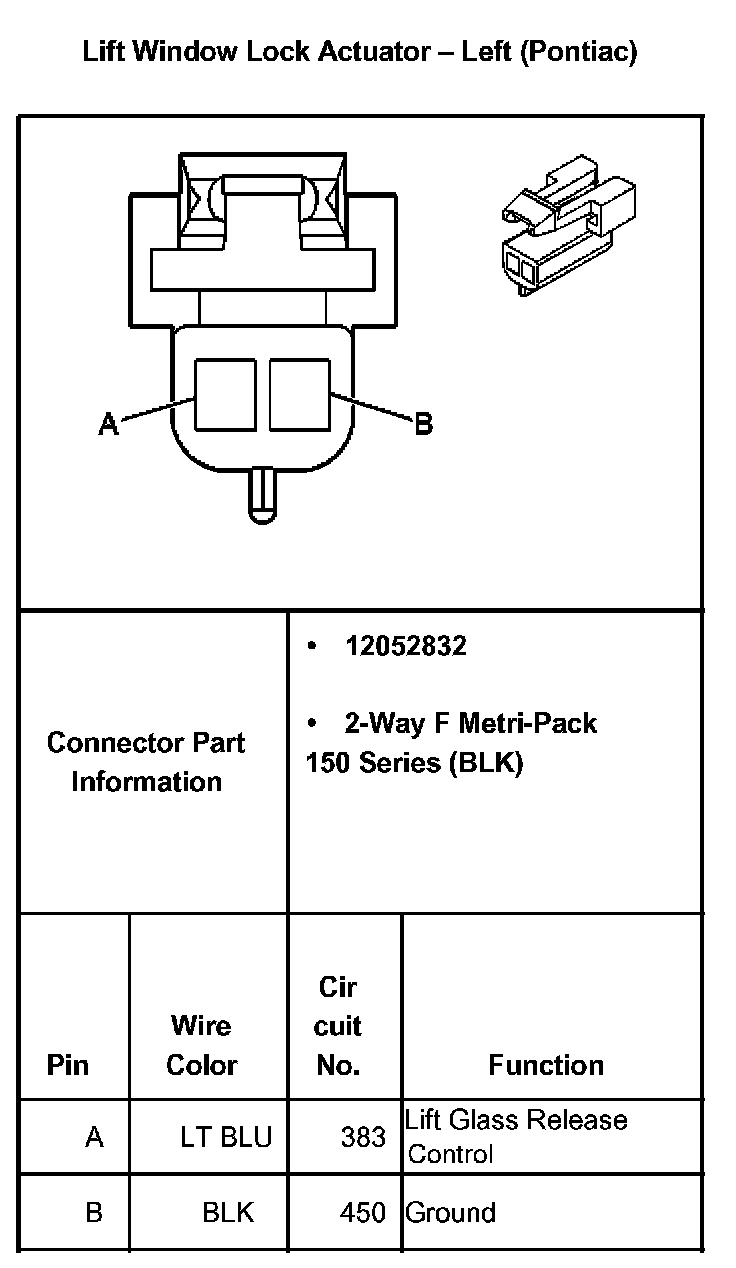

Lift Window Lock Actuator-Left:

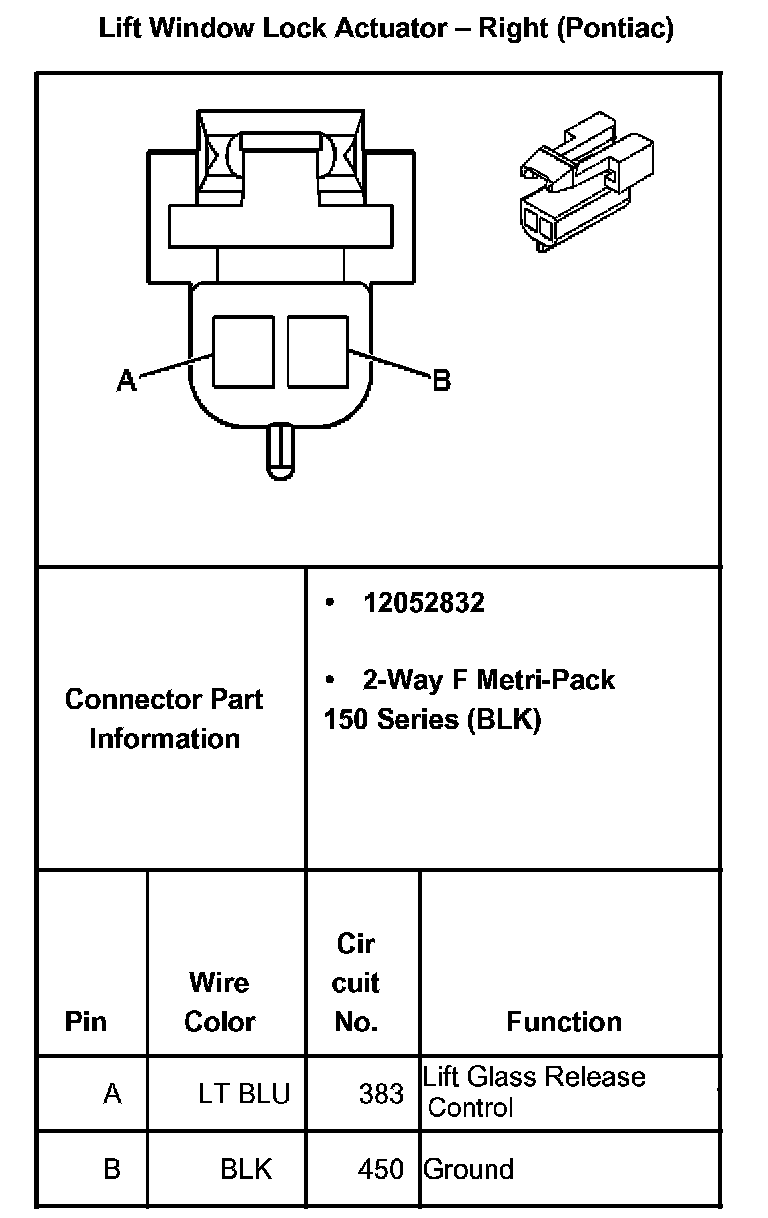

Lift Window Lock Actuator-Right:
