Deflector Replacement - Instrument Panel Air
DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIRREMOVAL PROCEDURE 1.

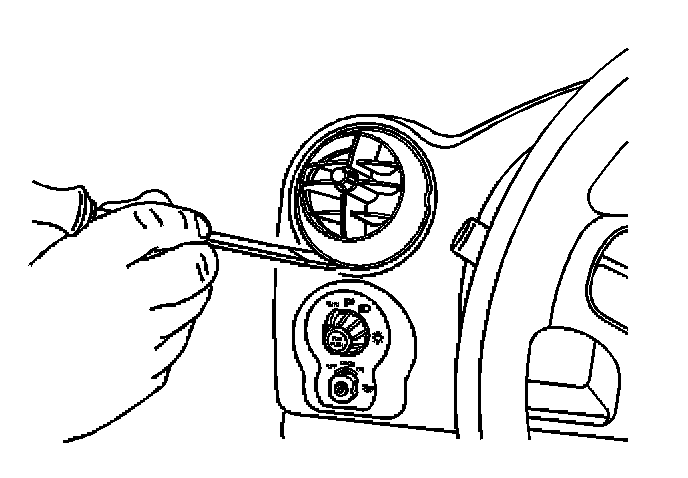

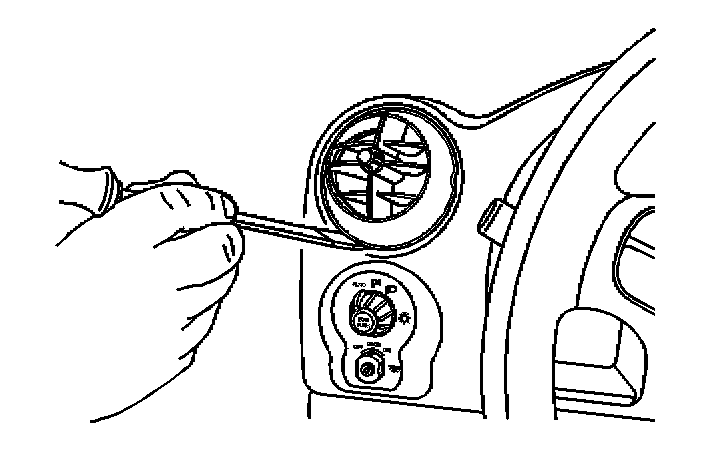

Use a flat-bladed tool in order to release the bottom of the deflector from the trim bezel.
2.
Remove the deflector from the I/P trim bezel.
INSTALLATION PROCEDURE 1.

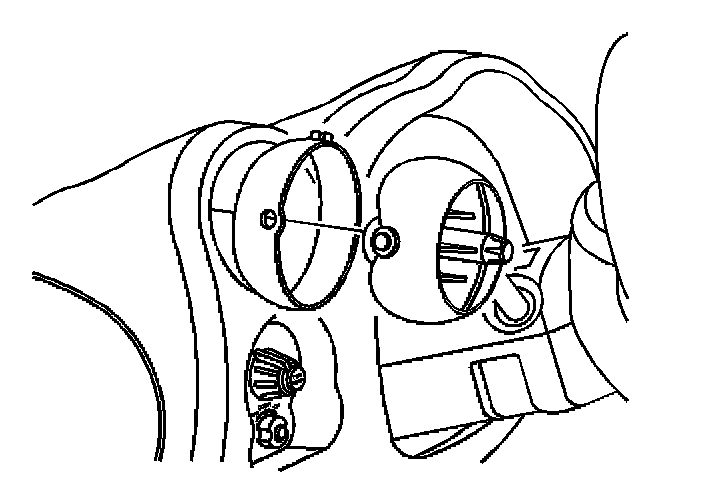

Install the deflector to the I/P trim bezel.
2.
Push the deflector until the deflector is seated.
3.
Inspect the deflector for proper operation.
