Backup Lamp: Service and Repair

BACKUP LAMP REPLACEMENT

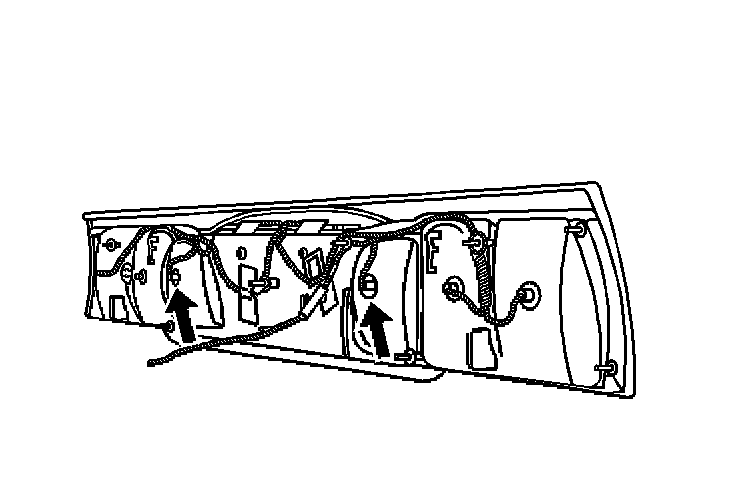

REMOVAL PROCEDURE

1. Remove the lift gate applique.
2. Remove the backup lamp bulb/sockets from the applique by rotating counterclockwise.
3. Remove the backup lamp bulbs from the socket, if required.

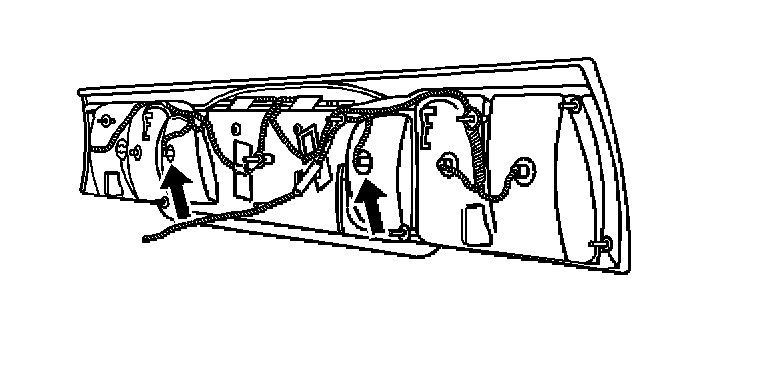

INSTALLATION PROCEDURE

1. Install the backup lamp bulbs to the socket, if removed.
2. Install the backup lamp bulb/socket to the applique by rotating clockwise.
3. Install the lift gate applique.
