Flex Plate: Service and Repair

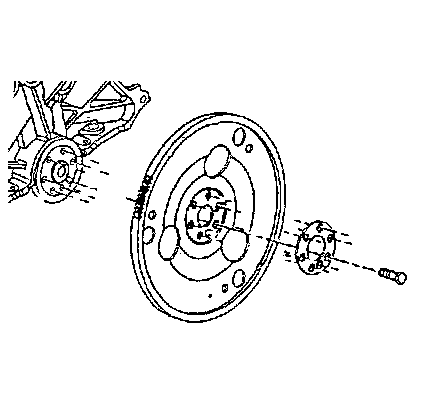

Engine Flywheel Replacement

Removal Procedure

1. Remove the automatic transaxle.
2. Remove the engine flywheel bolts and flywheel.
3. Clean the engine flywheel bolt threads and bolt holes.
4. Clean and inspect the engine flywheel.

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.

1. Install the engine flywheel and bolts
Tighten bolts to 71 Nm (52 lb ft).
2. Install the automatic transaxle.
