Wiper Motor Cover Replacement

WIPER MOTOR COVER REPLACEMENT

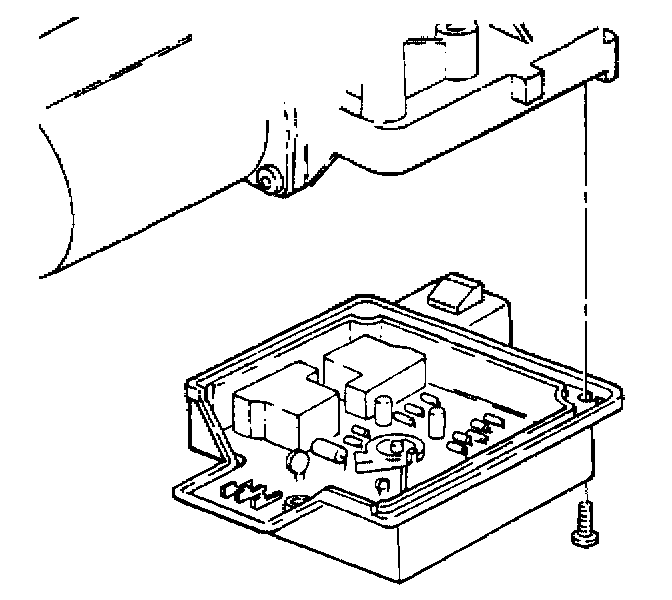

REMOVAL PROCEDURE




1. Remove the wiper system drive module.
2. Remove the wiper motor cover screws.
3. Remove the wiper motor cover from the wiper motor.

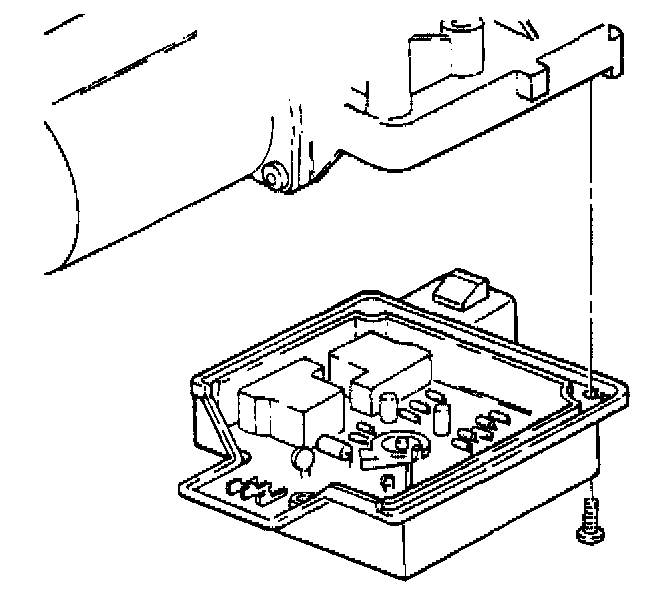

INSTALLATION PROCEDURE




1. Position the wiper motor cover to the wiper motor.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the wiper motor cover screws.

Tighten
Tighten the screws to 3 N.m (27 lb in).

3. Install the wiper system drive module.
