Keyless Entry Receiver: Service and Repair
REMOTE CONTROL DOOR LOCK RECEIVER REPLACEMENTREMOVAL PROCEDURE

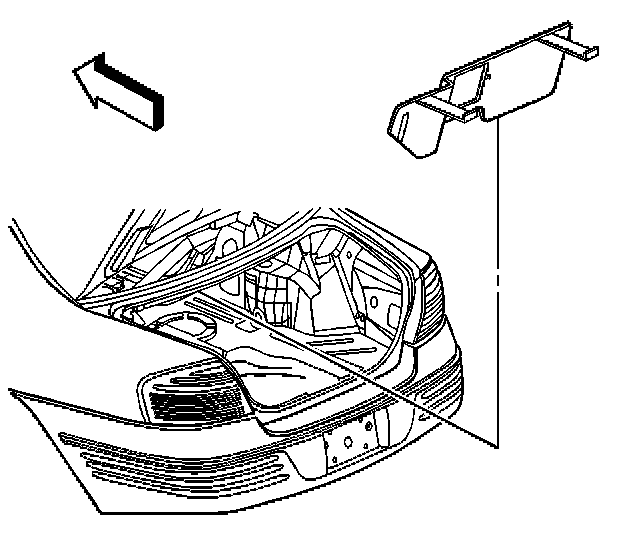

1. Remove the front trim from inside of the rear storage compartment.
2. Disconnect the electrical connector.

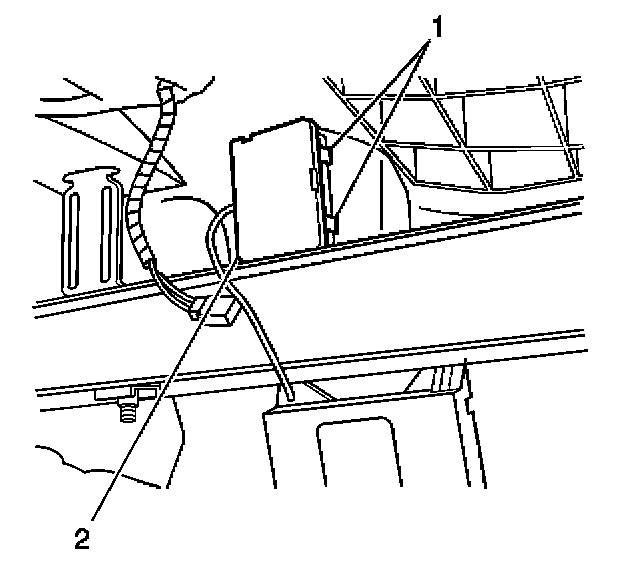

3. Depress the retainer tabs (1).
4. Remove the remote control door lock receiver module (2).
INSTALLATION PROCEDURE

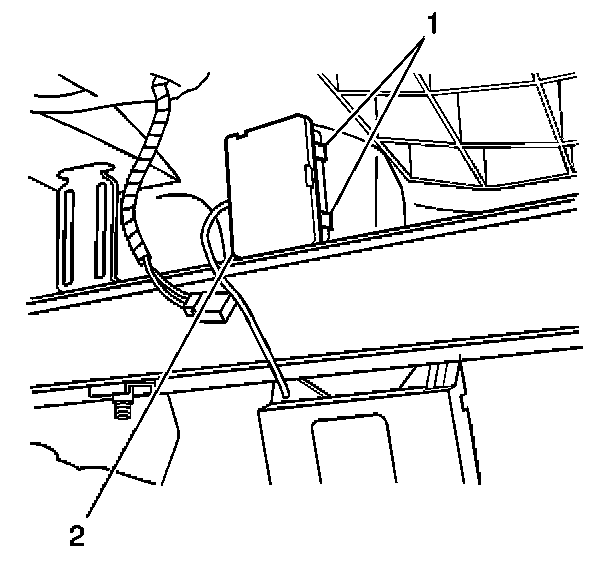

1. Snap the remote control door lock receiver module (2) into the slots in the rear compartment.
2. Connect the electrical connector.

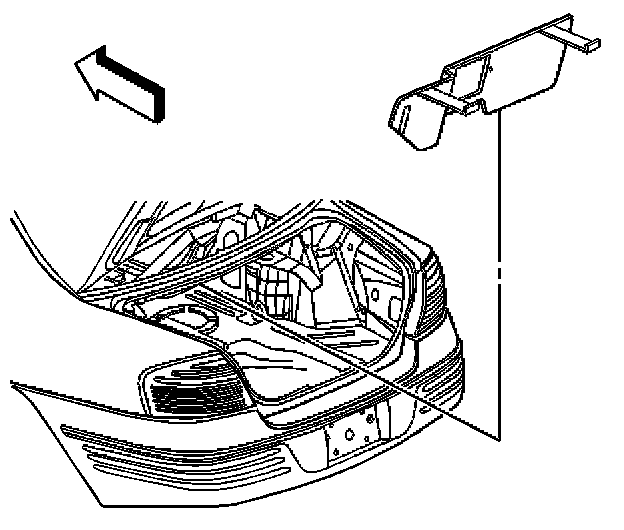

3. Install the rear compartment trim.
4. Program the remote control door lock receiver module. Refer to Transmitter Programming. Programming and Relearning
