Torque Specifications

TORQUE SPECIFICATIONS

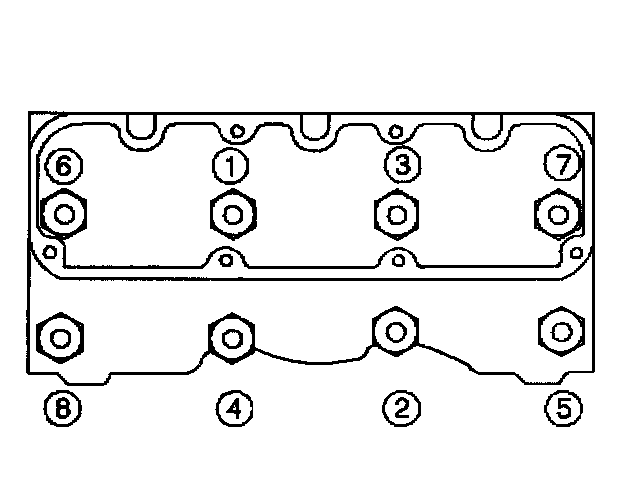

LEFT

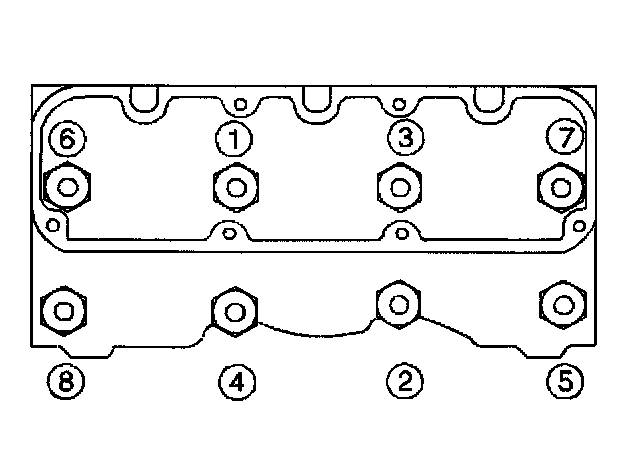

RIGHT

Cylinder Head Bolt
First Pass 50 Nm (37 ft. lbs.)
Final Pass 120 degrees
Bolt Re-use Always new
