Center Console End Panel Replacement



Center Console End Panel Replacement

Removal Procedure

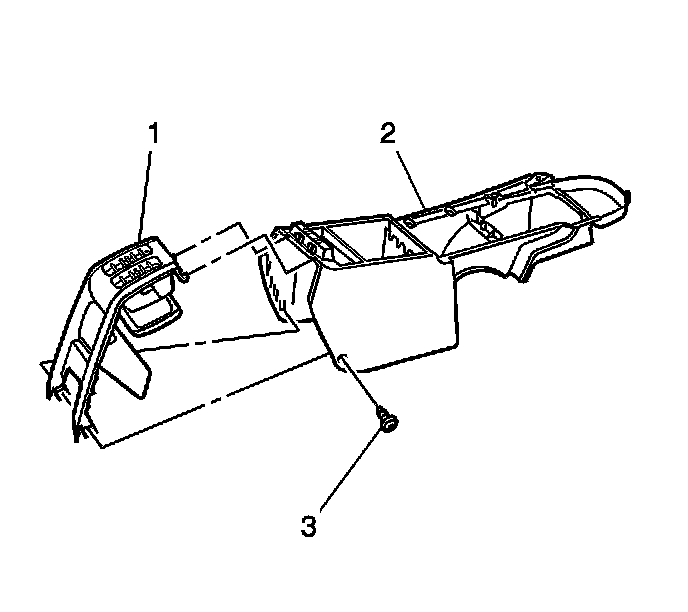

1. Remove the screws (3) from each side of the floor console (2) attaching the center console end panel (1) to the floor console (2).
2. Remove the center console end panel (1) by swinging the lower edge rearward and detaching the upper tabs.
3. Remove the console end panel storage compartment, if necessary. Refer to Storage Compartment Replacement - Console End Panel (Storage Compartment Replacement - Console End Panel) .



Installation Procedure

1. Install the console end panel storage compartment, if removed. Refer to Storage Compartment Replacement - Console End Panel (Storage Compartment Replacement - Console End Panel) .




2. Install the center console end panel (1) to the floor console (2) making sure the upper tabs are engaged.

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the screws (3) on each side of the floor console (2) attaching the center console end panel (1).

Tighten the screws (3) to 2 N.m (18 lb in).
