Power Mirror Switch: Service and Repair

Power Mirror Switch Replacement







Removal Procedure

Important: When removing a power mirror switch, the ignition switch must be in the OFF position. This will eliminate the possibility to shorting out the power mirror switch when using a metal tool to remove the power mirror switch from the wiring harness.

1. Remove the door trim panel.

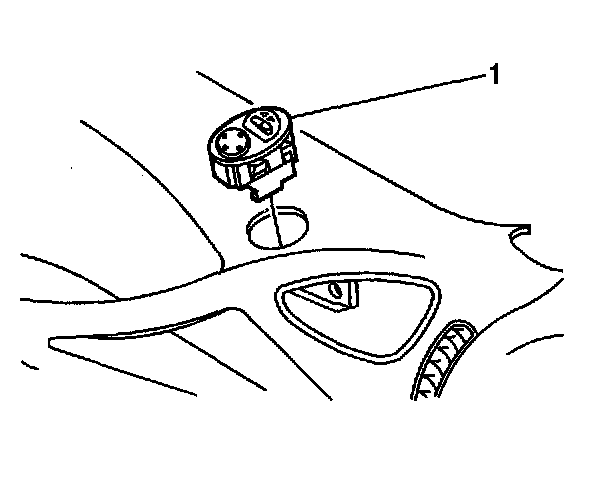

2. Disengage the electrical connectors from the power mirror switch (1).
3. From behind the door trim panel, push the power mirror switch (1) tree by depressing the tabs.








Installation Procedure

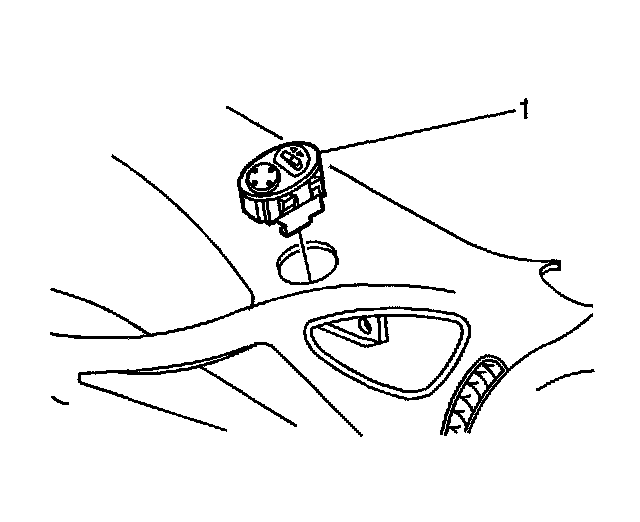

1. Install the power mirror switch (1) to the door trim panel.
2. Connect the electrical connector to the power mirror switch (1).
3. Install the door trim panel.
