Splice/Splice Packs By Number

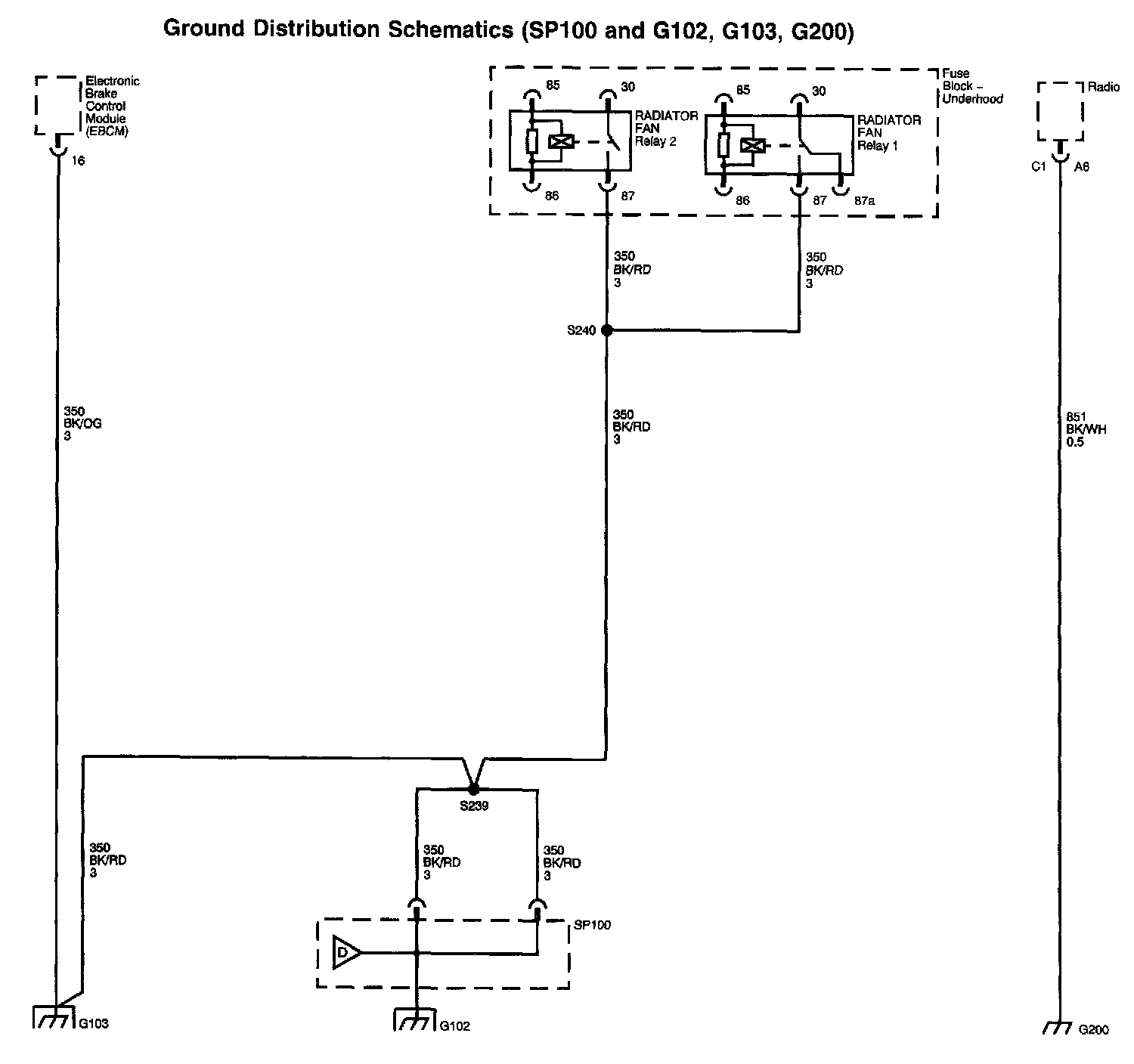

Ground Distribution Diagram 1:

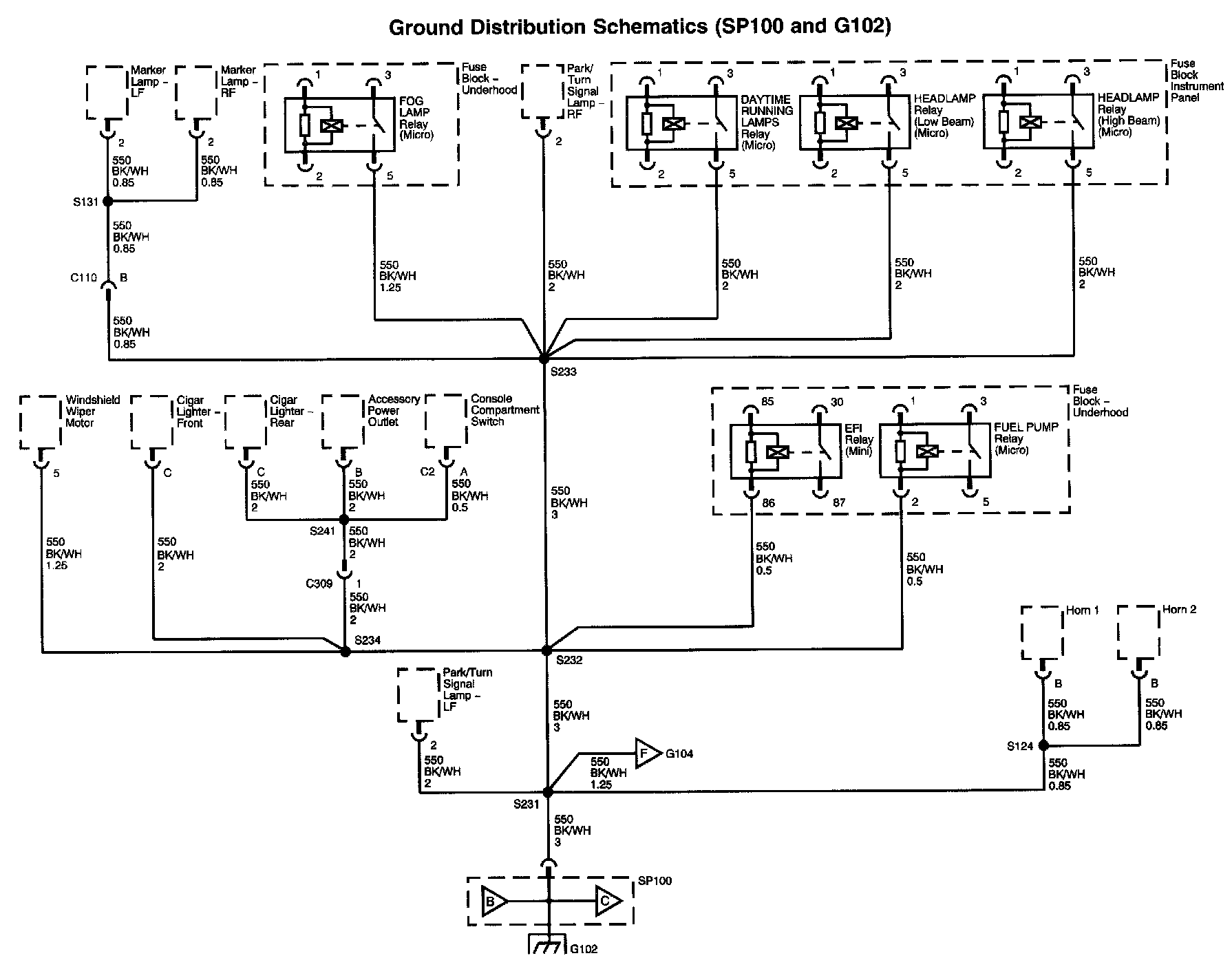

Ground Distribution Diagram 2:

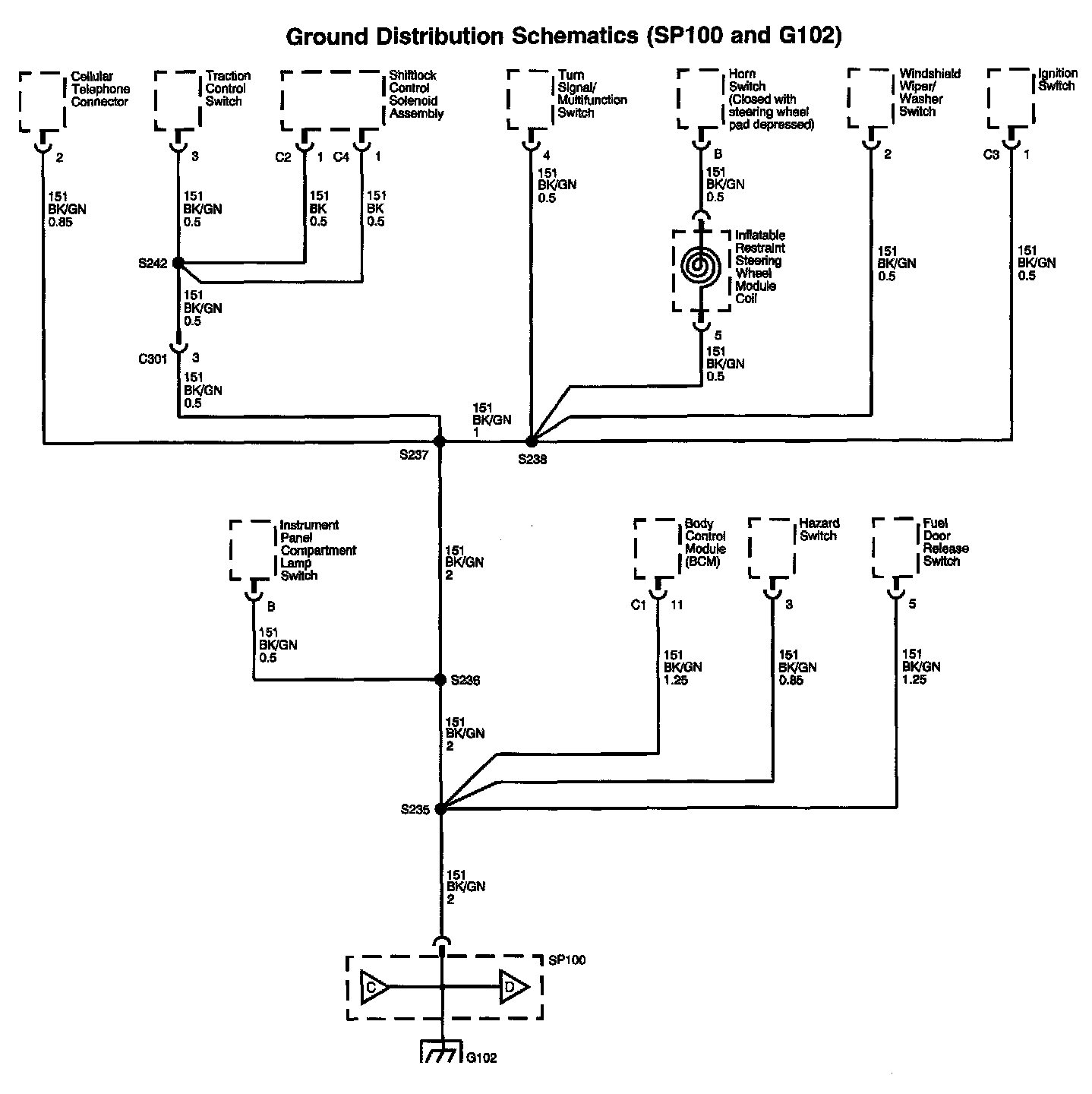

Ground Distribution Diagram 3:

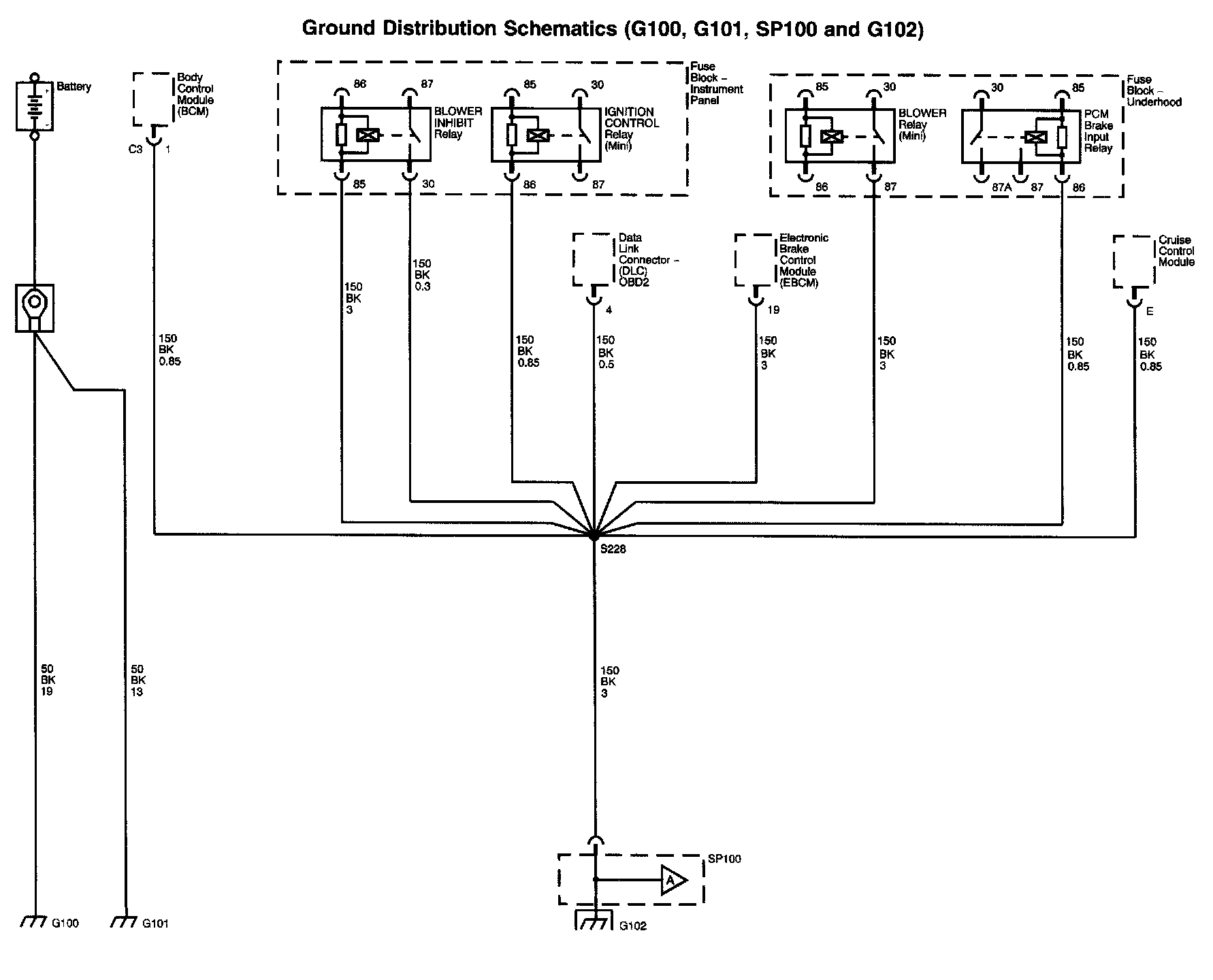

Ground Distribution Diagram 4:

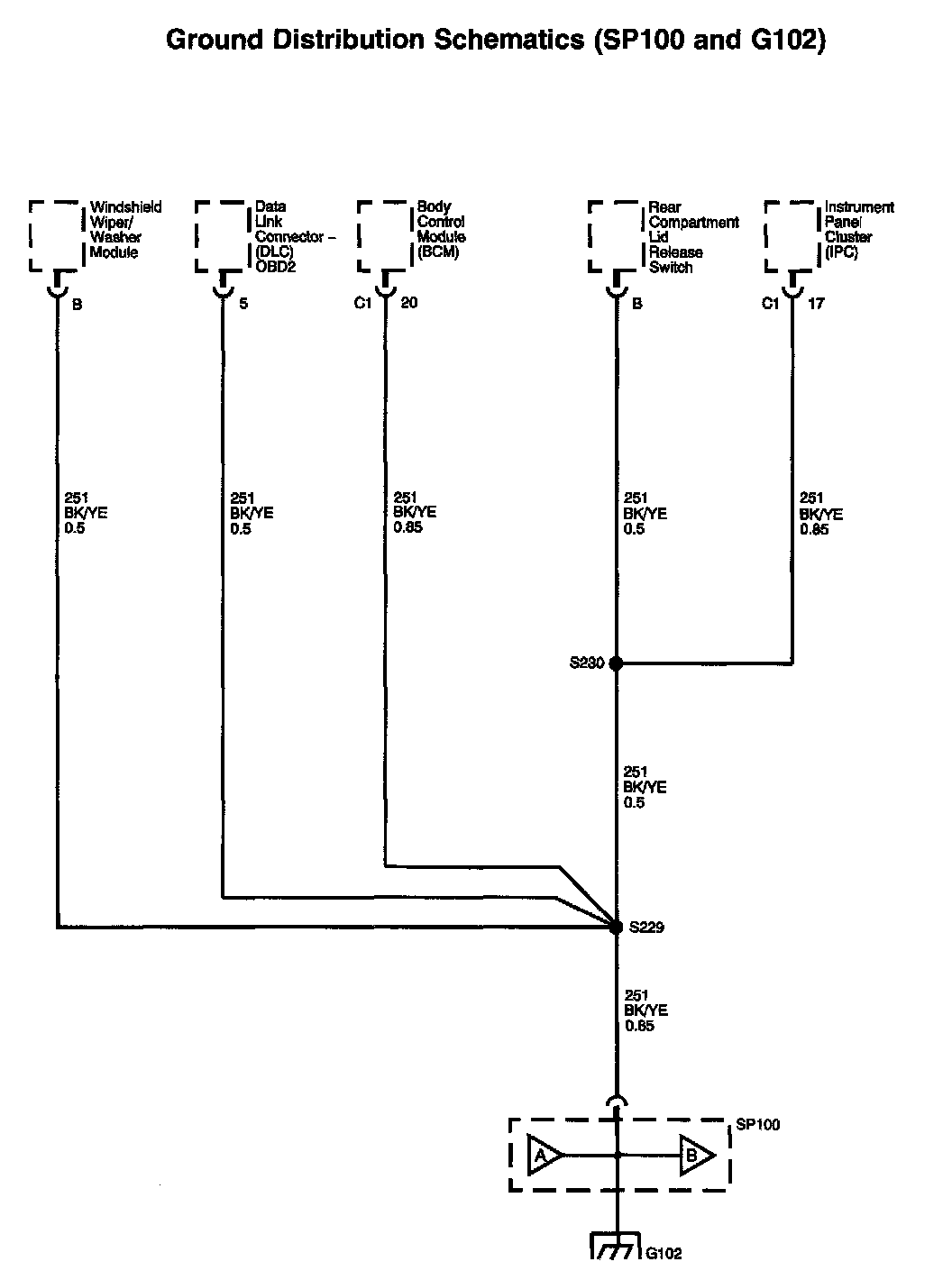

Ground Distribution Diagram 5:
