Battery Positive Cable Replacement

BATTERY POSITIVE CABLE REPLACEMENT

Removal Procedure





1. Remove the battery.
2. Remove the positive cable from the fuseblock:
2.1. Open the positive cable cap.
2.2. Remove the positive cable nut at the fuseblock.
2.3. Remove the positive cable from the stud.
3. Remove the positive cable cover from the cable.
4. Raise and suitably support the vehicle.

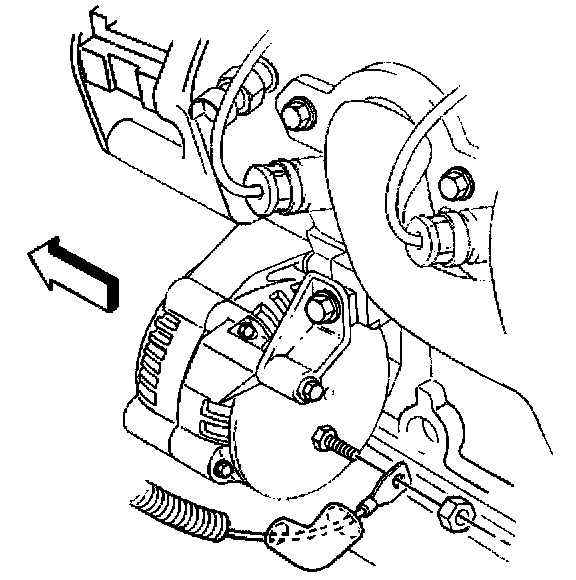

5. Remove the positive cable from the generator:
5.1. Slide the boot back along the cable.
5.2. Remove the positive cable nut at the generator.
5.3. Remove the positive cable from the stud.
6. Remove the positive cable from the starter solenoid:

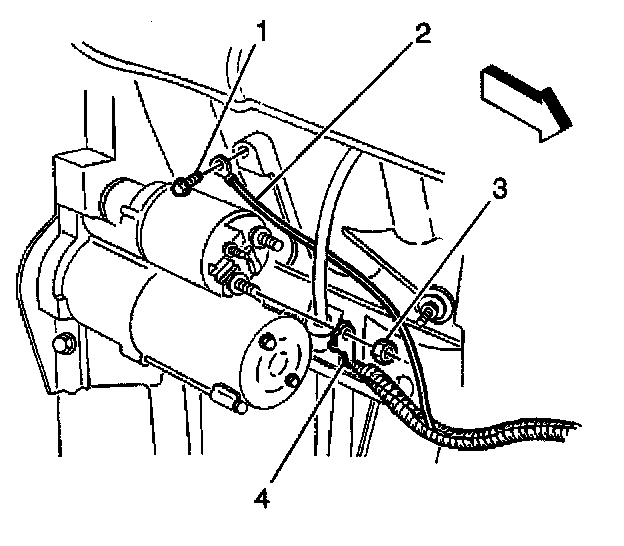

6.1. Remove the positive cable nut (3) at the starter solenoid.
6.2. Remove the positive cable from the harness conduit.

Installation Procedure
1. Install the positive cable to the harness conduit.

NOTICE: Refer to Fastener Notice in Service Precautions.

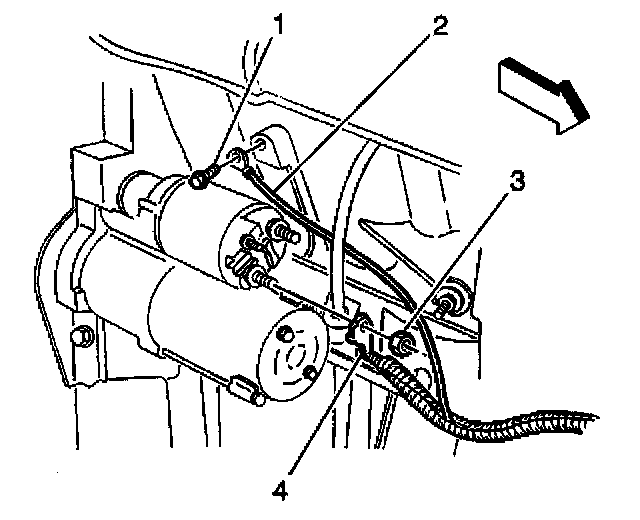

2. Install the positive cable nut (3) at the starter solenoid.

Tighten
Tighten the positive cable nut at the starter solenoid to 10 N.m (89 Ib in).

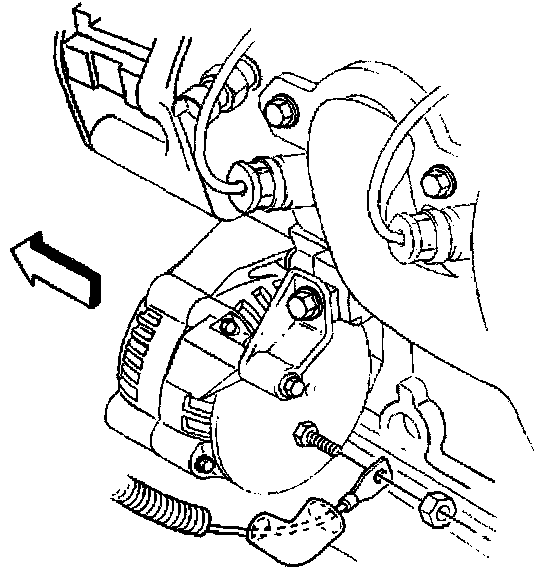

3. Install the positive cable to the generator:
3.1. Install the positive cable to the stud.
3.2. Install the positive cable nut at the generator.

Tighten
Tighten the positive cable nut at the generator to 10 N.m (89 Ib in).

3.3. Slide the boot over the generator stud.
4. Install the positive cable cover to the cable
5. Install the positive cable to the stud on the fuseblock:
5.1. Install the positive cable to the stud.
5.2. Install the positive cable nut at the fuseblock.

Tighten
Tighten the positive cable nut at the fuseblock to 14 N.m (10 Ib ft).

5.3. Close the positive cable cap.
6. Install the battery.
