Battery Tray Replacement

BATTERY TRAY REPLACEMENT

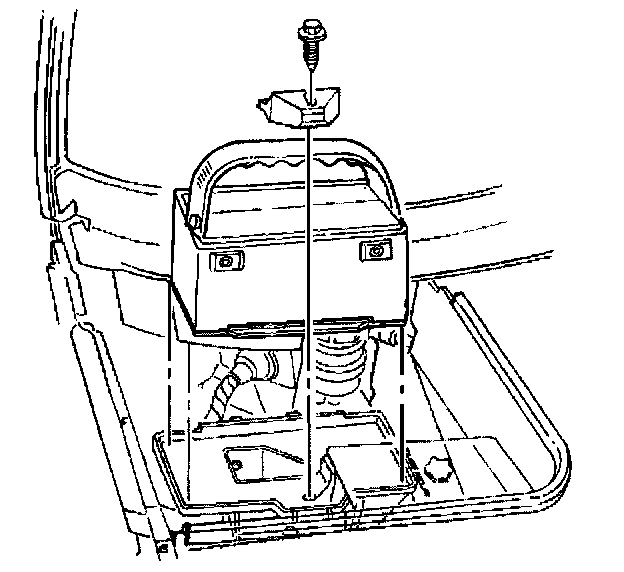

Removal Procedure

1. Remove the battery.
2. Remove the battery tray bolts.
3. Remove the battery tray.

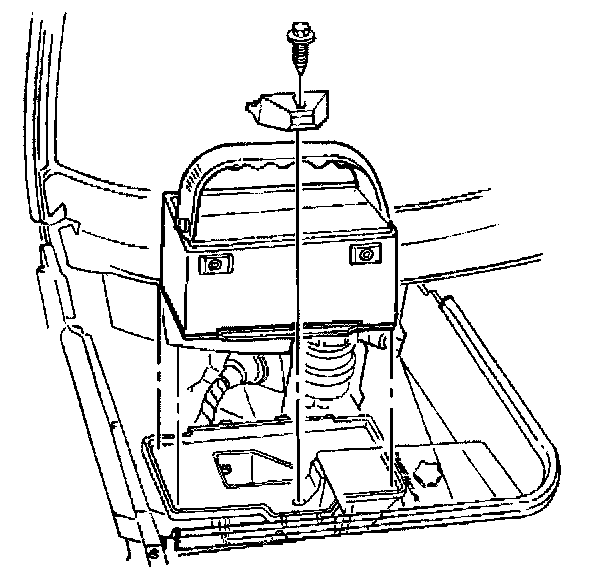

Installation Procedure

1. Install the battery tray.

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Install the battery tray bolts.

Tighten
Tighten the battery tray bolts to 28 N.m (21 Ib ft).

3. Install the battery.
