Charging System Test

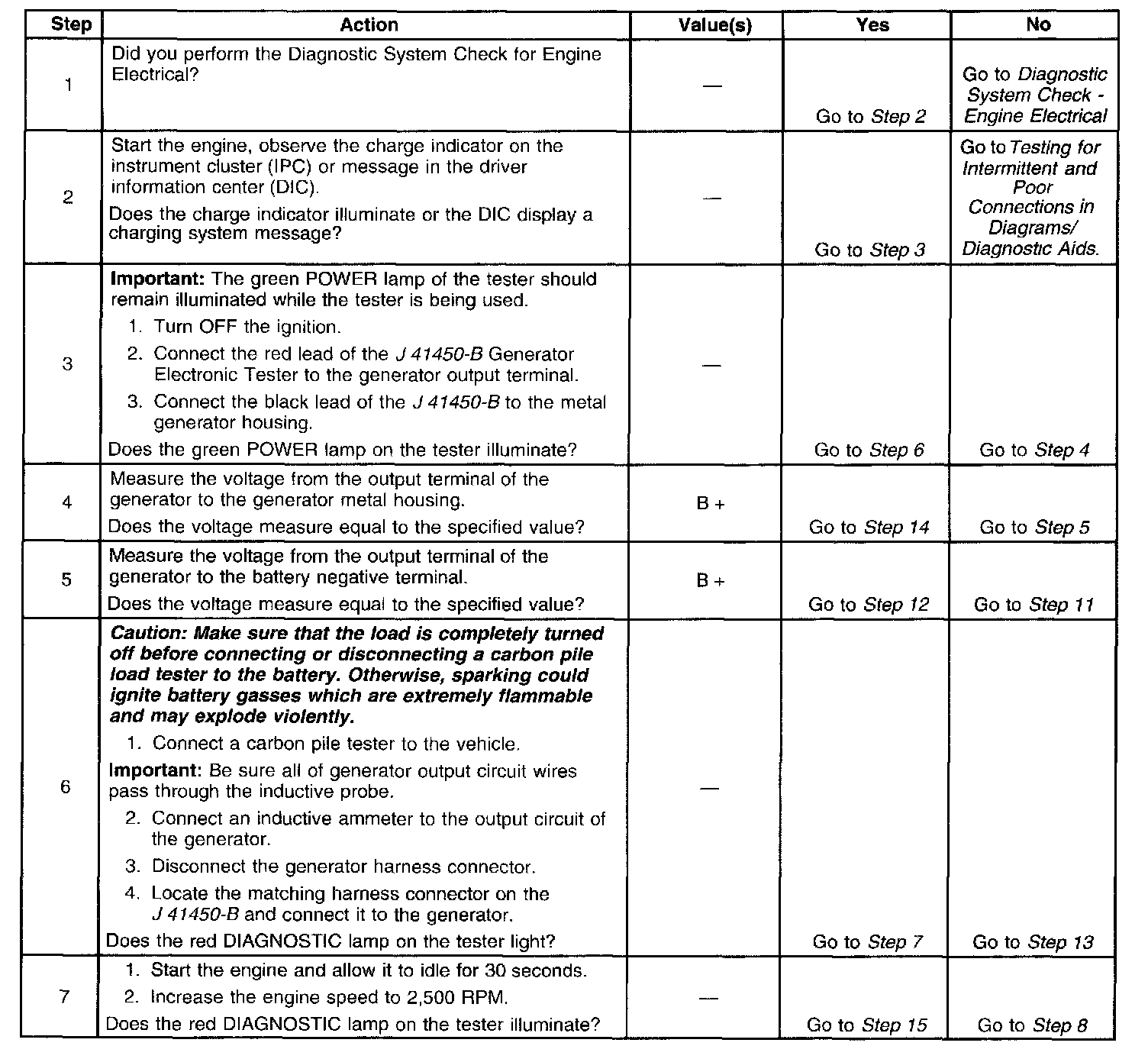

CHARGING SYSTEM TEST Test Description Step 1 - 7:

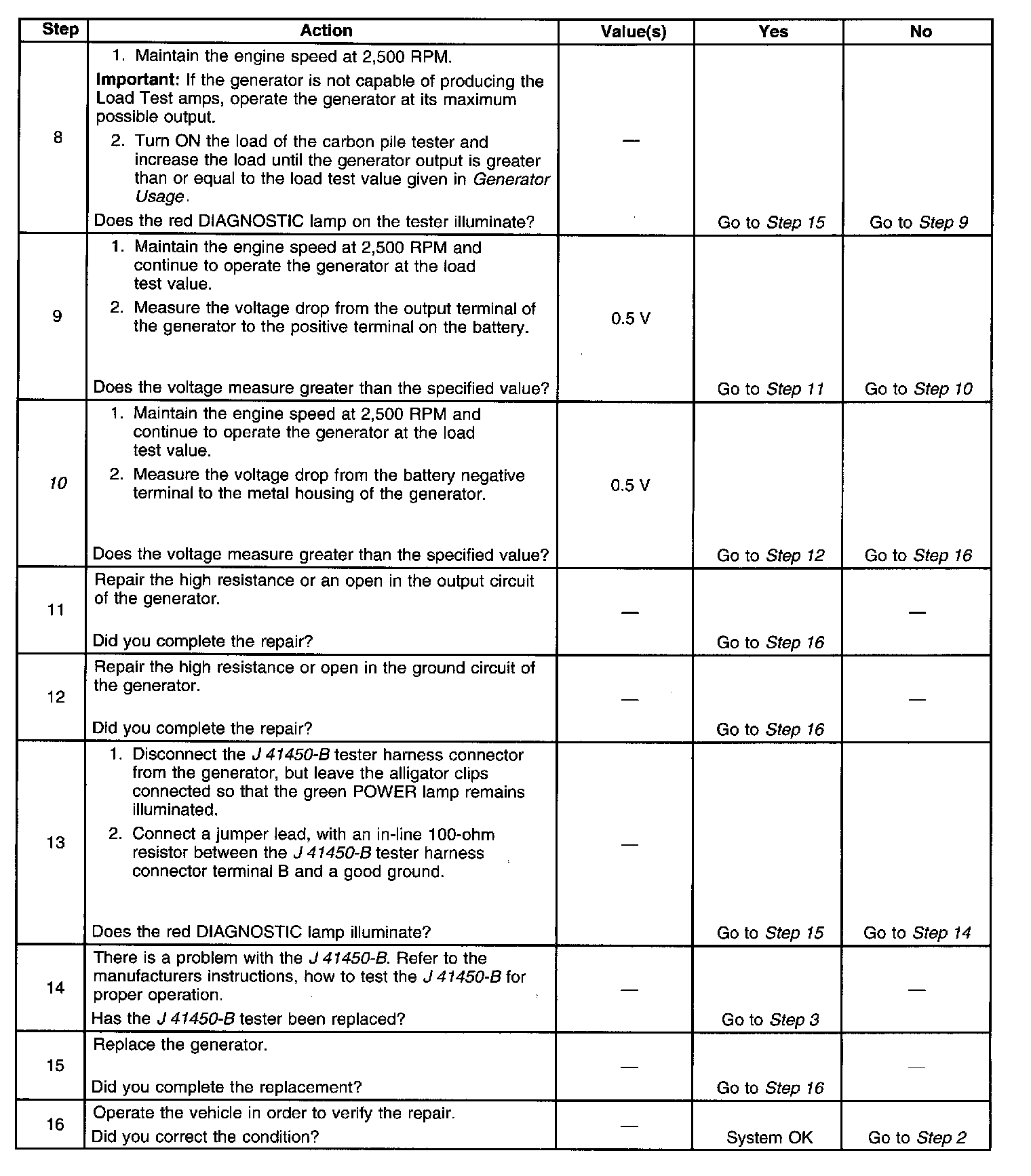

Step 8 - 16:
The step below refers to the test step on the diagnostic table.
10.
If the test has shown the generator to be OK, however the condition remains, test the PCM or its control circuit(s) to the generator.
